GE
DRAFT
V
OLUSON
™ P8/V
OLUSON
™P6
DIRECTION 5775469, R
EVISION
3
DRAFT
(J
ULY
19, 2018)
B
ASIC
S
ERVICE
M
ANUAL
Chapter 8 -
Replacement Procedures
8-51
Section 8-18
Replacement of OPIO BUTTON SET
8-18-1
Manpower
One person, 40 mi
nutes
8-18-2
Tools
Philips screwdriver
8-18-3
Removal Procedure
1.)
Unscrew 9 screws at the bottom of the keyboard b
ody.
Refer to the figures below.

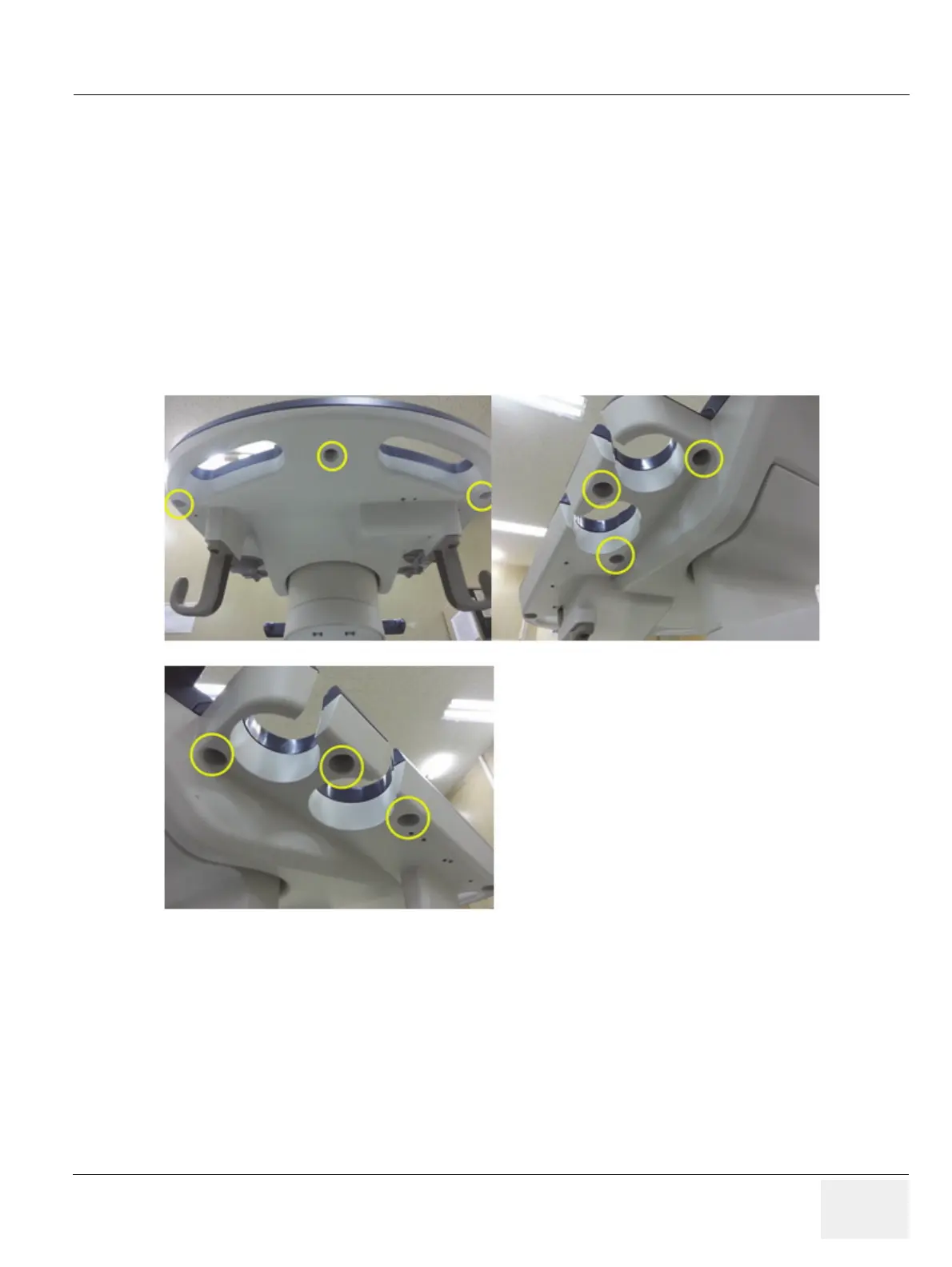

Figure 8-64 Unscrewing 9 scre
ws
412
414
