GE DRAFT VOLUSON™ P8/VOLUSON™P6
DIRECTION 5775469, R
EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-87
Section 8-25
Replacement of OPIO
8-25-1 Manpower
One person, 15 minutes
8-25-2 Tools
Philips screwdriver, Nipper, Allen Wrench
8-25-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-25-4 Removal Procedure
1.) Remove 2 RUBBER CAPs on SPEAKER COVER LEFT/RIGHT. Refer to the figure below.
2.) Unscrew 2 screws, and then remove SPEAKER Cover L/R. Refer to the figure below.

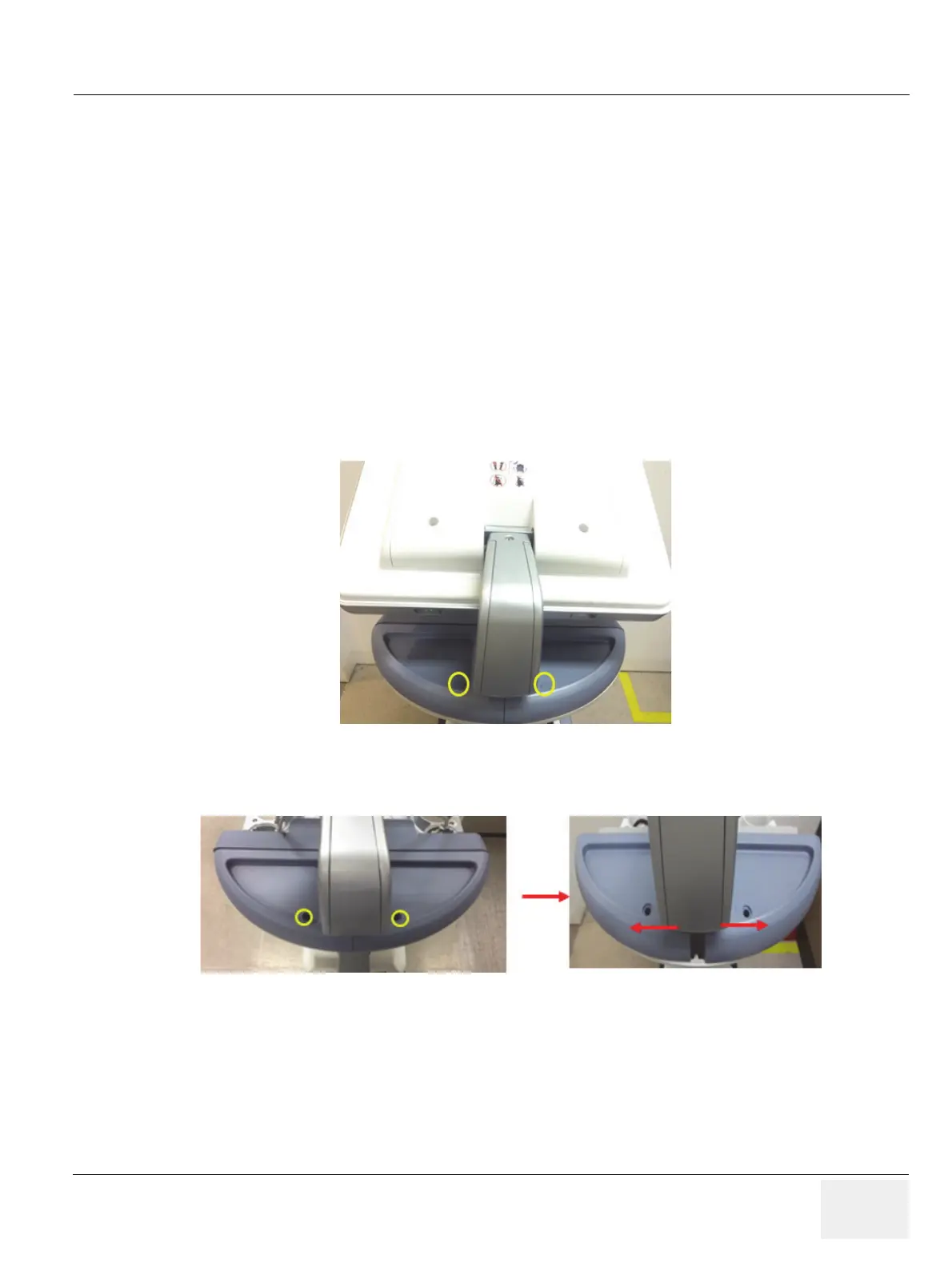

Figure 8-129 Removing 2 RUBBER CAPS on SPEAKER COVER LEFT/RIGHT
Figure 8-130 Unscrewing 2 screws to remove SPEAKER COVER L/R
To Next Page
