6 - Maintenance
104

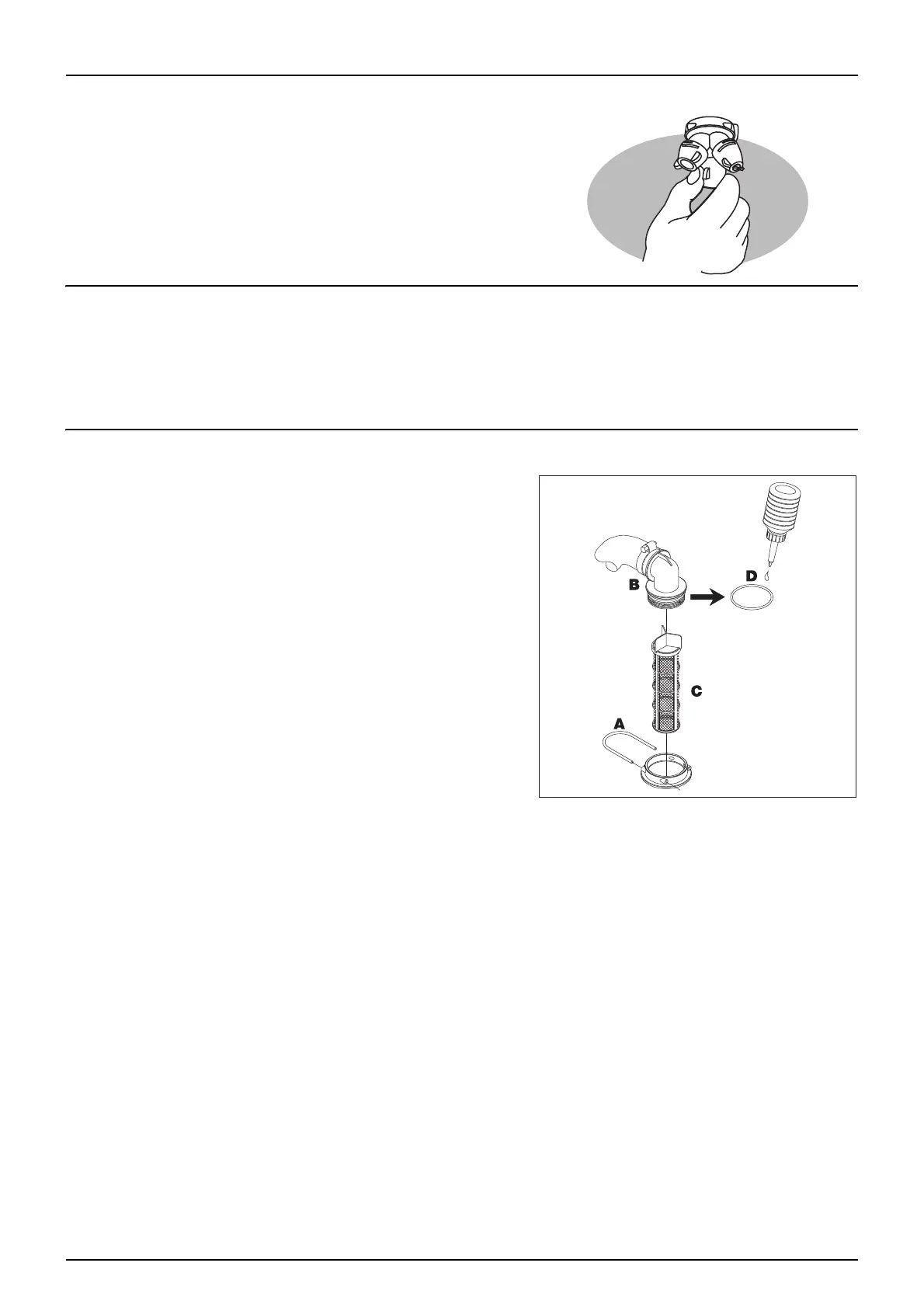

10 Hours Service - Nozzle Filters
The filters are located in the nozzle holder.
Check the filter condition and clean the filter.
10 Hours Service - Spraying Circuit
Fill with clean water and operate all functions.
Check for leaks using a higher spray pressure than normal.
Check nozzle spray patterns visually using clean water.
10 Hours Service - Suction Filter
At Service:
1. Pull out the steel clamp (A).
2. Lift the suction hose fitting (B) away from filter housing.
3. Filter guide and filter (C) can now be removed and cleaned.
To Reassemble:
4. Press the guide onto the filter end.
5. Place the filter into the housing with the guide facing upwards.
6. Ensure the O-ring (D) on the hose fitting is in good condition and
lubricated.
7. Refit the suction hose (B) and steel clamp (A).
±
WARNING! Always wear protective clothing and gloves before
servicing the filter!
