6 - Maintenance
117

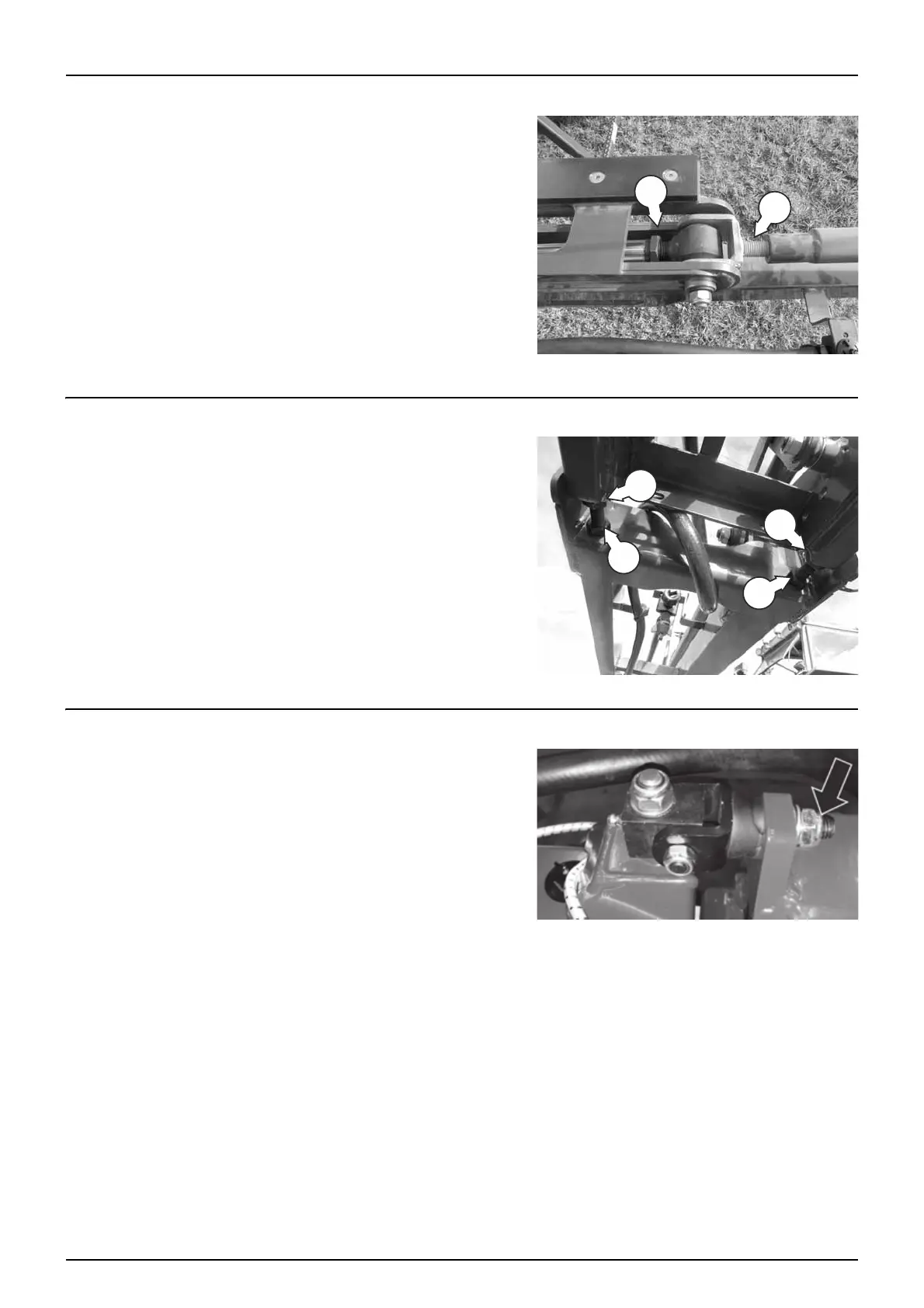

Inner boom folding/unfolding adjustment
To make sure the boom is 100% in line for correct folding / unfolding.
The rod marked (G) can be adjusted in combination with the end of
piston (F).
Vertical adjustment of first outer section
Adjust the outer section to be in level with the inner section, by
adjusting bolt (A).
To adjust it, undo both lock nuts (A), then turn both bolt (B) equally until
section is straight and in level. When adjusted re-tighten both lock nuts
(A).
Vertical adjustment of breakaway
Adjust the breakaway to be in level with the boom or a little higher, by
adjusting screw, do never let it be lower than the main boom, as it
increased risk of interfering with the ground during the spray job.
