Liquid System
General Info
Please refer to the Spray Technique book for instructions on the use of filters, nozzles etc., and their combination in use with
specific spraying applications.
Quick Reference - Operation

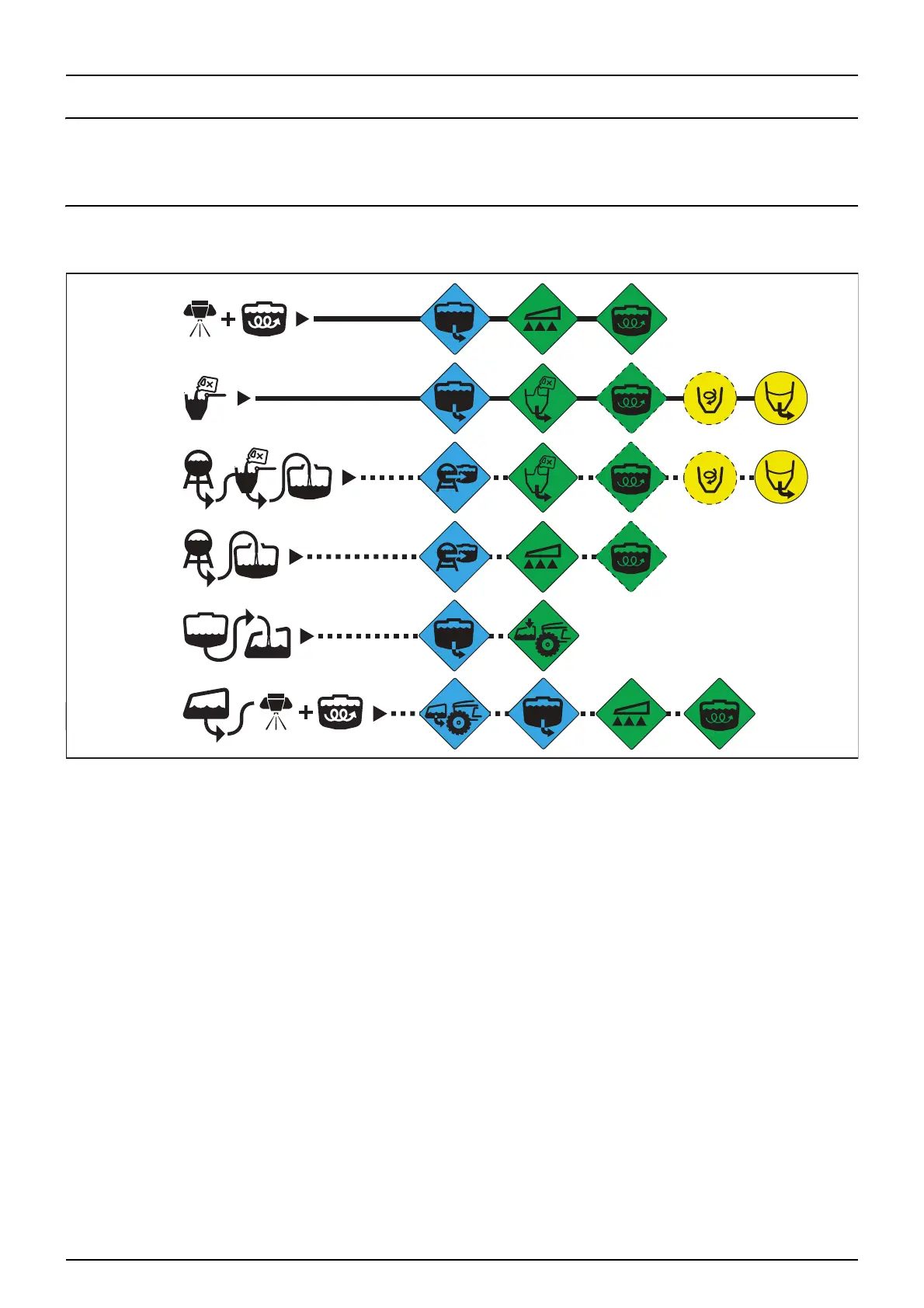

In the following diagram, the handle positions for different options are illustrated.
÷
N
O
T
E! Dashed lines and valve symbols, indicates optional equipment and functions.
1. Spraying with suction from the MainTank and using agitation in the MainTank.
2. Filling chemicals using the TurboFiller with suction from the MainTank. Using agitation is optional.
3. Filling chemicals using the TurboFiller, with suction from the external filling device. Using agitation is optional.
4. Filling of the MainTank, with suction from the external filling device.
5. Filling of the FrontTank with suction from the MainTank.
6. Spraying with suction from the FrontTank and using agitation in the MainTank.
÷
NOTE! In order to spray using the FrontTank (6), the operator needs to push the (Suction from FrontTank) button on
the FrontTank controller box to activate the selector valve for FrontTank suction, this prevents unintended suction
from the MainTank.
÷
NOTE! When spraying using the FrontTank its is important to keep an eye on the fluid level in the MainTank as the
return flow will end in the MainTank. See the FrontTank booklet for further information.
