3 - Description
58
Tank Level Indicator
MainTank

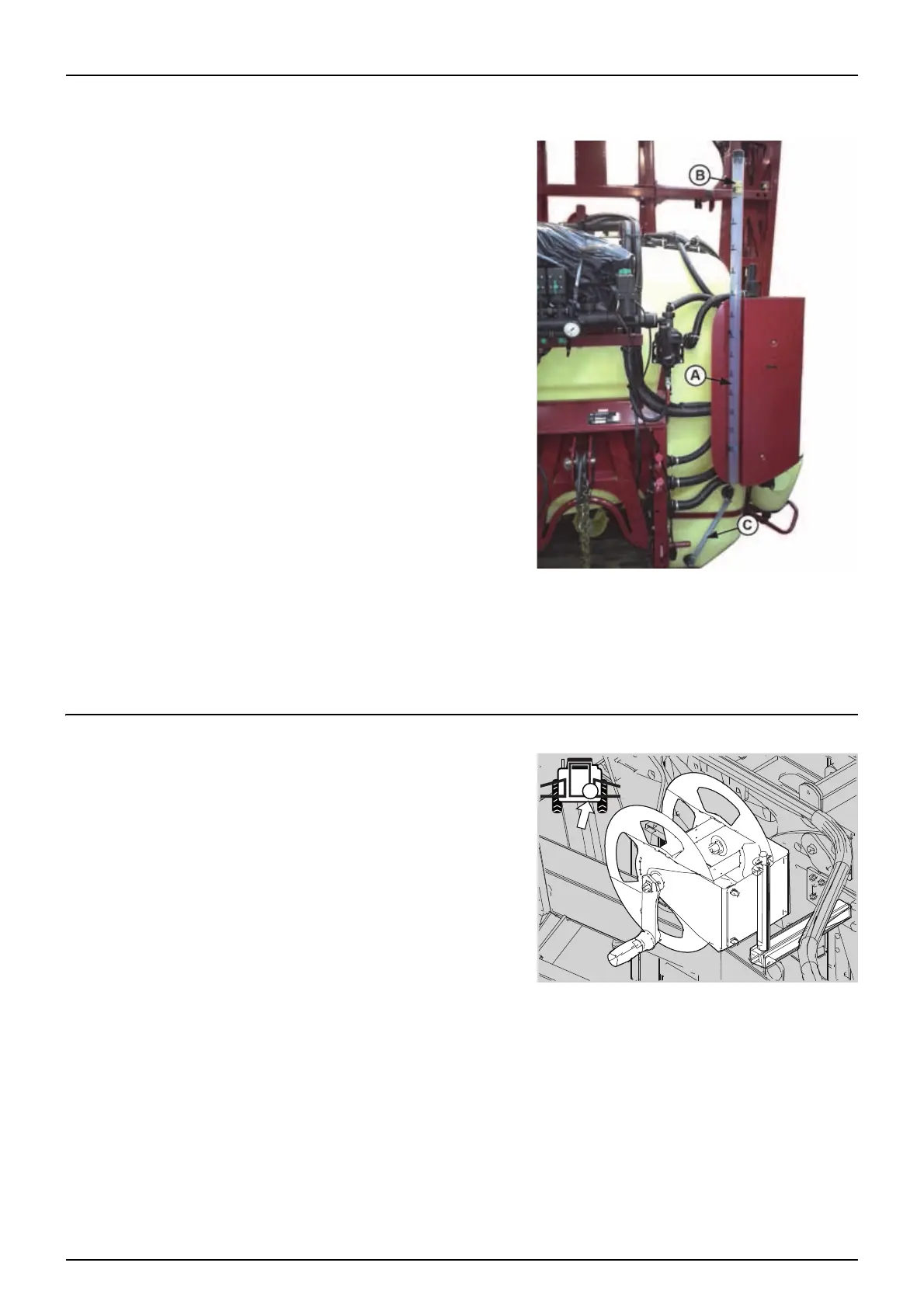

The actual liquid level in the MainTank can be observed on the MainTank
level indicator (A), where a plug (B) inside the tube follows the liquid
level, as it is connected to a float inside the tank.
The scale is displayed in litres - multiply by 100 for the reading.
Example: The plug floats at 10 on the scale; this means 1000 litres left in
the tank.
μ
ATTENTION! The level indicator is only a guidance for the liquid
level in the tank.
For the most accurate reading, park the sprayer on level ground
with the sprayer chassis in a horizontal position.
The total deviation of accuracy for the level for each scale mark or
readout value is:
• ± 15% for volumes up to 10% of the nominal tank volume.
• ± 7.5% for volumes between 10 and 20% of the nominal tank
volume.
• ± 5% for volumes above 20% of the nominal tank volume.
RinseTank
The actual water level in the RinseTank can be observed in the tube (C).
A yellow ball floating inside the tube indicates the water level.
• The ball is at the top of the tube: A full tank.
• The ball is at the bottom of the tube: An empty tank.
External Cleaning Device
This equipment comprises a hose reel and a spray gun for cleaning the
complete sprayer externally in the field with clean water, using a spray
gun. The External Cleaning Device is located on the boom centre
section at the back.
€
DANGER! The cleaning device produces a water jet with high
pressure. Incorrect use may result in injuries!
When using the cleaning device, follow these rules:
• Wear personal protective equipment on your body, feet, hands
and head. Particles and chemical residues can hit you during the
cleaning.
• Any helpers must also wear protective equipment. Keep bystanders at a safe distance.
• Never point the water jet at people, animals, electrical installations or other sensitive objects.
• Never use the water jet to clean clothing or footwear.
