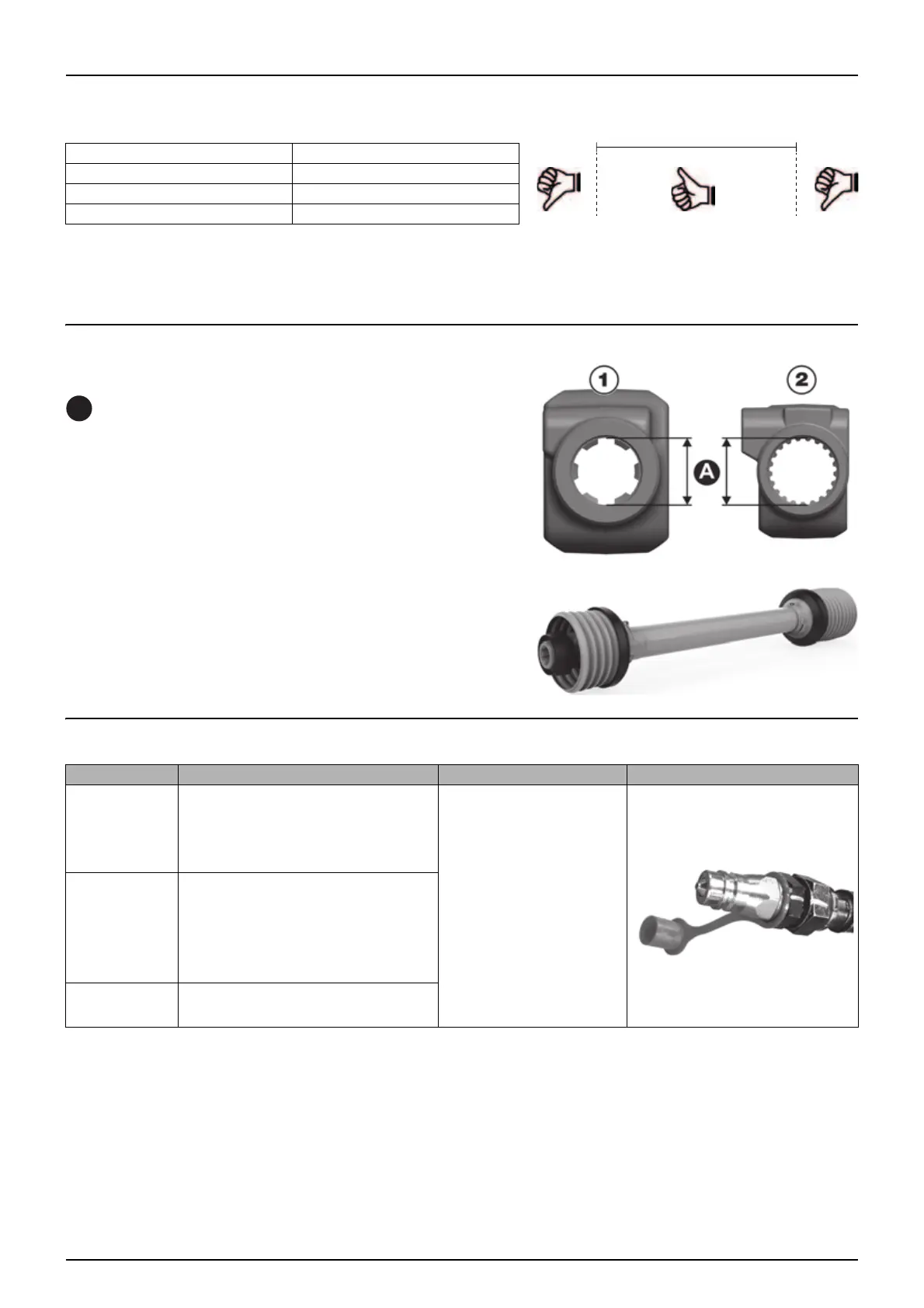

8 - Technical Specifications
130
Voltage
The sprayer is designed for the following voltage only:
* The blade fuses usually allow up to 50 A for a few seconds before blowing.
€
DANGER! If the tolerances for voltage are exceeded, the electrical system can fail. Risk of fire. Risk of defect or
malfunctioning components.
Transmission Shaft
Options at the tractor hitch point:
1. Yoke with 6 splines.
Normally used for pump working speed = 540 RPM.
2. Yoke with 21 splines.
Normally used for pump working speed = 1000 RPM.
The tractor must follow the international standard ISO 500-1:2014
regarding general specifications, safety requirements, dimensions for
master shield and clearance zone for rear-mounted power take-off types
1, 2, 3 and 4 on agricultural tractors.
Hydraulic Couplings
Voltage 12 V DC.
Tolerance for voltage - 1.5 V / + 3.0 V
Current from tractor 40 A peak
Blade fuses on the sprayer 25 A *
Dimension: 1 3/8” (35 mm)
Coupling Size Sprayer Equipment International Standard Coupling Type
3/8”
Movement of spray boom, Y-type (tractor has
separate outlets for each movement).
ISO 7241:2014
regarding dimensions and
requirements of quick-action
couplings for hydraulic fluid power
1/2”
Movement of spray boom, Z-type (tractor has one
outlet for all boom movements, which are
controlled separately by electronics)
1/4” Load sensing (LS)
