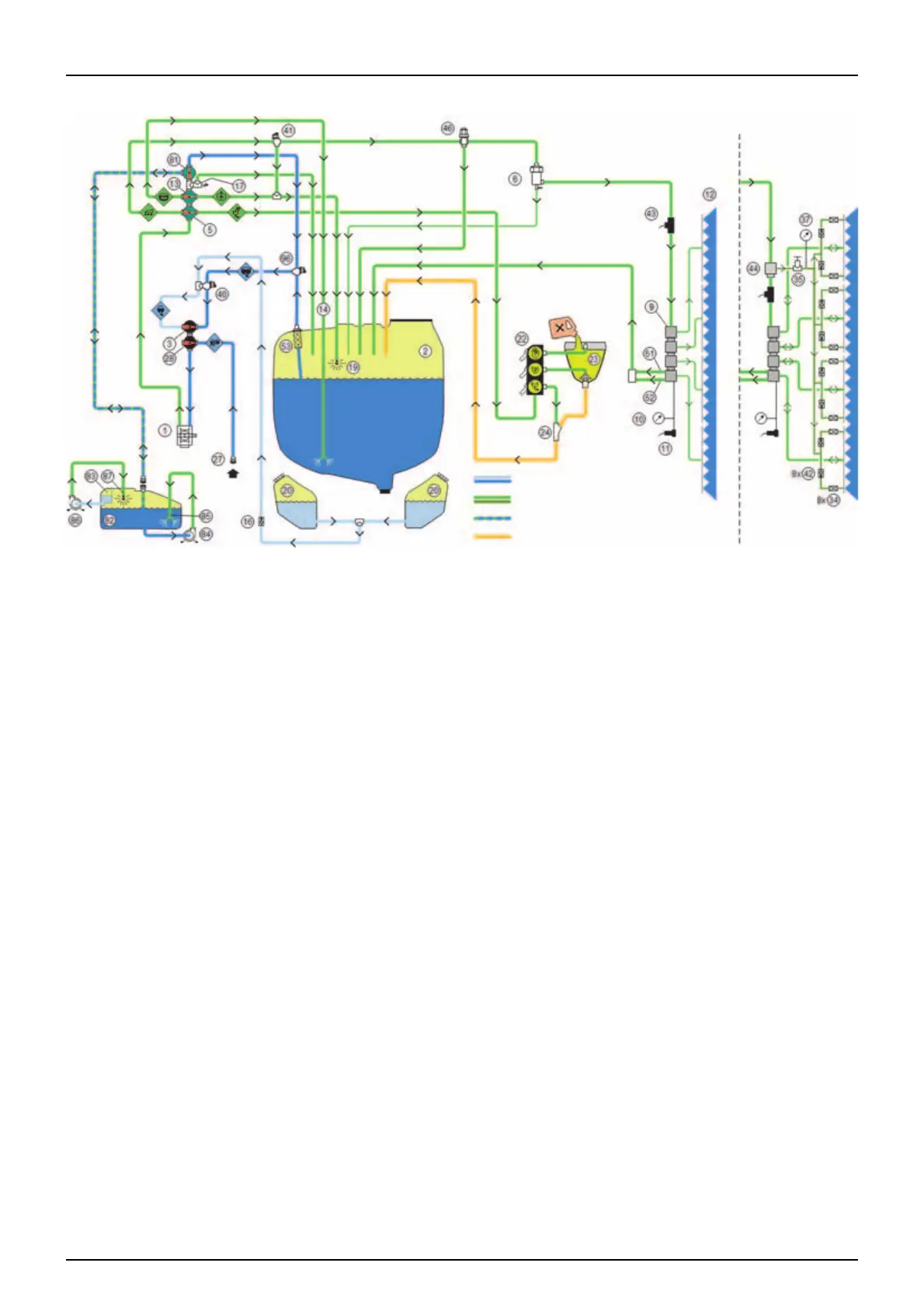

Diagram - Liquid System with Options
1. Main Pump
2. MainTank
3. Suction Valve
5. Pressure Valve
6. Self-Cleaning Filter
9. Distribution Valves
10. Pressure Gauge
11. Pressure Sensor
12. Spray Boom
13. Agitation Valve
14. Agitation Nozzles
16. One-Way Valve
17. Safety Valve
19. Rinsing Nozzle
20. RinseTank
22. Valve Block for TurboFiller
23. TurboFiller
24. Ejector for TurboFiller
27. Filling Coupler
28. Filling Valve
34. Restrictor
35. Pressure Control Valve
37. Pressure Gauge
40. Dilution Valve for Suction
41. Dilution Valve for Rinsing
42. One-Way Valve
43. Flowmeter
44. BoomPrime Valve
46. Pressure Regulation
51. Return - Pressure Drop
52. Return - Pressure Equalization
53. Suction Filter
81. Filling Valve for FrontTank
82. FrontTank
83. Integrated RinseTank in FrontTank
84. Agitation Pump for FrontTank
85. Agitation Nozzles for FrontTank
86. Rinse Pump for FrontTank
87. Rinsing Nozzle for FrontTank
Suction line
Pressure line
BoomPrime system
Pressure/Suction line
Pressure/Chemical line
