5 - Operation
77
Spray Boom
Safety Info
Keep the spray boom in folded position while driving outside the field. Park the sprayer and tractor on level ground before
using the folding/unfolding functions.
Failure to comply will damage the boom and cause dangerous situations to people and the surroundings.
€
DANGER! Before unfolding the boom it is important to connect the sprayer to the tractor’s hitch point to prevent
overbalancing of the sprayer. Activate the tractor’s handbrake.
€
DANGER! When folding or unfolding the boom, make sure that no persons or objects are within the operating area
of the boom.
€

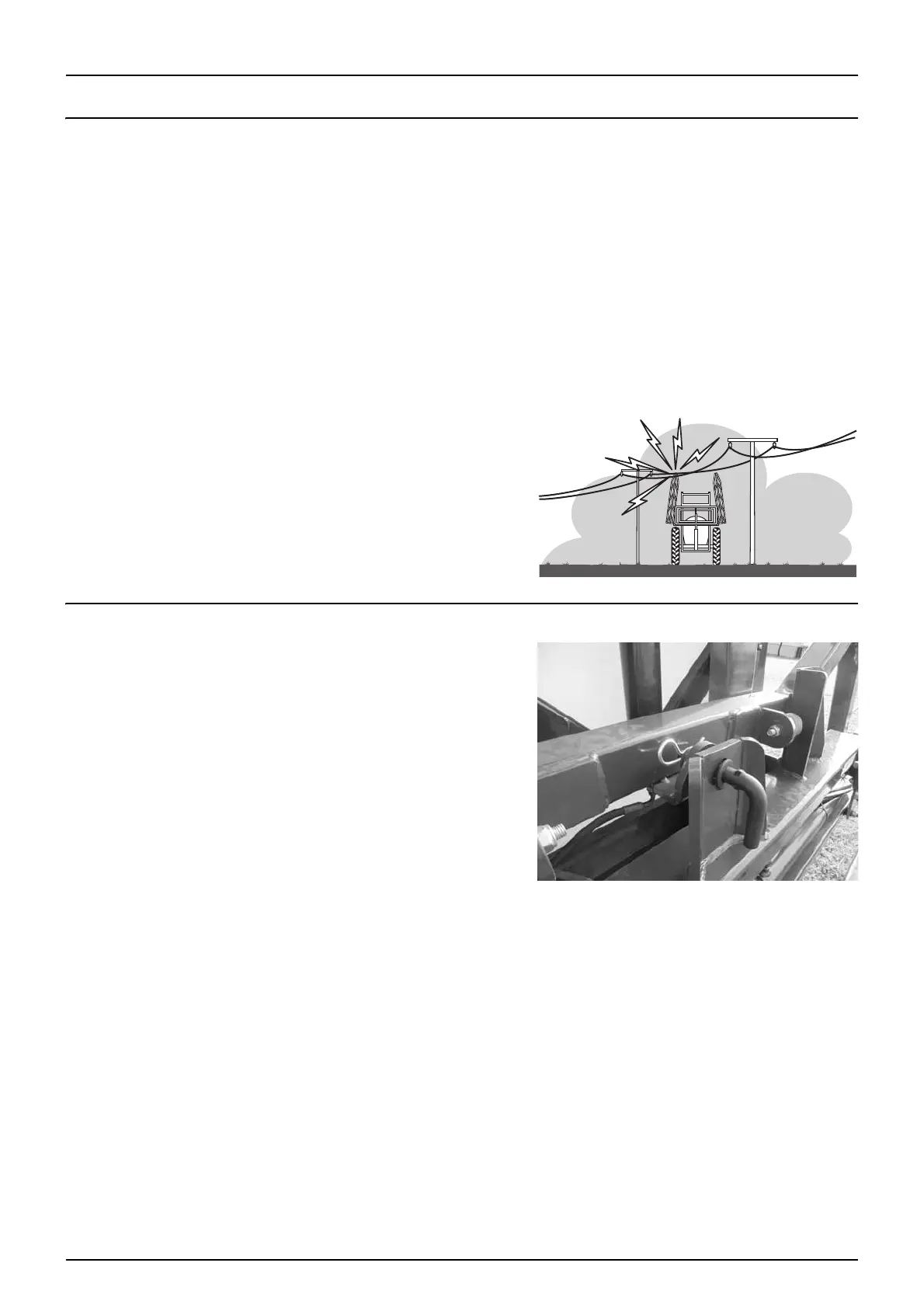

DANGER! Always follow the guidelines listed below when driving in areas with overhead power lines:
Keep from using the folding/unfolding functions in areas with overhead
power lines. Unintended boom movements may cause contact with
overhead power lines, causing a risk of fatal accidents.
μ
ATTENTION! A label (HARDI item no. 978448) follows the sprayer.
This label must be placed in the cabin visible from the operator’s
seat.
Lock Bolt
Both versions Y and Z hold a lock bolt in the centre section.
• On Y version use it when individual folding is required.
• On Z version, remove it permanently, the slant function is used
when folding individual left or right.
μ
ATTENTION! The lock should always be engaged during
transport.
