3 - Description
52

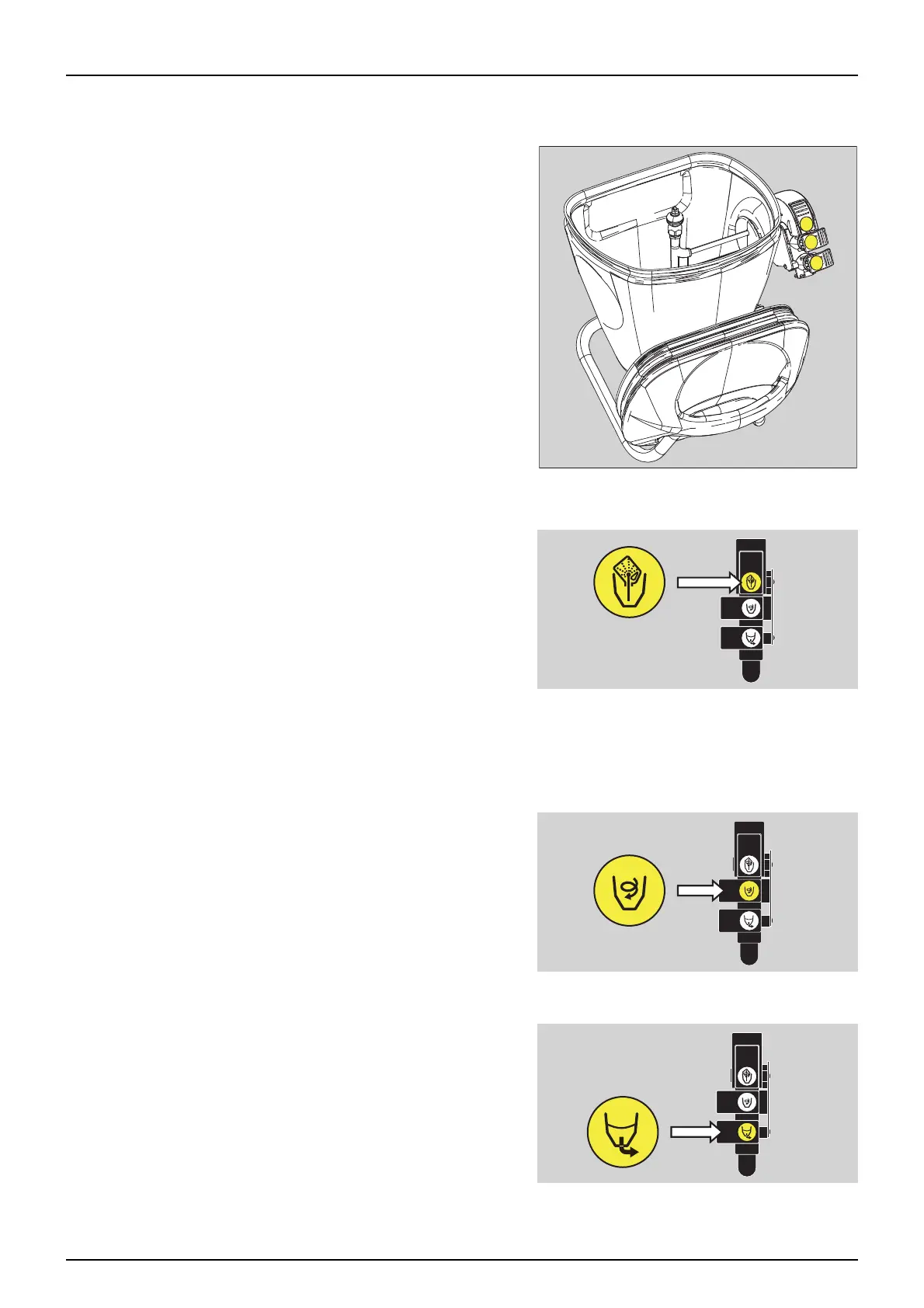

TurboFiller
The TurboFiller is where you add the chemicals to be mixed with water in the MainTank.
Capacity: approximately 25 litres.
By operating the three levers on the side of the TurboFiller, you can do
the following:
• Stir up the added chemicals with water from the sprayer.
• Transfer the mix to the main tank.
• Clean your chemical container or the TurboFiller inside by using
the flushing nozzle.
• A spray gun is also available for further cleaning.
Rinsing of Chemical Containers
The upper lever is used for two purposes.
1. When the TurboFiller lid is open:
For rinsing empty containers. Place the container over the rotating
flushing nozzle in the middle of the TurboFiller to rinse the inside
of the container.
2. When the TurboFiller lid is closed:
Use the lever to rinse the hopper, when the filling of chemicals is
completed.
€
DANGER! Do not activate this lever, unless the multi-hole nozzle is covered by a container, as spray liquid may
otherwise hit the operator! Risk of injuries and spillage on the ground.
TurboDeflector Valve
This TurboDeflector valve activates the vortex flushing of the TurboFiller.
Lift the lever to lock it in open position for continuous liquid rotation in
the hopper.
TurboFiller Suction Valve
The valve is used simultaneously with the TurboFiller. The valve has 2
settings: Continuously open or spring-loaded normally closed.
Open the valve by lifting the lever up, when chemicals are to be filled
into the TurboFiller and transferred to the MainTank.
