Nozzle Holder Assembly
If leaks of fluid occur in the nozzle holders on the spray boom, it is necessary to check the sealing. The nozzle holder need
to be disassembled to locate the gaskets.
Occasional maintenance of the gaskets and nozzle holders is recommended.
Poor sealing are usually caused by:
• Missing O-rings.
• Damaged or incorrectly seated O-rings.
• Dry or deformed O-rings.
• Foreign objects.
In Case of Leaks
Disassemble the nozzle holder and check condition of the O-rings. Replace if damaged or cracked.
Disassemble Nozzle Holders

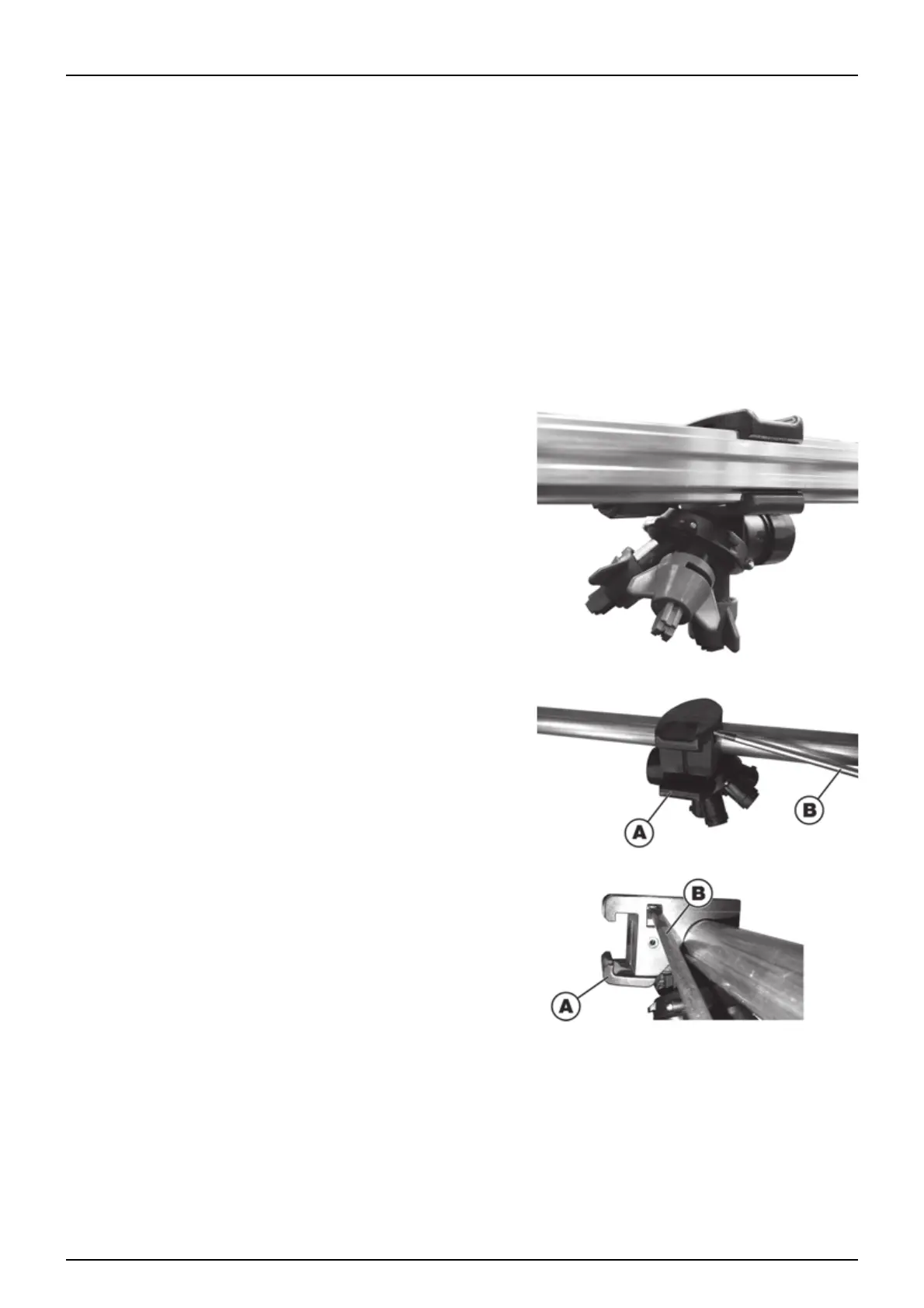

1. Example of an assembled nozzle holder, fitted to the spray boom.
2. The black plastic parts are snapped together. To disassemble,
insert a flat screwdriver (B) and press, until the locking piece (A)
snaps out.
To Next Page
