3 - Description
49
Valves and Symbols
The valves of the manifold system are distinguished by coloured
identification on the function labels. Symbols corresponding to every
possible function of use are located on the discs for easy identification
and operation. The modular manifold system facilitates the addition of
optional extras on both pressure side and suction side.
A function is activated by turning the handle towards the desired
function.

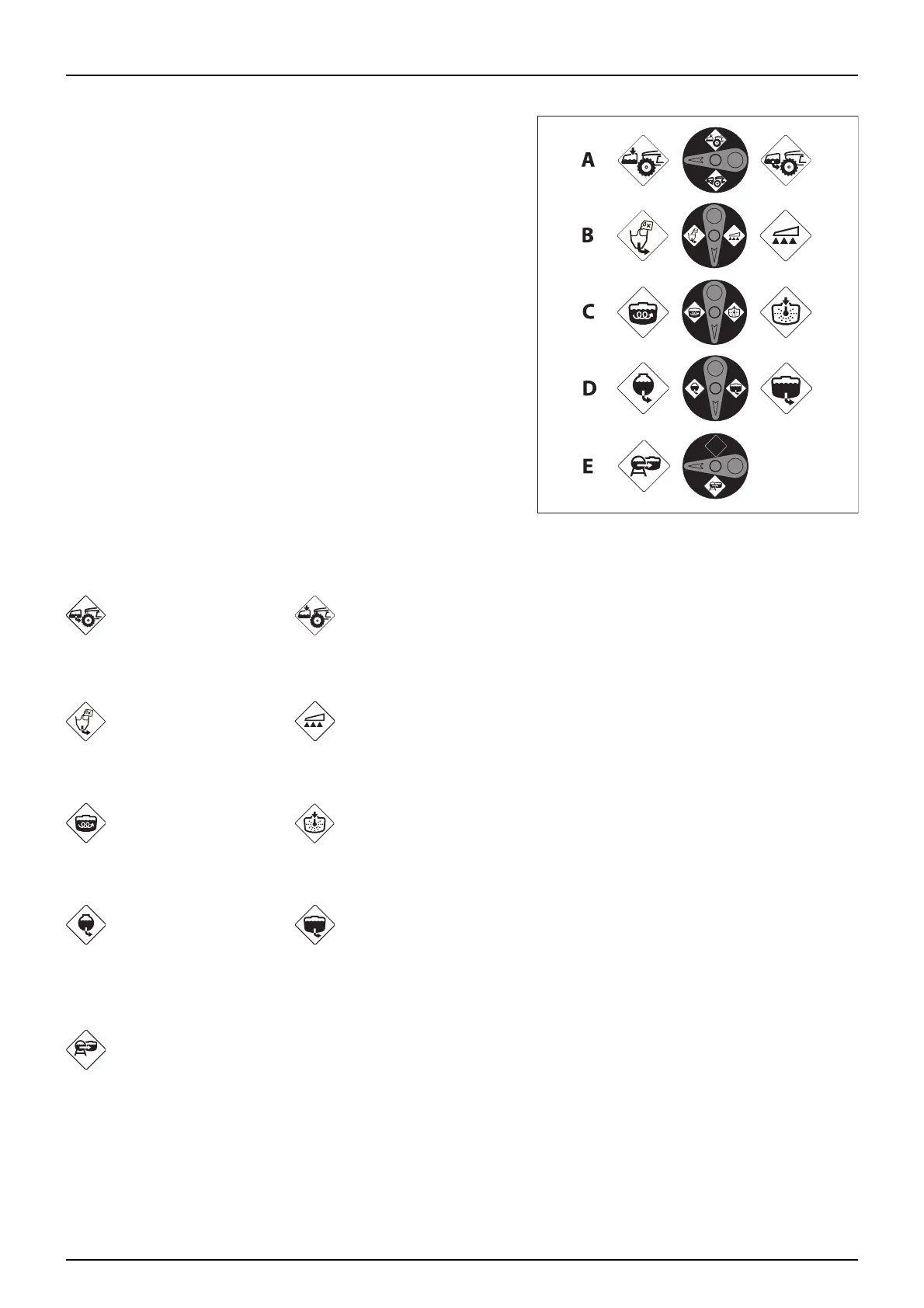

The valves are:
A. FrontTank Valve (Optional) (Green disk)
B. Pressure Valve (Green disk)
C. Agitation Valve (Green disk)
D. Suction Valve (Black disk)
E. External Filling Valve (Optional) (Black disk)
A - FrontTank Valve (Optional) (Blue/Green symbol)
With this valve you can select between filling the FrontTank or suction to MainTank.
A - Pressure valve (Green symbol)
With this valve you can select where to direct pressurized liquid.
B - Agitation valve (Green symbol)
With this valve you can select between agitation in the tank or tank cleaning using the rinsing nozzle.
D - Suction valve (Blue symbol)
With this valve you can select suction from the MainTank (for spraying) or from the RinseTank.
E - External Filling Device valve (Optional) (Blue symbol)
This valve is used, when filling from an external tank or reservoir. Activating the valve starts/stops the filling process. Note
that the suction valve must be closed for maximum filling capacity.
μ
ATTENTION! If a valve is too tight to operate - or to loose (= liquid leakage), the valve needs to be serviced. Please see
the section ‘Maintenance’ for further information.
FrontTank filling Suction from the FrontTank
Filling the MainTank from
the TurboFiller
Spraying
Adjustable agitation Tank rinsing nozzle
Suction from the RinseTank Suction from the MainTank
Suction from an external tank
