4 - Sprayer Setup
69
Electrical Connections

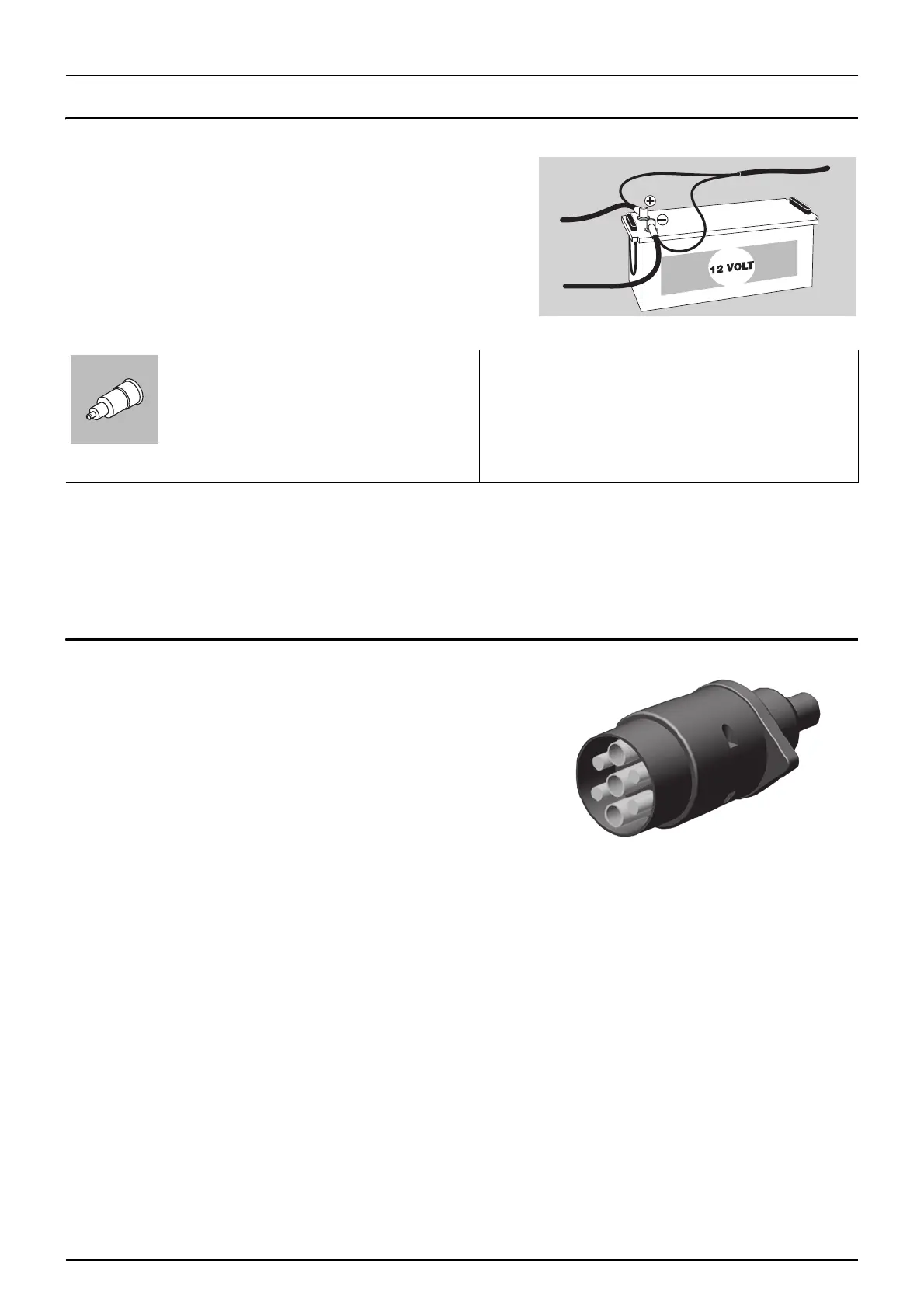

Power Supply
The power requirement is 12 V DC. Always note the polarity!
For proper function of the electric equipment for the sprayer, the tractor
must have the following sizes of electric wires and fuses installed.
÷
NOTE! The delivered power connectors follow the standard of most modern tractors. If you have a tractor with
another power connector, it is necessary to disassemble the connector and fit it to the actual sprayer connector.
Contact your HARDI dealer.
÷
NOTE! The delivered connectors may vary on the sprayer, depending on its equipment and scope of supply.
Road Safety Kit
If rear lights are installed, connect the plug for rear lights to the tractor’s
7-pin socket and check the function of rear lights, stop lights, side lights
and direction indicators on both sides before driving.
The wiring is in accordance with ISO 1724. See the chapter “Technical
Specifications” in this Instruction Book.
μ
ATTENTION! Turn OFF all work lights when driving on public
roads!
SprayBox Connector, 1-pin Plug
The unit requires:
Wire 2.5 mm
2
. Fuse 10 amps.
Hydraulic control unit requires:
Wire 4.0 mm
2
. Fuse 16 amps.
Tractor must follow ISO 4165.
