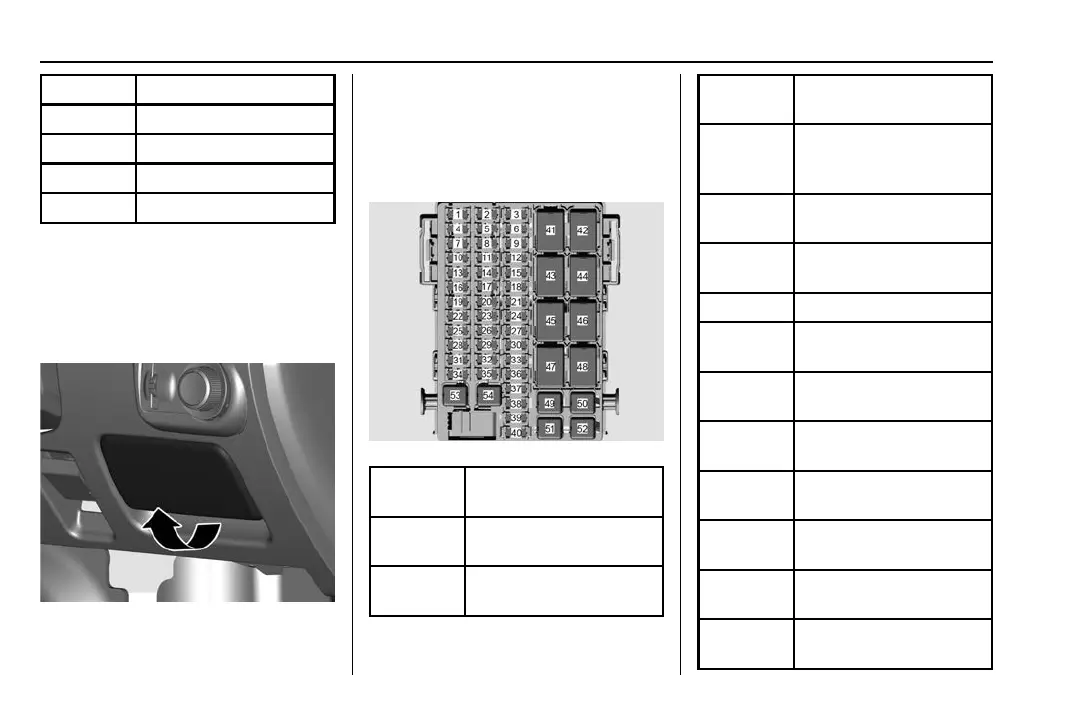

254 Vehicle Care
Relays Usage
RLY14 Not Used (Diesel)
RLY15 Not Used
RLY18 Run Crank
RLY19 Fuel Pump (Diesel)
Instrument Panel Fuse
Block
The fuse box is behind the
instrument panel cap.
Remove the instrument panel cap in
the direction of the arrow.
Reinstall the cap in reverse order.
Not all fuse box descriptions in this
manual may apply to your vehicle.
When inspecting the fuse box, refer
to the fuse box label.
Mini
Fuses Usage
1
20A – Body Control
Module (6)
3
20A – Cigarette
Lighter (if available)
Mini
Fuses Usage
6
20A – Front and Rear
Power Outlets (if
available)
7
30A – Body Control
Module (8)
10
20A – Radio (if
available)
11 2A – Ignition Switch
12
15A - Side Blind Zone
(SBZ) (If available)
13
15A – Body Control
Module (3)
14
10A – Front A/C
Control Module
15
15A – Seat Heated (If
available)
16
15A – Body Control
Module (1)
17
30A – Front Door
Power Window Switch
18
10A – Rear A/C
Blower
