Honda NT700V Deauville Service Manual

MAINTENANCE

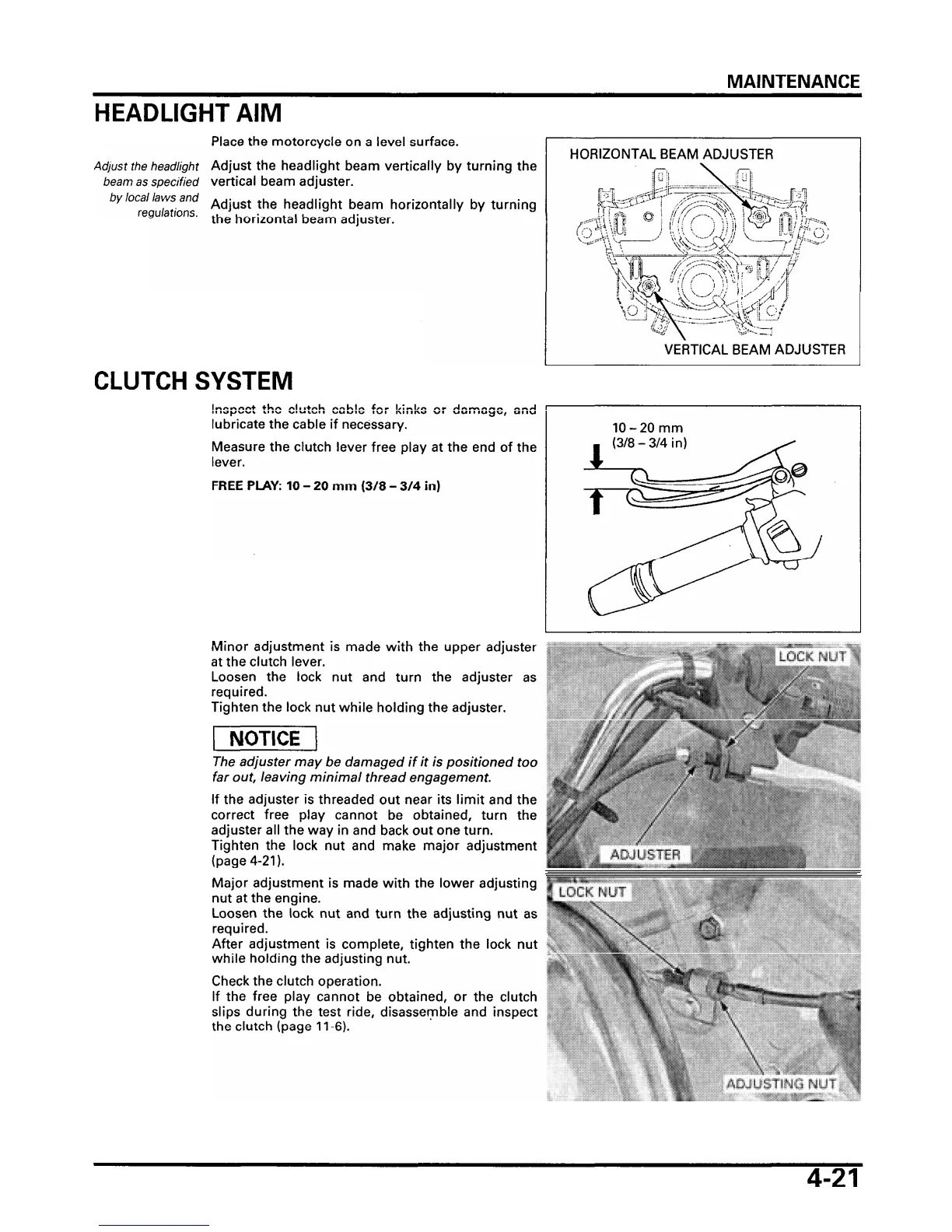

HEADLIGHT AIM
Ppe.
Adlust the headlight Adjust the headlight beam vertically by turning the
beam as specified vertical beam adjuster.
bylocal'aws and Adjust the headlight beam horizontally by turning
regulations.
the horizontal beam adjuster.
HORIZONTAL BEAM ADJUSTER
CLUTCH SYSTEM
I
lubricate the cable if necessary.
10 - 20 mm
Measure the clutch lever free play at the end of the
lever.
FREE PLAY: 10 - 20 mm (318 - 314 in)
at the clutch lever.
Loosen the lock nut and turn the adjuster as
required.
Tighten the lock nut while holding the adjuster.
The adjuster may be damaged
if it is positioned too
far out, leaving minimal thread engagement.
If the adjuster is threaded out near its limit and the
correct free play cannot be obtained, turn the
adjuster all the way in and back out one turn.
Tighten the lock nut and make major adjustment
(page
4-21 ).
Major adjustment is made with the lower adjusting
nut at the engine.
Loosen the lock nut and turn the adjusting nut as
reauired.
~fter adjustment is complete, tighten the lock nut
while holding the adjusting nut.
Check the clutch operation.
If the free play cannot be obtained, or the clutch
slips during the test ride, disassemble and inspect
P\

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
