Honda NT700V Deauville Service Manual

MAINTENANCE

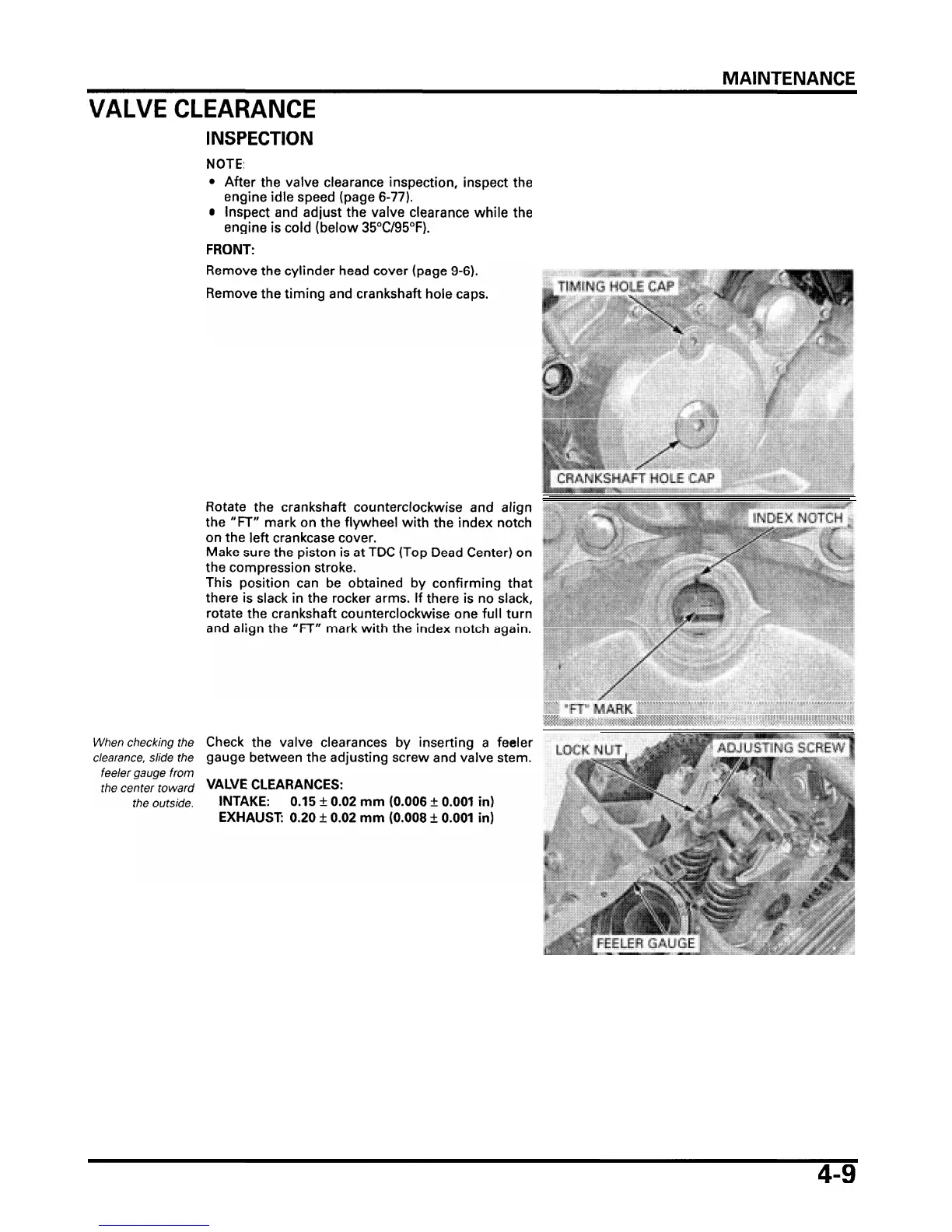

VALVE CLEARANCE
INSPECTION
NOTE:
After the valve clearance inspection, inspect the
engine idle speed (page 6-77).
r Inspect and adjust the valve clearance while the
engine is cold (below
35"C/95"F).
FRONT:
Remove the timing and crankshaft hole caps.
Rotate the crankshaft counterclockwise and align
the
"FT" mark on the flywheel with the index notch
on the left crankcase cover.
the compression stroke.
This position can be obtained by confirming that
there is slack in the rocker arms. If there is no slack,
rotate the crankshaft counterclockwise one full turn
I,,--,-,,
I1 111
When checking the
clearance, slide the
feeler gauge from
the center toward
the outsrde.
Check the valve clearances by inserting a feeler
gauge between the adjusting screw and valve stem.
VALVE CLEARANCES:
INTAKE:
0.15 + 0.02 mm (0.006 + 0.001 in)
EXHAUST 0.20 f 0.02 mm (0.008 f 0.001 in)

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
