Honda NT700V Deauville Service Manual

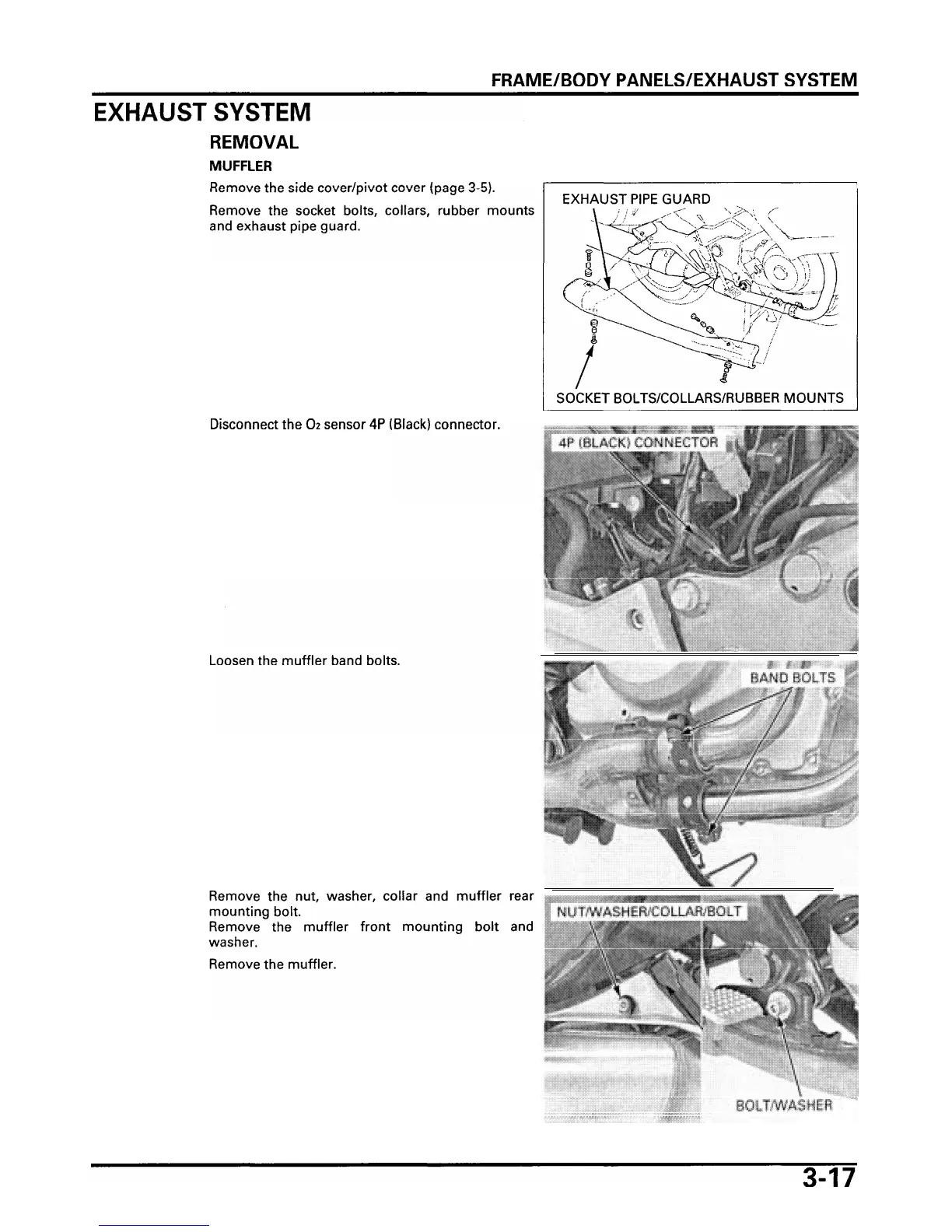

FRAMEIBODY PANELSIEXHAUST SYSTEM
REMOVAL
MUFFLER
Remove the side coverlpivot cover (page 3-5).
Remove the socket bolts, collars, rubber mounts
and exhaust pipe guard.
Disconnect the
02 sensor 4P (Black) connector.
Loosen the muffler band bolts.
EXHAUST PIPE GUARD
SOCKET BOLTSICOLLARSIRUBBER MOUNTS
Remove the nut, washer, collar and muffler
mounting bolt.
Remove the muffler front mounting bolt
washer.
rear
and
Remove the muffler.

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
