Honda NT700V Deauville Service Manual

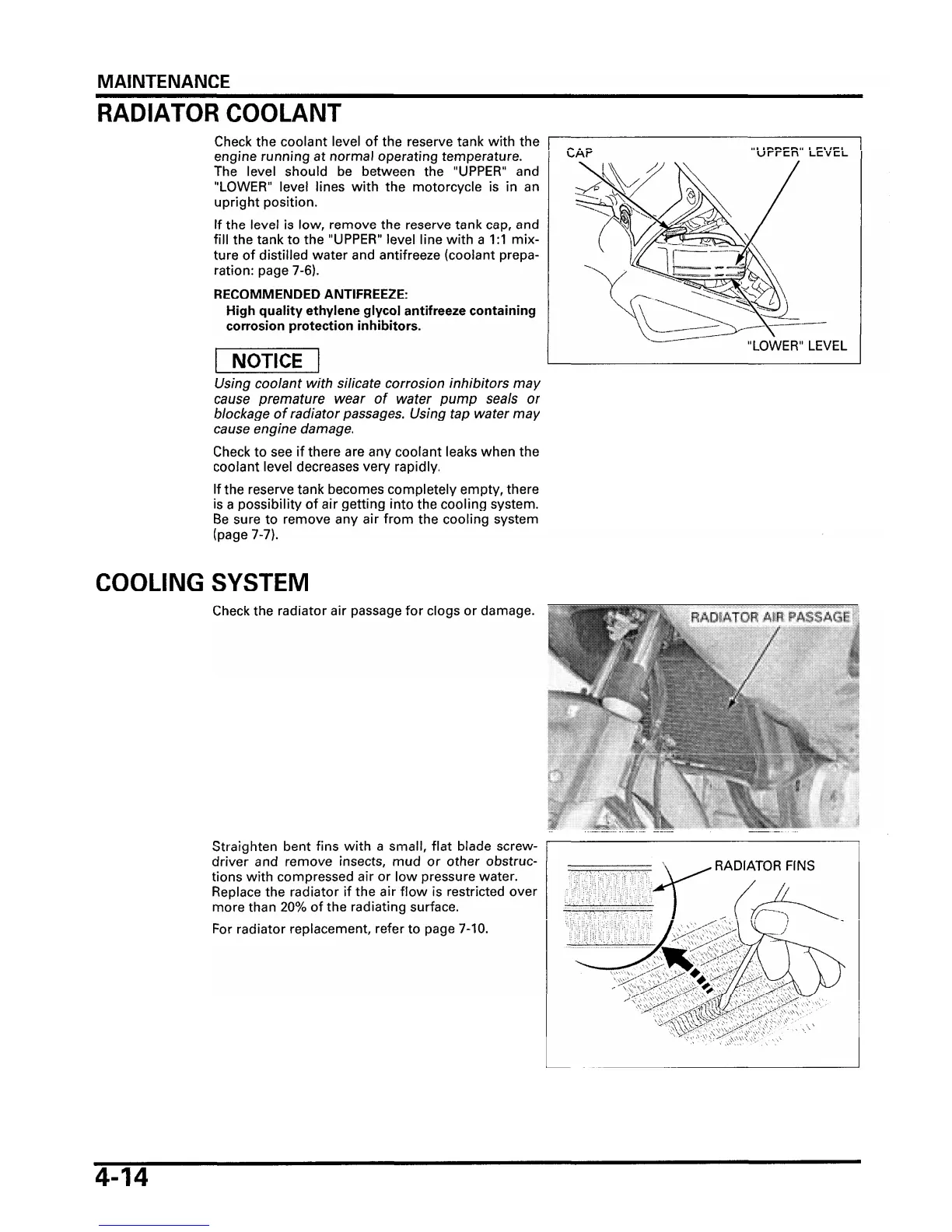

Check the coolant level of the reserve tank with the
engine running at normal operating temperature.
The level should be between the
"UPPER" and
"LOWER" level lines with the motorcycle is in an
upright position.
If the level is low, remove the reserve tank cap, and
fill the tank to the
"UPPER" level line with a 1:l mix-
ture of distilled water and antifreeze (coolant prepa-
ration: page
7-6).
RFCOMMERII2ED ANTIFREEZE:
High quality ethylene glycol antifreeze containing
corrosion protection inhibitors.
I NOTICE I
I CAP "UPPER" LEVEL
--
LEVEL
Using coolant with silicate corrosion inhibitors may
cause premature wear of water pump seals or
blockage of radiator passages. Using tap water may
cause eng~ne damage.
Check to see if there are any coolant leaks when the
coolant level decreases very rapidly.
If the reserve tank becomes completely empty, there
is a possibflity of air getting into the coobng system.
Be sure to remove any air from the coobng system
(page
7-7).
OOLING SYSTEM
Check the radiator air passage for clogs or damage.
Straighten bent fins with a small, flat blade screw-
driver and remove insects, mud or other obstruc-
tions with compressed air or low pressure water.
Replace the radiator if the air flow is restricted over
more than
20% of the radiating surface.
For radiator replacement, refer to page
7-10.

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
