FRAMEIBODY PANELSIEXHAUST SYSTEM

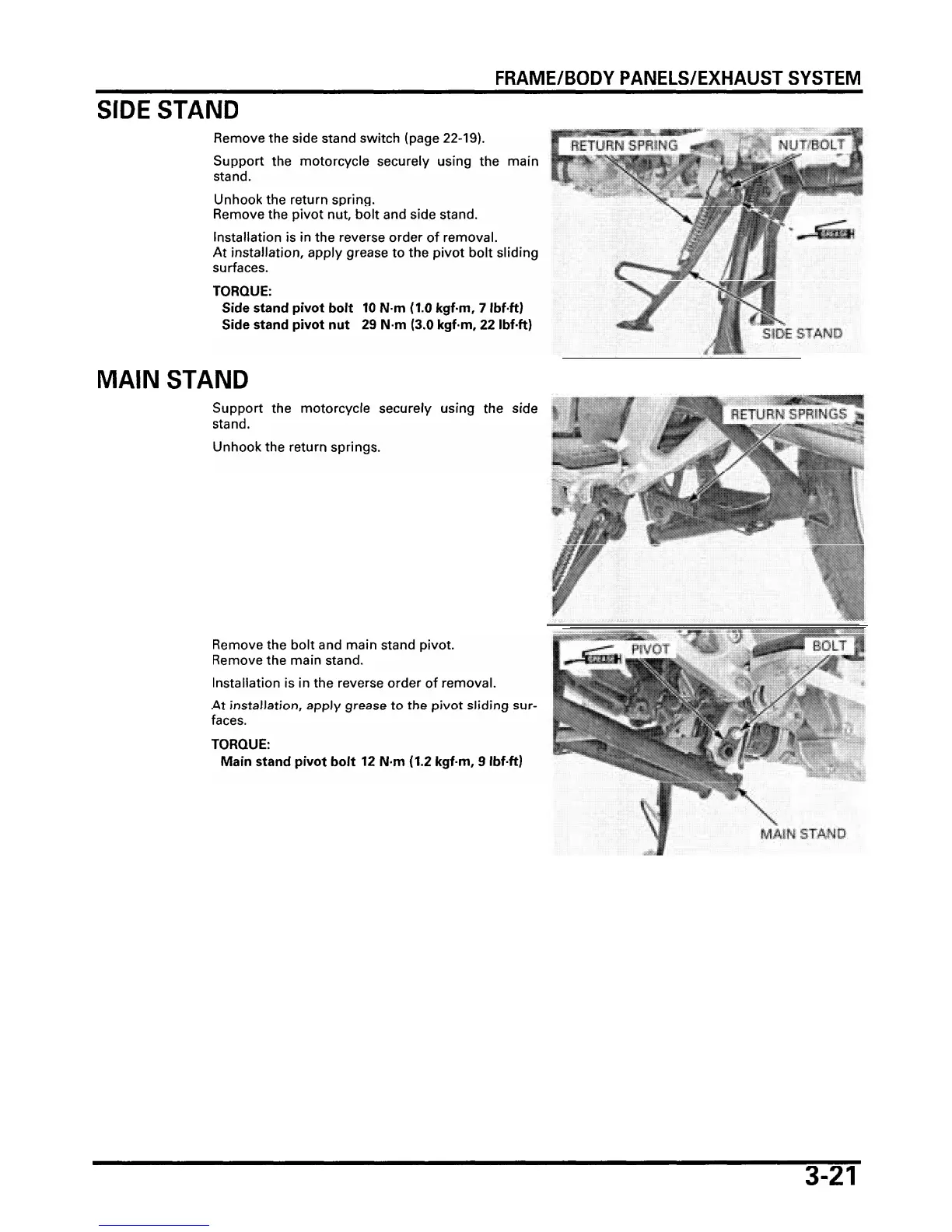

SIDE STAND
Remove the side stand switch (page 22-19).
Support the motorcycle securely using the main
stand.
Unhook the return spring.
Remove the pivot nut, bolt and side stand.
Installation is in the reverse order of removal.
At installation, apply grease to the pivot bolt sliding
surfaces.
TORQUE:
Side stand pivot bolt 10 N.m (1.0 kgf-m, 7 IbfW
Side stand pivot nut 29 N-m
(3.0 kgf.m, 22 Ibf-ft)
MAIN STAND
Support the motorcycle securely using the side
stand.
Unhook the return springs.
Remove the bolt and main stand pivot.
Remove the main stand.
Installation is in the reverse order of removal.
At installation, apply grease to the pivot sliding sur-
faces.
TORQUE:
Main stand pivot bolt 12 N-m (1.2 kgf-m, 9 Ibf-ftl

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
