Honda NT700V Deauville Service Manual

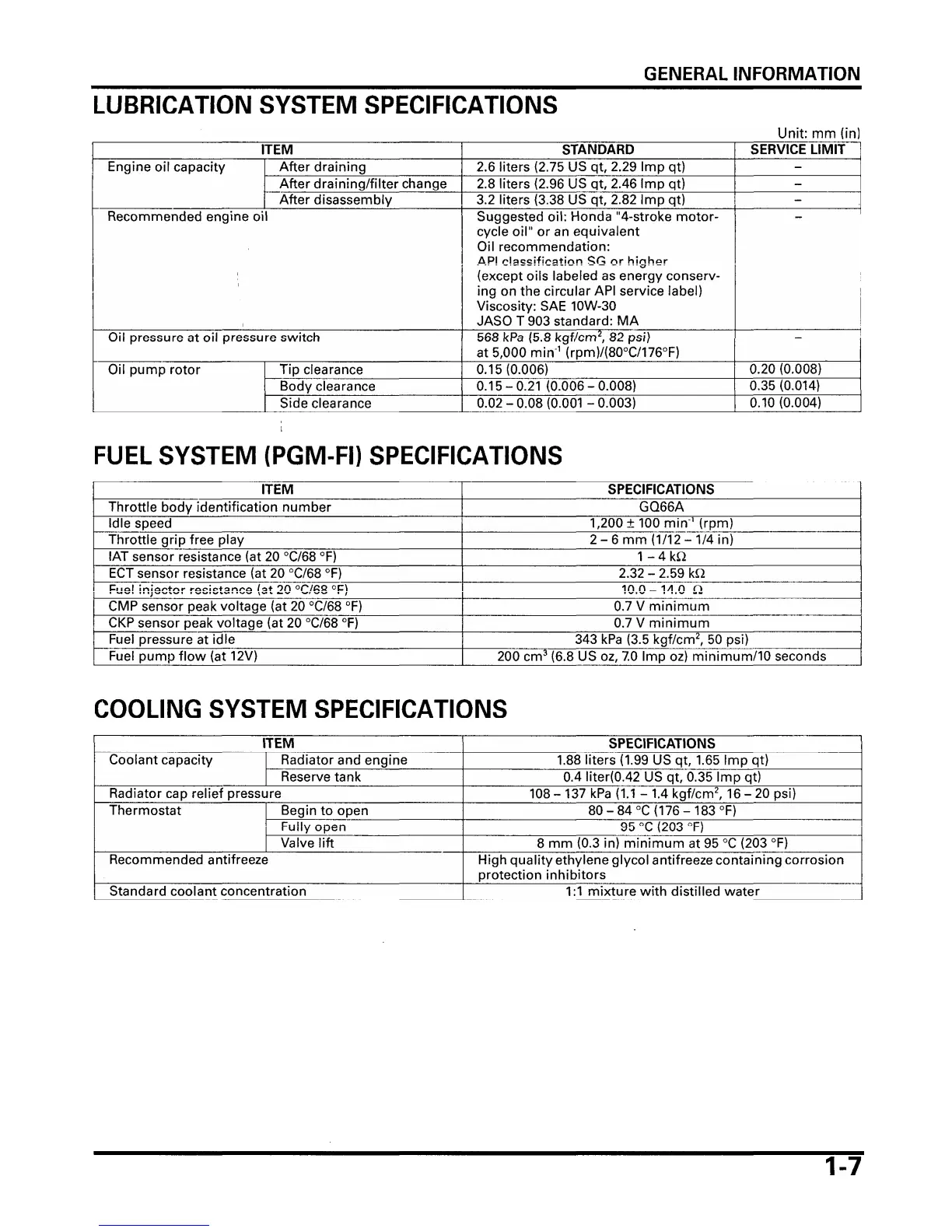

GENERAL INFORMATION
LUBRICATION SYSTEM SPECIFICATIONS
Unit: mm (ir
FUEL SYSTEM (PGM-FI) SPECIFICATIONS
ITEM
Throttle body identification number
Idle speed
Throttle grip free play
IAT sensor resistance (at 20 "Cl68 "F)
SPECIFICATIONS
GQ66A
1,200
f 100 min.' (rpm)
2
- 6 mm (1112 - 114 in)
1-4kR
ECT sensor resistance (at 20 "Cl68
"F)
00LING SYSTEM SPECIFICATIONS
2.32 - 2.59 kR
CMP sensor peak voltage (at 20 "Cl68
"F)
0.7 V minimum
711 Of'lGR OF\
-v Vl "U I ,
I 70.0 M Q
CKP sensor peak voltage (at 20 "Cl68 "F)
Fuel pressure at idle
Fuel pump flow (at 12V)
0.7
V minimum
343 kPa (3.5 kgf/cmz, 50 psi)
200 cm3 (6.8 US oz, 7.0 Imp oz) minimum/lO seconds

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
