Honda NT700V Deauville Service Manual

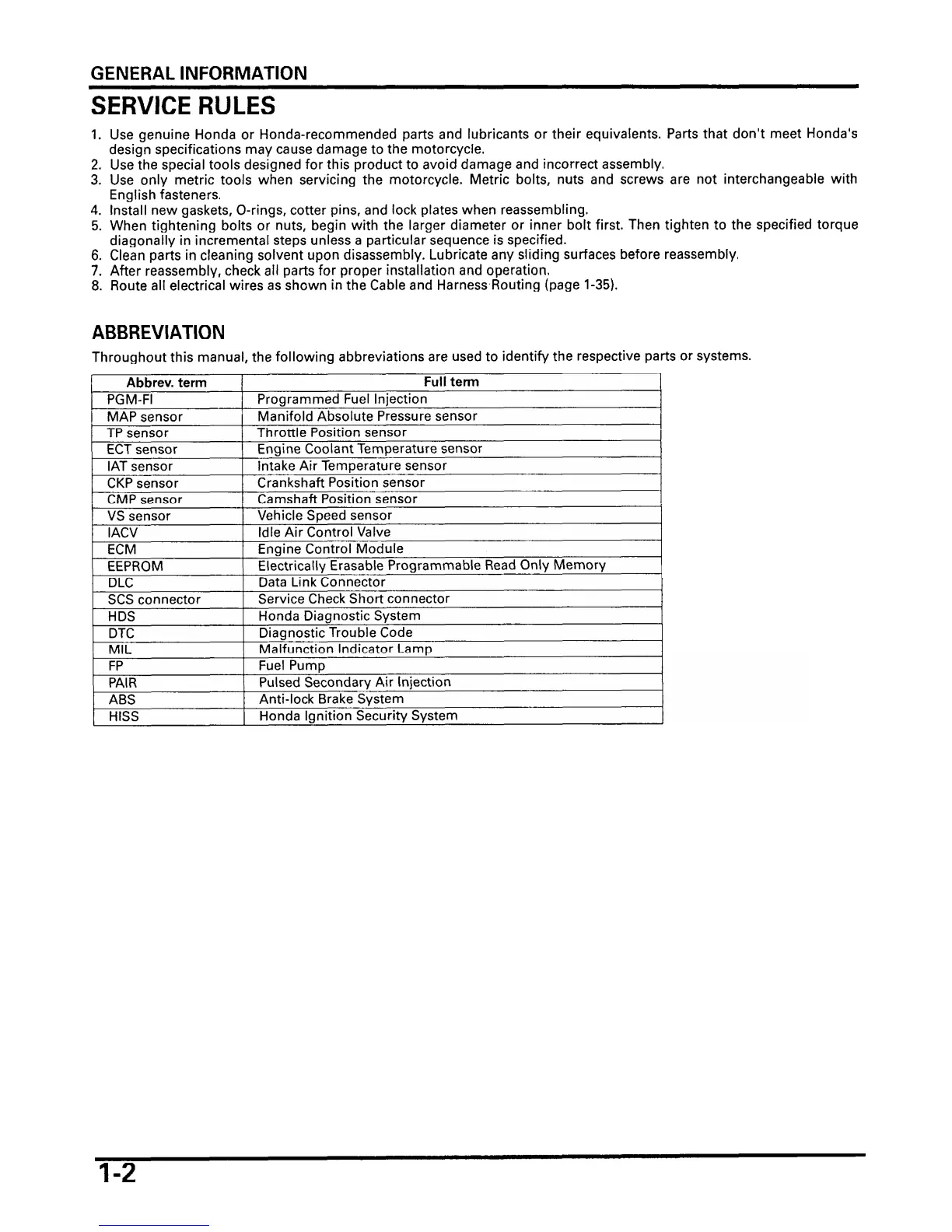

GENERAL INFORMATION
SERVICE RULES
Use genuine Honda or Honda-recommended parts and lubricants or their equivalents. Parts that don't meet Honda's
design specifications may cause damage to the motorcycle.
Use the special tools designed for this product to avoid damage and incorrect assembly.
Use only metric tools when servicing the motorcycle. Metric bolts, nuts and screws are not interchangeable with
English fasteners.
Install new gaskets, 0-rings, cotter pins, and lock plates when reassembling.
When tightening bolts or nuts, begin with the larger diameter or inner bolt first. Then tighten to the specified torque
diagonally in incremental steps unless a particular sequence is specified.
Clean parts in cleaning solvent upon disassembly. Lubricate any sliding surfaces before reassembly.
After reassembly, check all parts for proper installation and operation.
Route all electrical wires as shown in the Cable and Harness-Routing (page
1-35).
ABBREVIATION
Throughout this manual, the following abbreviations are used to identify the respective parts or systems.
Abbrev. term
PGM-FI
MAP sensor
TP sensor
ECT sensor
IAT sensor
CKP sensor
Full
term
Programmed Fuel Injection
Manifold Absolute Pressure sensor
Throttle Position sensor
Engine Coolant Temperature sensor
Intake Air Temperature sensor
Crankshaft Position sensor
FP
PAIR
ABS
HISS
Fuel Pump
Pulsed Secondary Air Injection
Anti-lock Brake System
Honda Ignition Security System

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
