Honda NT700V Deauville Service Manual

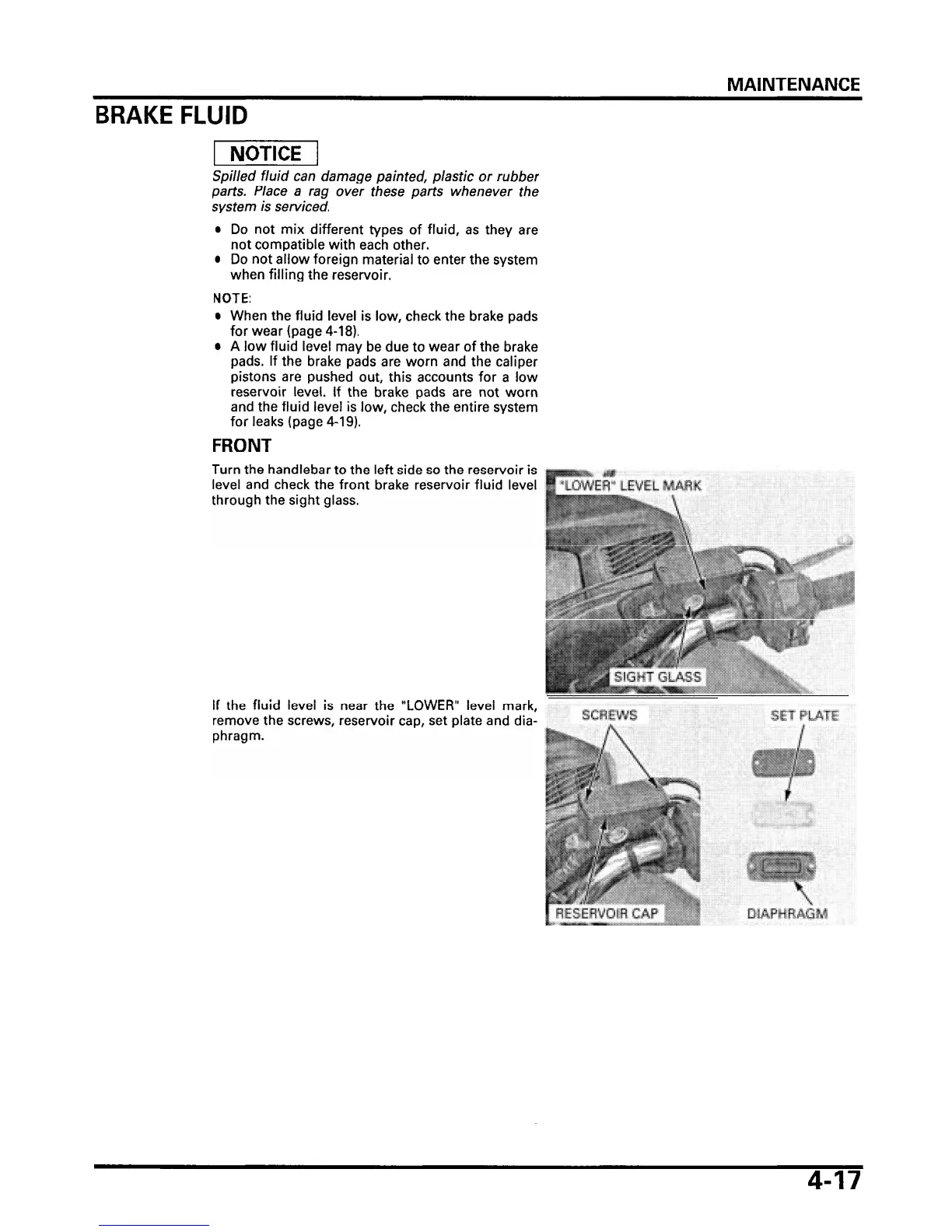

BRAKE FLUID
Spilled fluid can damage painted, plastic or rubber
parts. Place a rag over these parts whenever the
system is serviced.
0 Do not mix different types of fluid, as they are
not compatible with each other.
0 Do not allow foreign material to enter the system
when filling the reservoir.
NOTE:
0 When the fluid level is low, check the brake pads
for wear (page
4-18).
A low fluid level may be due to wear of the brake
pads. If the brake pads are worn and the caliper
pistons are pushed out, this accounts for a low
reservoir level. If the brake pads are not worn
and the fluid level is low, check the entire system
for leaks (page
4-19).
FRONT
Turn the handlebar to the left side so the reservoir is
level and check the front brake reservoir fluid level
through the sight glass.
If the fluid level is near the "LOWER" level mark,
remove the screws, reservoir cap, set plate and dia-
phragm.

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
