Honda NT700V Deauville Service Manual

FRAMEIBODY PANELSIEXHAUST SYSTEM

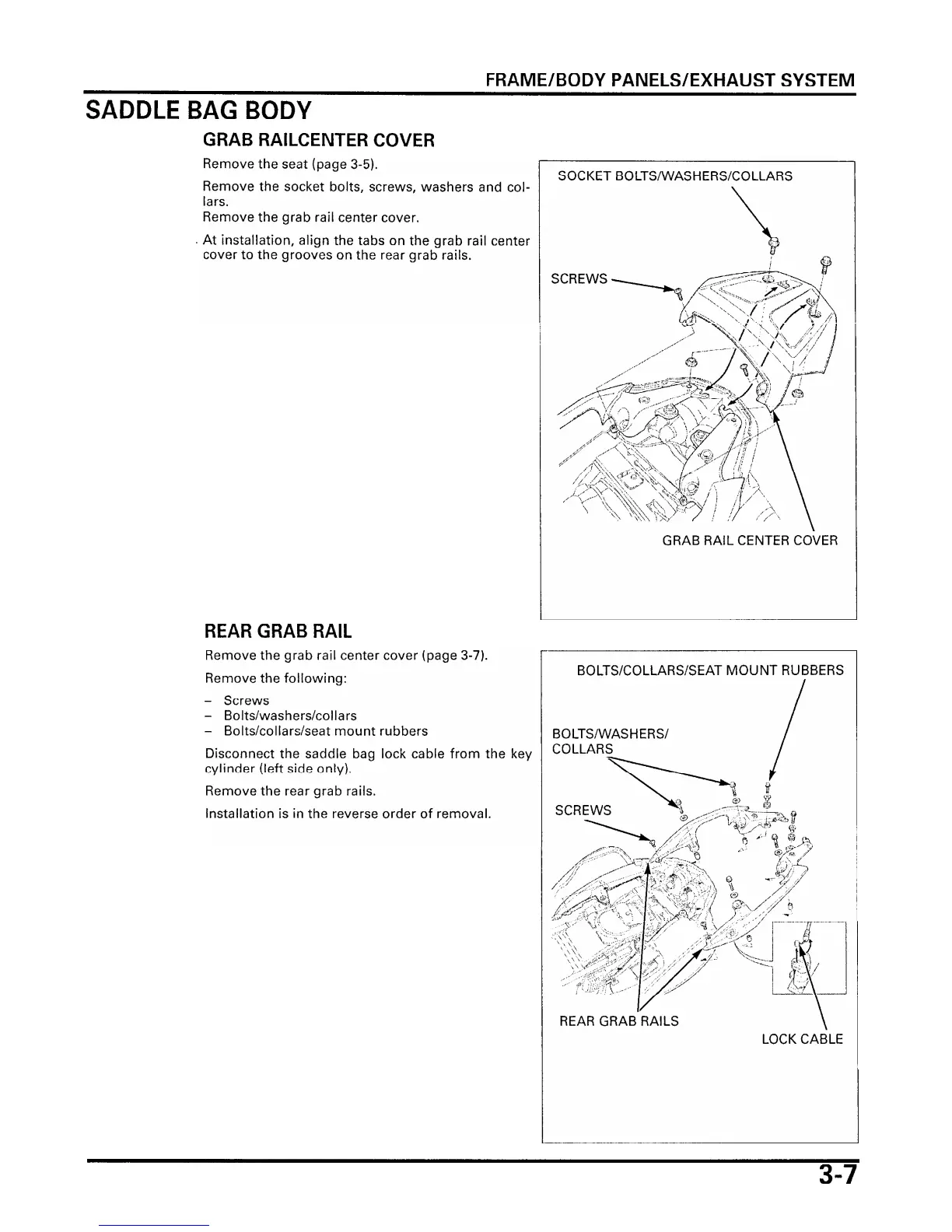

SADDLE BAG BODY
GRAB RAILCENTER COVER
Remove the seat (page 3-51,
Remove the socket bolts, screws, washers and col-
lars.
Remove the grab rail center cover.
At installation, align the tabs on the grab rail center
cover to the grooves on the rear grab rails.
GRAB RBLL
Remove the grab rail center cover (page 3-7).
Remove the following:
- Screws
- Bolts/washers/collars
- Bolts/collars/seat mount rubbers
Disconnect the saddle bag lock cable from the key
cylinder (left side only).
Remove the rear grab rails.
Installation is in the reverse order of removal.
SOCKET BOLTSIWASHERSICOLLARS
\
GRAB RAIL CENTER COVER
BOLTSICOLLARSISEAT MOUNT RUBBERS
BOLTS/WASHERS/
\
LOCK CABLE

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
