MAINTENANCE

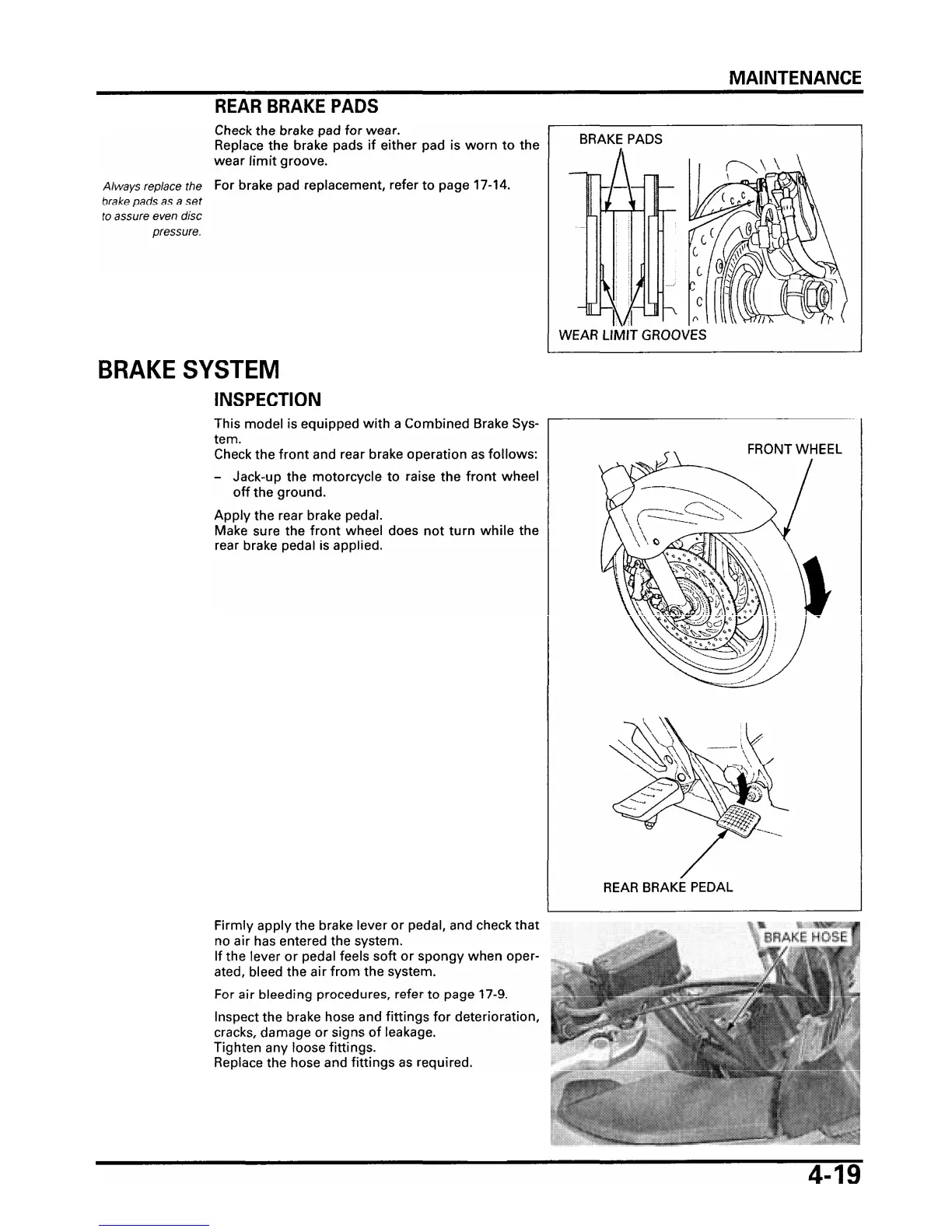

REAR BRAKE PADS
UY .
Replace the brake pads if either pad is worn to the
wear limit groove.
Always replace the For brake pad replacement, refer to page 17-14.
brake pads as a set
to assure even disc
pressure.
BRAKE SYSTEM
INSPECTION
This model is equipped with a Combined Brake Sys-
tem.
Check the front and rear brake operation as follows:
- Jack-up the motorcycle to raise the front wheel
off the ground.
Apply the rear brake pedal.
Make sure the front wheel does not turn while the
rear brake pedal is applied.
Firmly apply the brake lever or pedal, and check that
no air has entered the system.
If the lever or pedal feels soft or spongy when oper-
ated, bleed the air from the system.
Inspect the brake hose and fittings for deterioration,
cracks, damage or signs of leakage.
Tighten any loose fittings.
Replace the hose and fittings as required.
BRAKE PADS
WEAR
LIMIT GROOVES
C l FRONT WHEEL
REAR BRAKE PEDAL

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
