Honda NT700V Deauville Service Manual

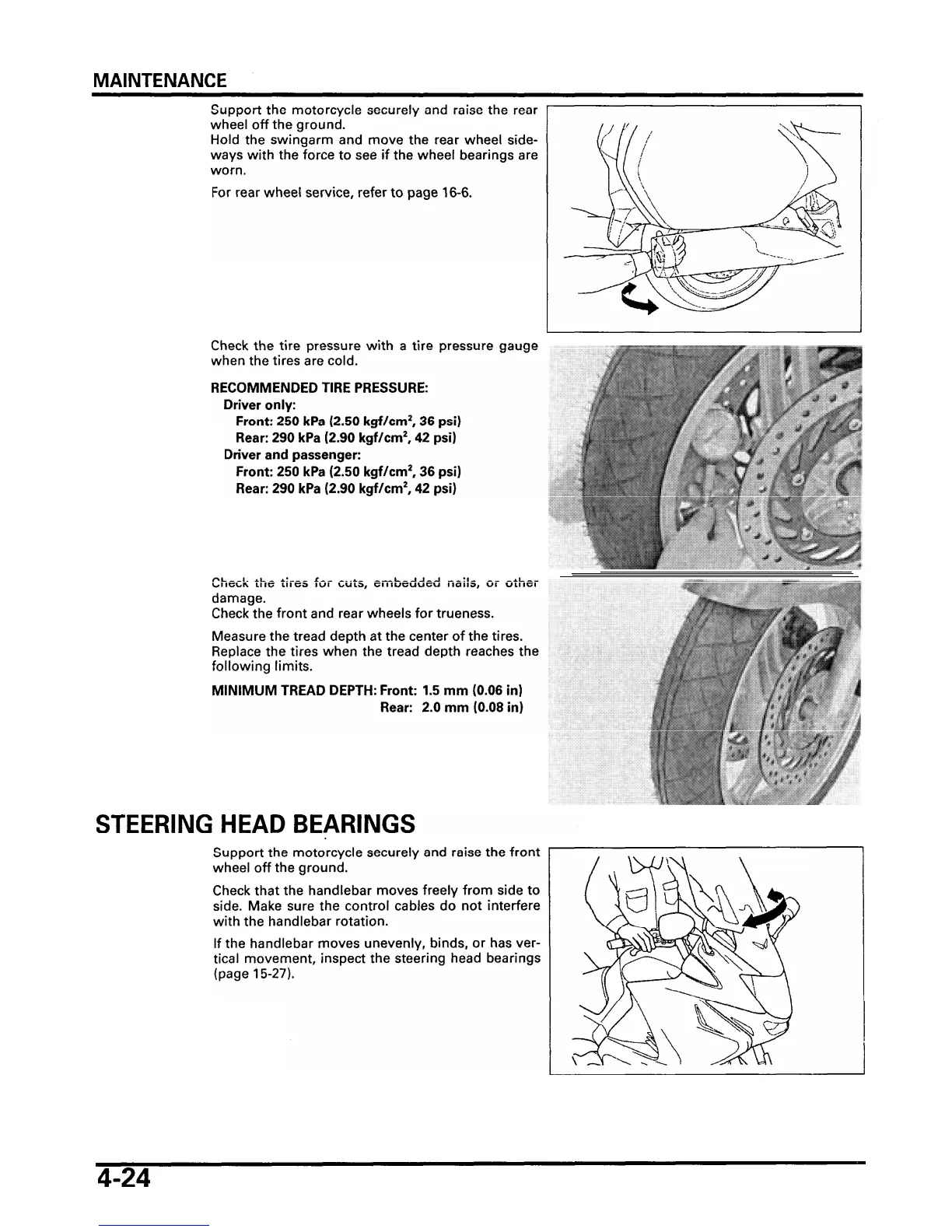

MAINTENANCE
wheel off the ground.
Hold the swingarm and move the rear wheel side-
ways with the force to see if the wheel bearings are
worn.
For rear wheel service, refer to page
16-6.
Check the tire pressure with a tire pressure gauge
when the tires are cold.
RECOMMENDED TIRE PRESSURE:
Driver only:
Rear:
290 kPa (2.90 kgf/cm2, 42 psi)
Driver and passenger:
Front:
250 kPa (2.50 kgf/cm2, 36 psi)
Rear:
290 kPa (2.90 kgf/cm2, 42 psi)
Check the tires for cuts, embedded nails, or other
damage.
Check the front and rear wheels for trueness.
Measure the tread depth at the center of the tires.
Replace the tires when the tread depth reaches the
following limits.
MINIMUM TREAD DEPTH: Front:
1.5 mm (0.06 in)
Rear:
2.0 mm (0.08 in)
STEERING HEAD BEARINGS
wheel off the ground.
Check that the handlebar moves freely from side to
side. Make sure the control cables do not interfere
with the handlebar rotation.
If the handlebar moves unevenly, binds, or has ver-
tical movement, inspect the steering head bearings
(page
15-27).

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
