Honda NT700V Deauville Service Manual

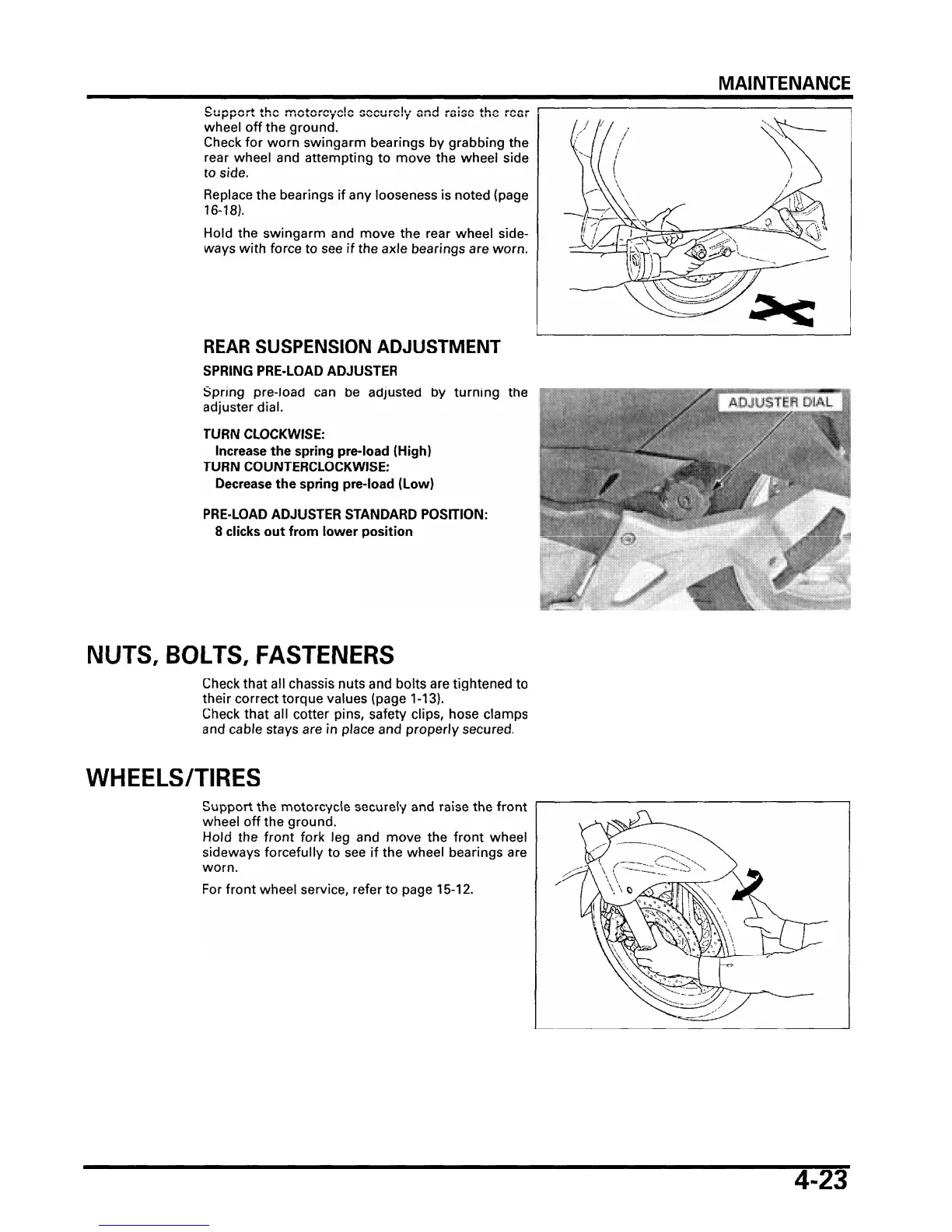

MAINTENANCE
wheel off the ground.
Check for worn swingarm bearings by grabbing the
rear wheel and attempting to move the wheel side
to side.
Replace the bearings if any looseness is noted (page
16-18).
Hold the swingarm and move the rear wheel side-
ways with force to see if the axle bearings are worn.
I
REAR SUSPENSION ADJUSTMENT
SPRING PRE-LOAD ADJUSTER
Sprmg pre-load can be adjusted by turning the
adjuster dial.
TURN CLOCKWISE:
Increase the spring pre-load (High)
N COUmTtRCLO~St:
Decrease the spring pre-load (Low)
PRE-LOAD ADJUSTER STANDARD POSITION:
8 clicks out from lower position
NUTS, BOLTS, FASTENERS
Check that all chassis nuts and bolts are tightened to
their correct torque values (page 1-13).
Check that all cotter pins, safety clips, hose clamps
and cable stays are in place and properly secured.
wheel off the ground.
Hold the front fork leg and move the front wheel
sideways forcefully to see if the wheel bearings are
worn.
For front wheel service, refer to page
15-12.

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
