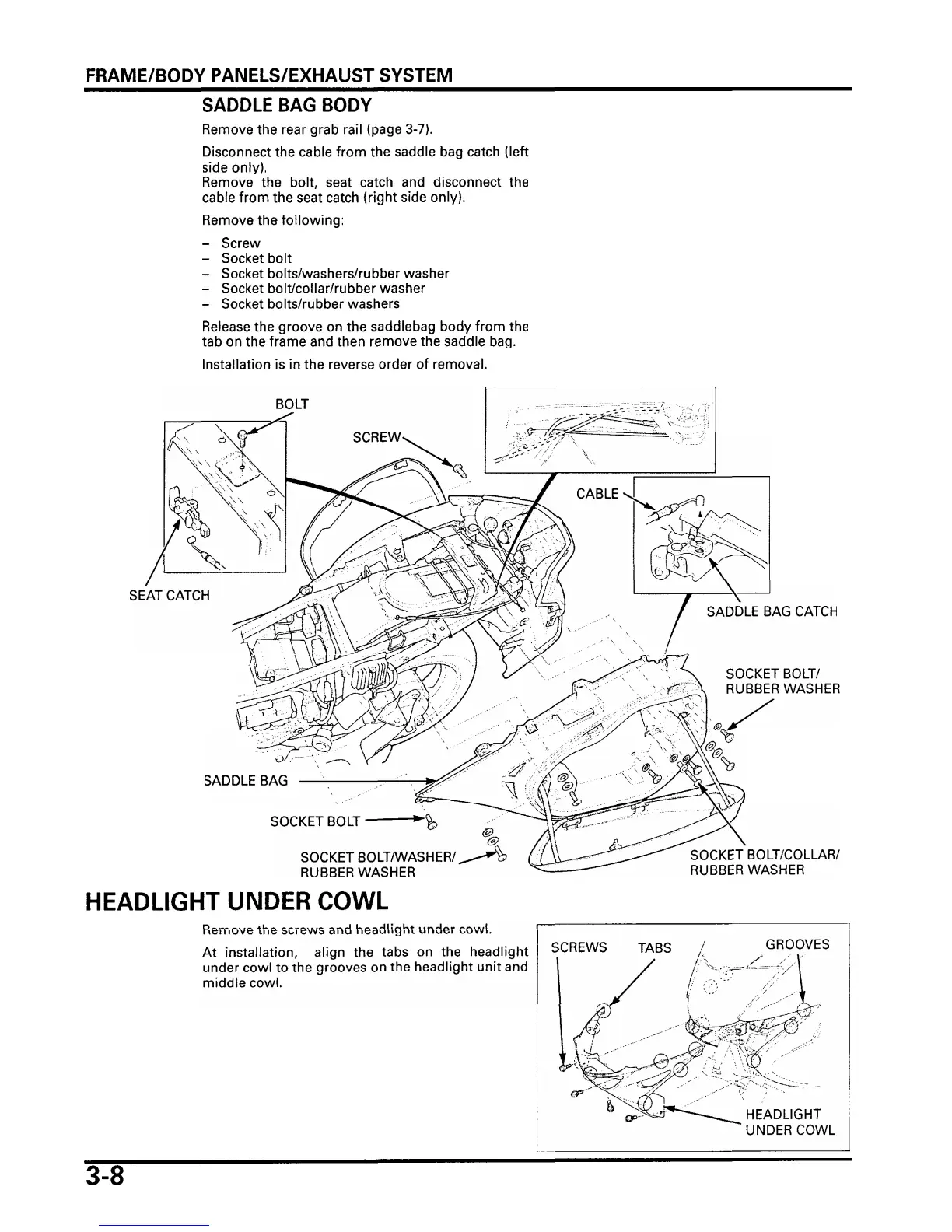

FRAMEIBODY PANELSIEXHAUST SYSTEM
SADDLE BAG BODY
Remove the rear grab rail (page
3-7).
Disconnect the cable from the saddle bag catch (left
side only).
Remove the bolt, seat catch and disconnect the
cable from the seat catch (right side only).
Remove the following:
-
Screw
-
Socket bolt
-
Socket bolts/washerslrubber washer
-
Socket bolt/collar/rubber washer
-
Socket boltslrubber washers
Release the groove on the saddlebag body from the
tab on the frame and then remove the saddle bag.
Installation is in the reverse order of removal.
