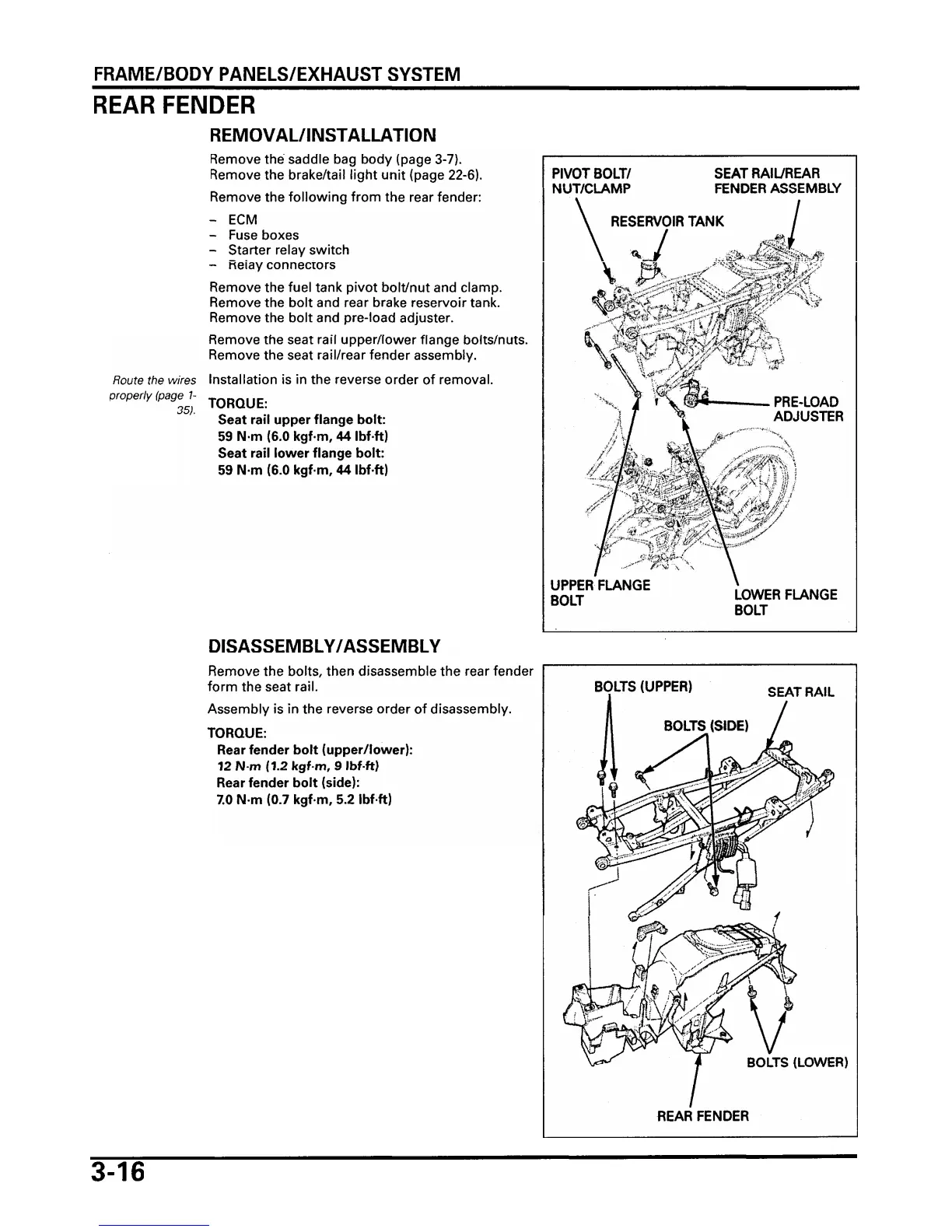

Honda NT700V Deauville Service Manual

FRAMEIBODY PANELSIEXHAUST SYSTEM
REMOVALIINS
I ALLATION
Remove the saddle bag body (page 3-7).
Remove the brakeltail light unit (page 22-6).
Remove the following from the rear fender:
- ECM
- Fuse boxes
- Starter relay switch
- nelay connectors
Remove the fuel tank pivot bolthut and clamp.
Remove the bolt and rear brake reservoir tank.
Remove the bolt and pre-load adjuster.
Remove the seat rail upperllower flange boltslnuts.
Remove the seat railhear fender assembly.
Route the wires Installation is in the reverse order of removal.
properly (page 1-
35).
TORQUE:
Seat rail upper flange bolt:
59 N-m (6.0 kgf-m,
44 Ibf-it)
Seat rail lower flange bolt:
59 N-m (6.0 kgf-m,
44 Ibf-ft)
Remove the bolts, then disassemble the rear fender
form the seat rail.
Assembly is in the reverse order of disassembly.
TORQUE:
Rear fender bolt (upper/lower):
I
Rear fender bolt (side):
7.0
N-m (0.7 kgf-m, 5.2 Ibfmft)
PIVOT BOLT1 SEAT RAIUREAR
\ RESERVOIR TANK 1
UPPER-FLANGE
BOLT
\
LOWER FLANGE
BOLT
BOLTS (UPPER)
I SEAT RAIL
