Honda NT700V Deauville Service Manual

FRWBODY PANELSIEXHAUST SYSTEM

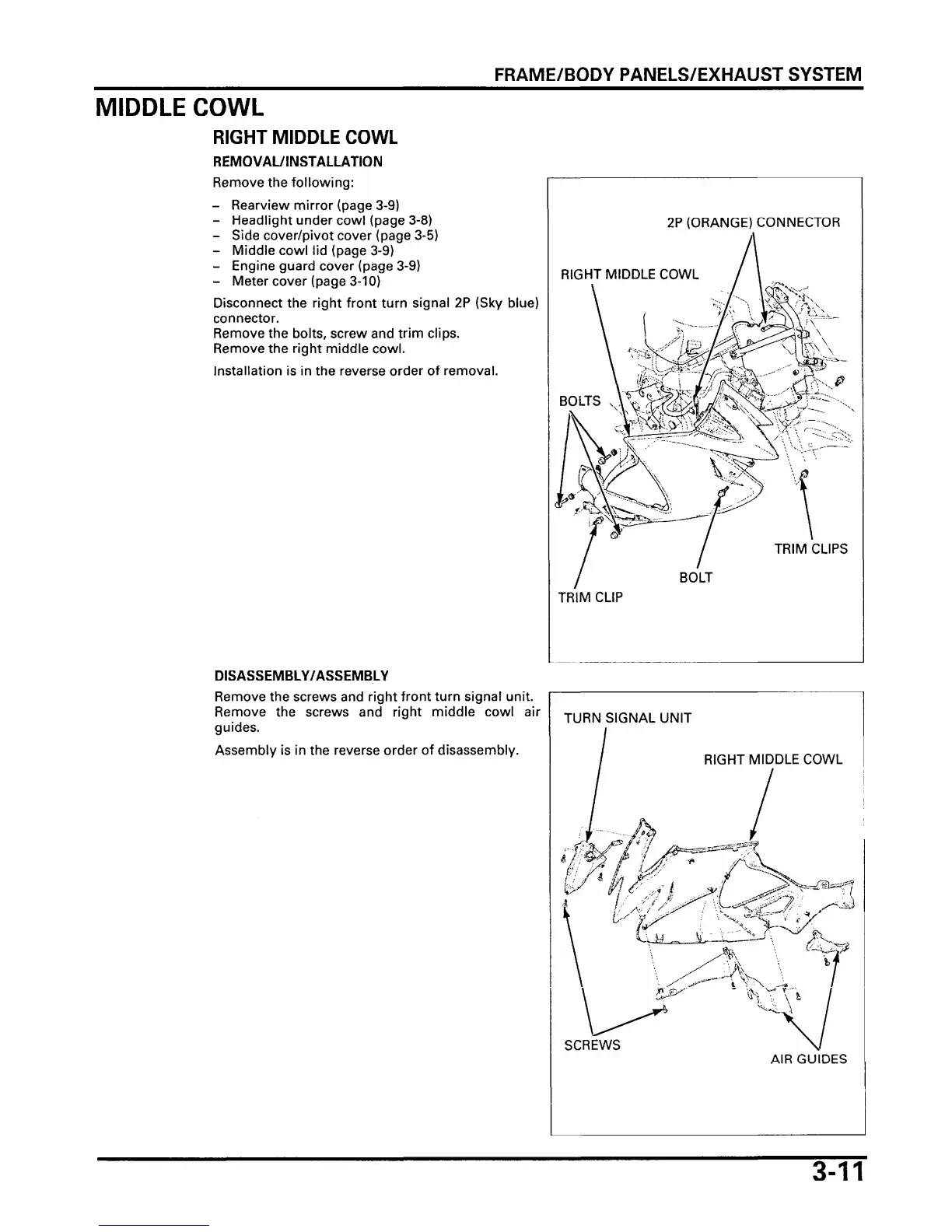

MIDDLE COWL
RIGHT MIDDLE COWL
REMOVALANSTALLATION
Remove the following:
- Rearview mirror (page 3-9)
- Headlight under cowl (page 3-8)
- Side coverlpivot cover (page 3-51
- Middle cowl lid (page 3-9)
- Engine guard cover (page 3-9)
- Meter cover (page 3-10)
Disconnect the right front turn signal 2P (Sky blue)
connector.
Remove the bolts, screw and trim clips.
Remove the right middle cowl.
Instanation is in the reverse order ot removal.
DISASSEMBLYIASSEMBLY
Remove the screws and right front turn signal unit.
Remove the screws and right middle cowl air
guides.
Assembly is in the reverse order of disassembly.
2P (ORANGE) CONNECTOR
TRlM
CLIPS
BOLT
TRlM CLIP
TURN SIGNAL UNIT
/ RIGHT MIDDLE COWL
SCREWS
\I
AIR GUIDES

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
