Honda NT700V Deauville Service Manual

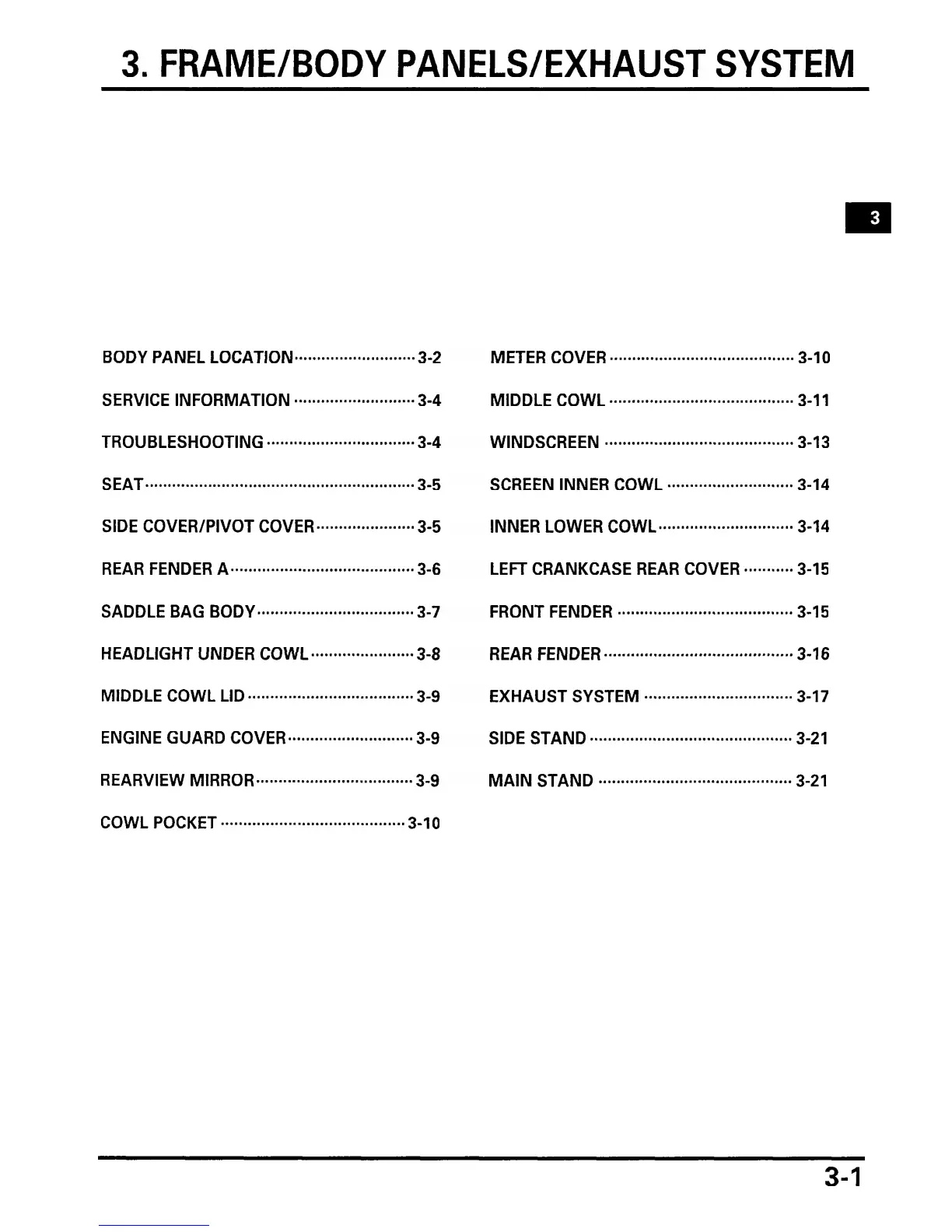

3 . FRAMEIBODY PANELSIEXHAUST SYSTEM
BODY PANEL LOCATION ........................... .........................................
3 -2 METER COVER 3-10
........................... ......................................... SERVICE INFORMATION 3-4 MIDDLE COWL 3-11
faOUBLESHOOTlNG ................................. ..........................................
3-4 WINDSCREEN 3-13
S t AT ............................................................ ............................
3-5 SCREEN INNER COWL 3-14
..............................
SIDE COVER/PIVOT COVER ...................... 3-5 INNER LOWER COWL 3-14
REAR FENDER A ......................................... 3-6
LEFT CRANKCASE REAR COVFR ........... 3-15
SADDLE BAG BODY ................................... .......................................
3-7 FRONT FENDER 3-15
....................... .......................................... HEADLIGHT UNDER COWL 3-8 REAR FENDER 3-16
MIDDLE COWL LID ..................................... .................................
3-9 EXHAUST SYSTEM 3-17
ENGINE GUARD COVER ............................ .............................................
3-9 SIDE STAND 3-21
................................... ........................................... HtARVltw MIRROR 3-9 MAIN STAND 3-21
COWL POCKET ......................................... 3-10

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
