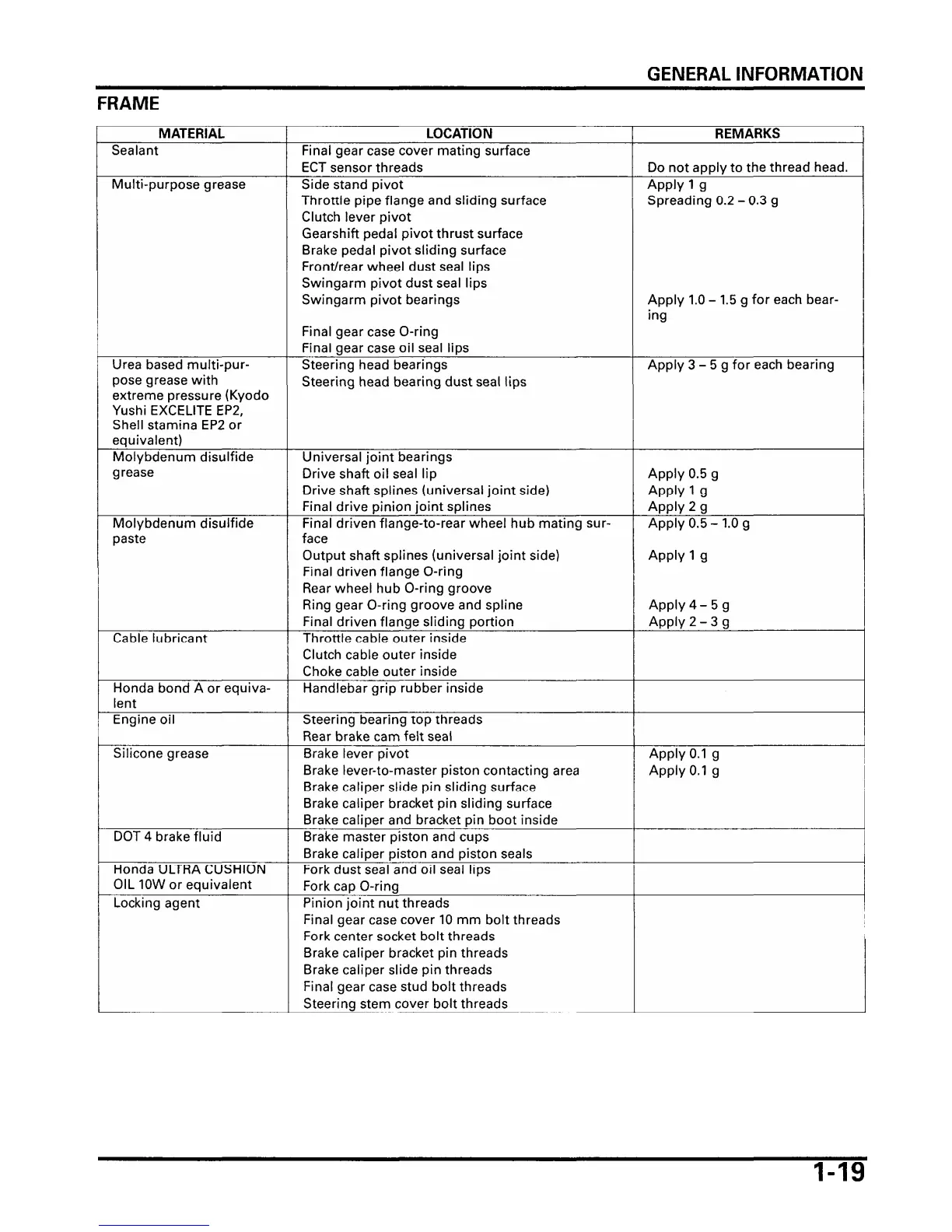

GENERAL INFORMATION
Multi-purpose grease
r---
Urea based multi-pur-
pose grease with
extreme pressure (Kyodo
Yushi EXCELITE EP2,
She1 stamina EP2 or
equivalent)
Molybdenum disulfide
grease
paste
Cable lubricant
I-----
Honda bond A or equiva-
ngme
01
Silicone grease
r
DOT
4
brake fluid
Honda ULTRA CUSHION
OIL IOW or equivalent
(
Locking agent
LOCATION
Final gear case cover mating surface
ECT sensor threads
Side stand pivot
Throttle pipe flange and sliding surface
Clutch lever pivot
Gearshift pedal pivot thrust surface
Brake pedal pivot sliding surface
Frontlrear wheel dust seal lips
Swingarm pivot dust seal lips
Swingarm pivot bearings
Final gear case 0-ring
Final gear case oil seal lips
Steering head bearings
Steering head bearing dust seal lips
Universal joint bearings
Drive shaft oil seal lip
Drive shaft splines (universal joint side)
Final drive pinion joint splines
Final driven flange-to-rear wheel hub mating sur-
face
Output shaft splines (universal joint side)
Final driven flange 0-ring
Rear wheel hub 0-ring groove
Ring gear 0-ring groove and spline
Final driven flange sliding portion
Throttle cable outer inside
Clutch cable outer inside
Choke cable outer inside
Handlebar grip rubber inside
steering bearing top mreaas
Rear brake cam felt seal
Brake lever pivot
Brake lever-to-master piston contacting area
RrP*
.
..
Brake caliper bracket pin sliding surface
Brake caliper and bracket pin boot inside
Brake master piston and cups
Brake caliper piston and piston seals
Fork dust seal and oil seal lips
Fork cap 0-ring
Pinion joint nut threads
Final gear case cover 10 mm bolt threads
Fork center socket bolt threads
Brake caliper bracket pin threads
Brake caliper slide pin threads
Final gear case stud bolt threads
Steerina stem cover bolt threads
