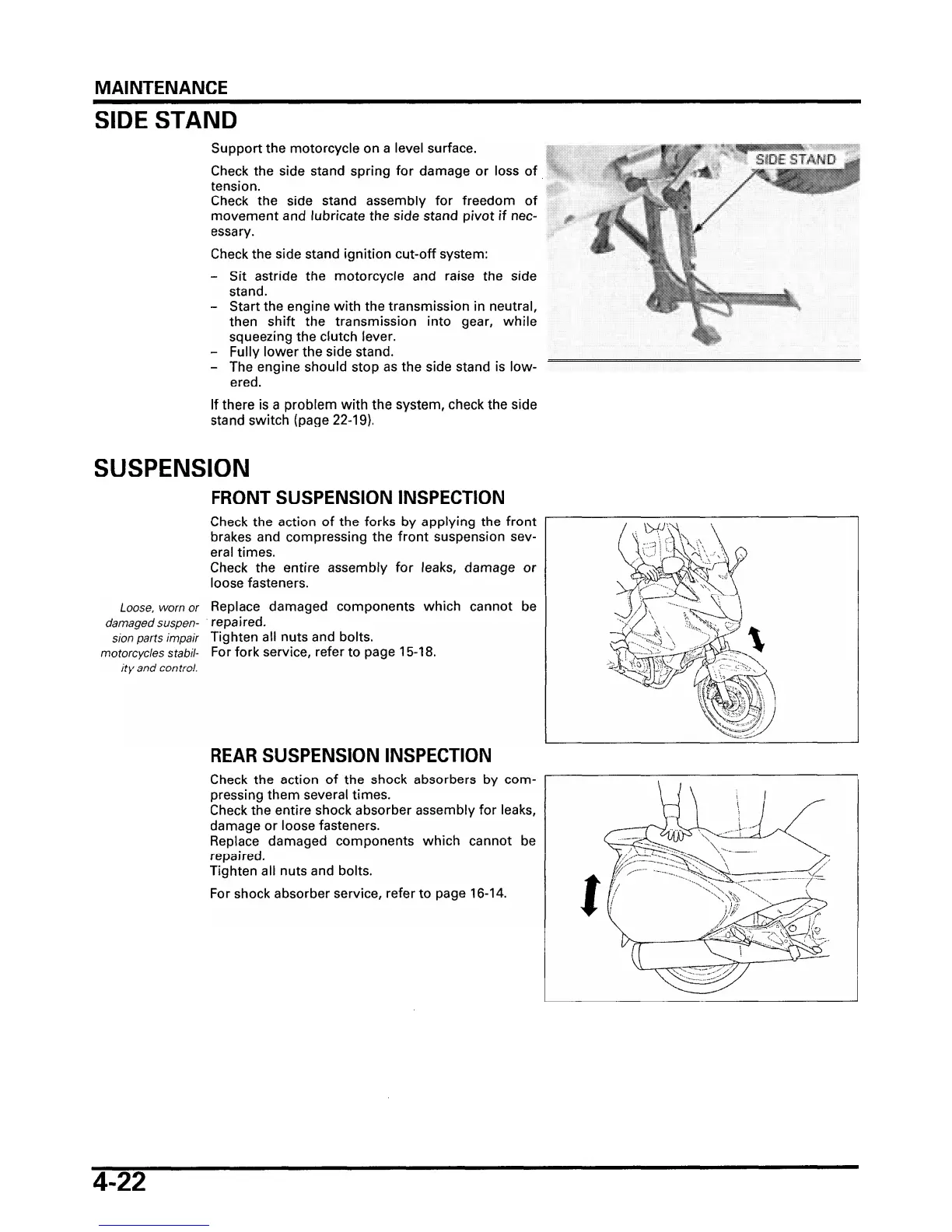

SDE STAND
Support the motorcycle on a level surface.
Check the side stand spring for damage or loss of
tension.
Check the slde stand assembly tor treedom ot
movement and lubricate the side stand pivot if nec-
essary.
Check the side stand ignition cut-off system:
- Sit astride the motorcycle and raise the side
stand.
- Start the engine with the transmission in neutral,
then shift the transmission into gear, while
squeezing the clutch lever.
v-
- Fully lower the side stand.
- The engine should stop as the side stand is low-
ered.
If there is a problem with the system, check the side
stand switch (page
22-19).
FRONT SUSPENSION INSPECTION
Loose, worn or
brakes and compressing the front suspension sev-
eral times.
Check the entire assembly for leaks, damage or
loose fasteners.
Replace damaged components which cannot be
damaged suspen- repaired.
sion parts impair Tighten all nuts and bolts.
motorcycles stabil- For fork service, refer to page 15-18.
ity and control.
REAR SUSPENSION INSPECTION
m
pressing them several times.
Check the entire shock absorber assembly for leaks,
damage or loose fasteners.
Replace damaged components which cannot be
rred.
Tighten all nuts and bolts.
For shock absorber service, refer to page
16-14.

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
