Honda NT700V Deauville Service Manual

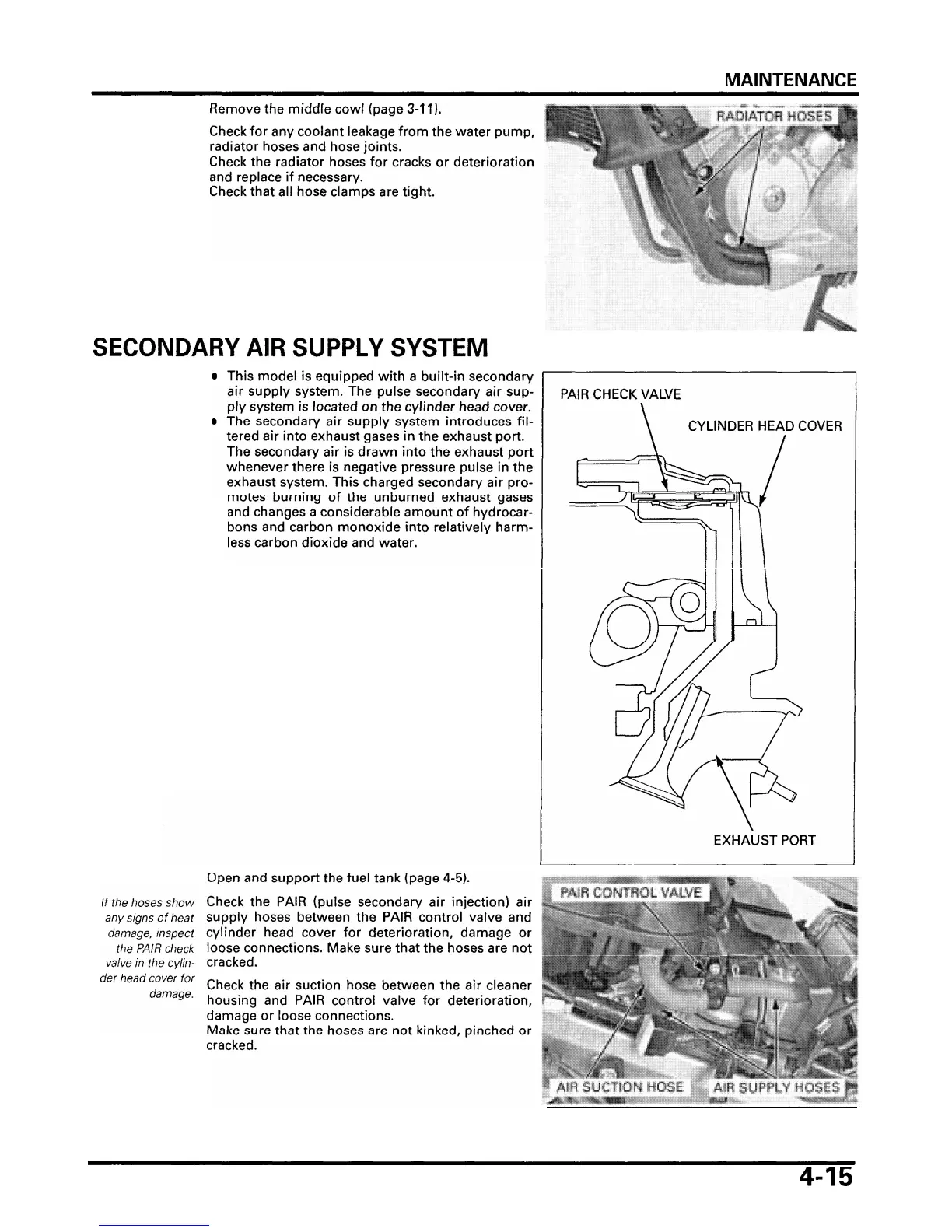

MAINTENANCE
Remove the middle cowl (page 3-1 1 ).
Check for any coolant leakage from the water pump,
radiator hoses and hose joints.
Check the radiator hoses for cracks or deterioration
and replace if necessary.
Check that all hose clamps are tight.
SECONDARY AIR SUPPLY SYSTEM
8 This model is equipped with a built-in secondary
air supply system. The pulse secondary air sup-
ply system is located on the cylinder head cover.
8 The secondary air supply system introduces fil-
tered air into exhaust gases in the exhaust port.
The secondary air is drawn into the exhaust port
whenever there is negative pressure pulse in the
exhaust system. This charged secondary air pro-
motes burning of the unburned exhaust gases
and changes a considerable amount of hydrocar-
bons and carbon monoxide into relatively harm-
less carbon dioxide and water.
If the hoses show
any signs of heat
damage, inspect
the PAlR check
valve in the cylin-
der head cover for
damage.
Open and support the fuel tank (page 4-5).
Check the PAlR (pulse secondary air injection) air
supply hoses between the PAlR control valve and
cylinder head cover for deterioration, damage or
loose connections. Make sure that the hoses are not
cracked.
Check the air suction hose between the air cleaner
housing and PAlR control valve for deterioration,
damage or loose connections.
cracked.
PAlR CHECK VALVE
\ CYLINDER HEAD COVER
EXHAUST PORT

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
