Honda NT700V Deauville Service Manual

TECHNICAL FEATURES

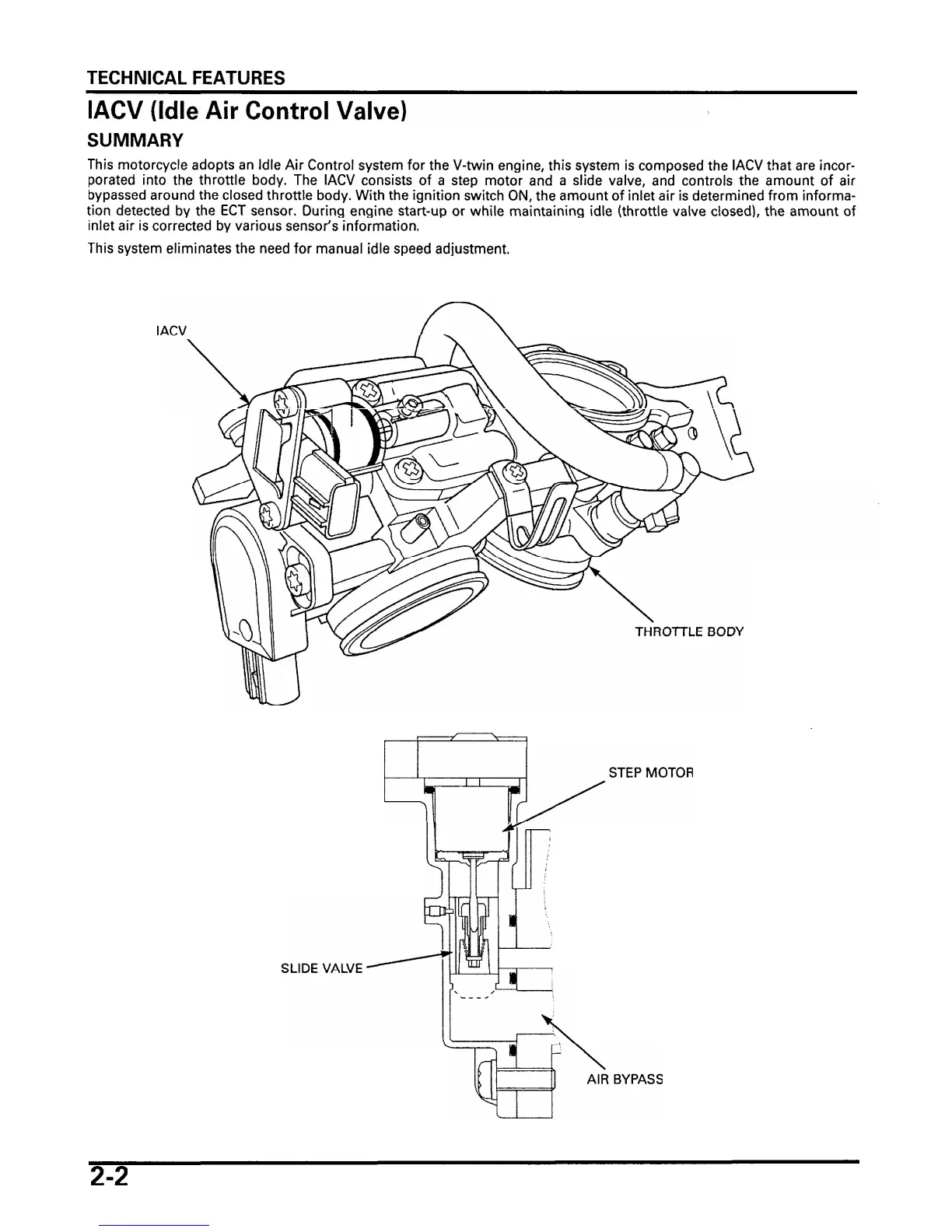

IACV (Idle Air Control Valve)
SUMMARY
This motorcycle adopts an Idle Air Control system for the V-twin engine, this system is composed the IACV that are incor-
porated into the throttle body. The IACV consists of a step motor and a slide valve, and controls the amount of air
bypassed around the closed throttle body. With the ignition switch ON, the amount of inlet air is determined from informa-
tion detected by the ECT sensor. During engine start-up or while maintaining idle (throttle valve closed), the amount of
inlet air is corrected by various sensor's information.
This system eliminates the need for manual idle speed adjustment.
AIR
STEP MOTOR
BY PASS

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
