Honda NT700V Deauville Service Manual

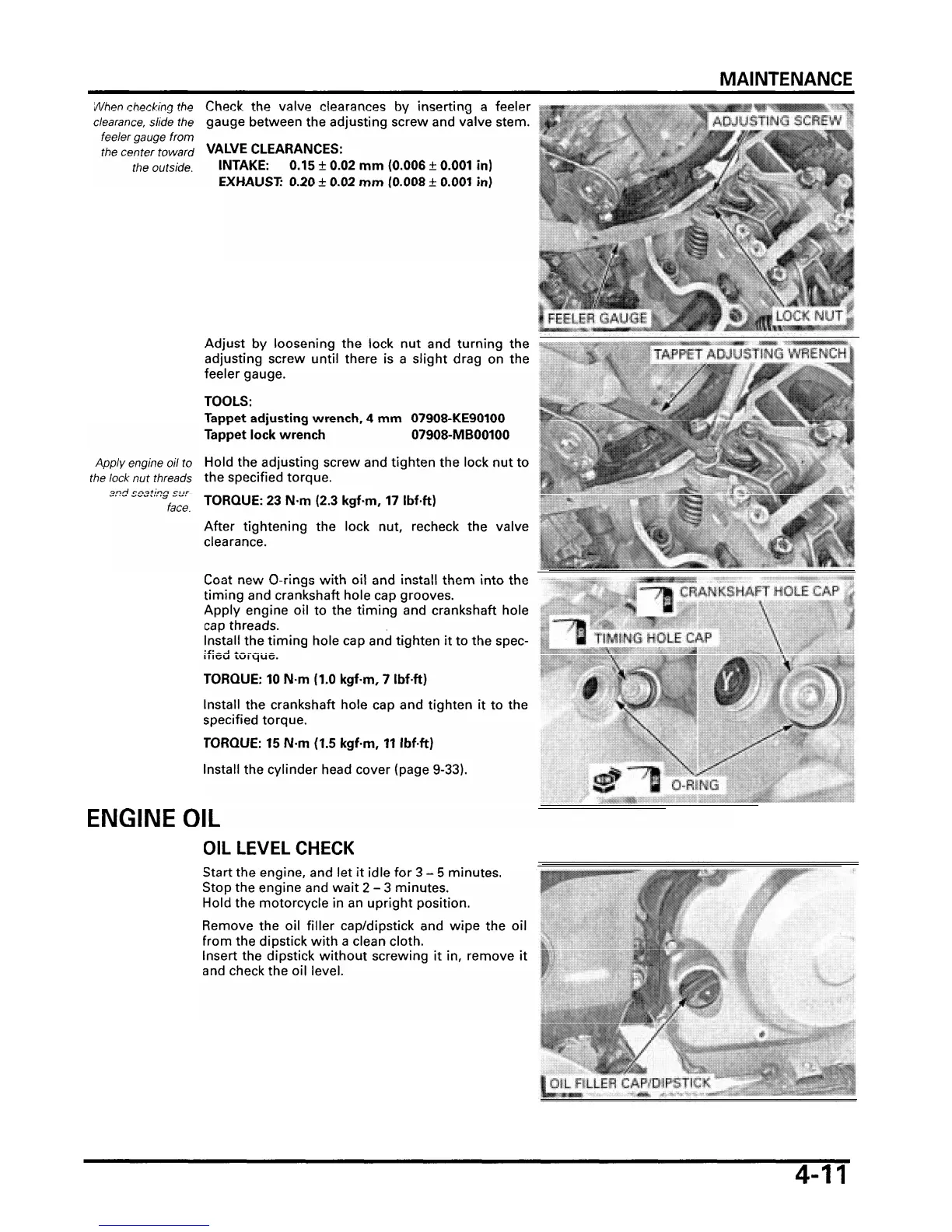

MAINTENANCE
When checking the
clearance, slide the
feeler gauge from
the center toward
the outside.
Apply engine oil to
the lock nut threads
and seating sur-
face.
Check the valve clearances by inserting a feeler
gauge between the adjusting screw and valve stem.
VALVE CLEARANCES:
INTAKE: 0.15
+ 0.02 mm (0.006 + 0.001 in)
adjusting screw until there is a slight drag on the
feeler gauge.
TOOLS:
Tappet lock wrench 07908-MB00100
Hold the adjusting screw and tighten the lock nut to
the specified torque.
TORQUE: 23 N.m (2.3 kgf-m, 17 Ibfmft)
After tightening the lock nut, recheck the valve
clearance.
timing and crankshaft hole cap grooves.
Apply engine oil to the timing and crankshaft hole
cap threads.
Install the timing hole cap and tighten it to the spec-
ified torque.
TORQUE: 10 N-m (1.0 kgfvm, 7 Ibf-ft)
Install the crankshaft hole cap and tighten it to the
specified torque.
TORQUE: 15 Mm (1.5 kgf-m, 11 Ibf4t)
Install the cylinder head cover (page
9-33].
ENGINE OIL
OIL LEVEL CHECK
Start the engine, and let it idle for 3 - 5 minutes.
Stop the engine and wait
2 - 3 minutes.
Hold the motorcycle in an upright position.
Remove the oil filler capldipstick and wipe the oil
from the dipstick with a clean cloth.
Insert the dipstick without screwing
it in, remove it
and check the oil level.

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
