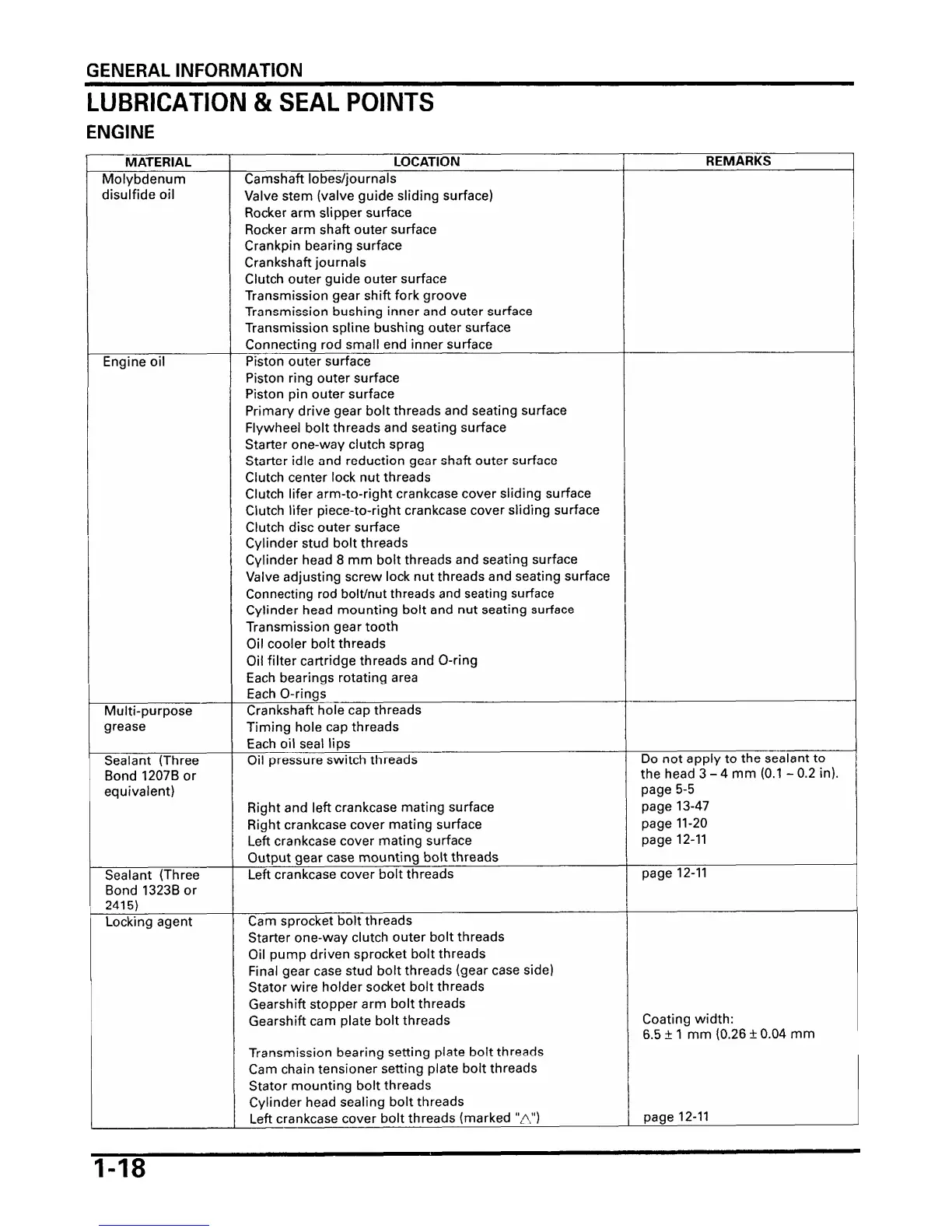

GENERAL INFORMATION
LUBRICATION
&
SEAL
POINTS
ENGINE
MATERIAL
Molybdenum
disulfide oil
grease
Bond 1207Bor
equivalent)
Locking agent
r
LOCATION
Camshaft lobes/journals
Valve stem (valve guide sliding surface)
Rocker arm slipper surface
Rocker arm shaft outer surface
Crankpin bearing surface
Crankshaft journals
Clutch outer guide outer surface
Transmission gear shift fork groove
n
Transmission spline bushing outer surface
Connecting rod small end inner surface
Piston outer surface
Piston ring outer surface
Piston pin outer surface
Primary drive gear bolt threads and seating surface
Flywheel bolt threads and seating surface
Starter one-way clutch sprag
Starter idle and reduction gear shaft outer surface
Clutch center lock nut threads
Clutch lifer arm-to-right crankcase cover sliding surface
Clutch lifer piece-to-right crankcase cover sliding surface
Clutch disc outer surface
Cylinder stud bolt threads
Cylinder head
8
mm bolt threads and seating surface
Valve adjusting screw lock nut threads and seating surface
Connecting rod boltlnut threads and seating surface
Transmission gear tooth
Oil cooler bolt threads
Oil filter cartridge threads and 0-ring
Each bearings rotating area
Each 0-rings
Crankshaft hole cap threads
Timing hole cap threads
Each
;l
seal lips
Oil pressure switch threads
Right and left crankcase mating surface
Right crankcase cover mating surface
Left crankcase cover mating surface
Output gear case mounting bolt threads
Left crankcase cover bolt threads
Cam sprocket bolt threads
Starter one-way clutch outer bolt threads
Oil pump driven sprocket bolt threads
Final gear case stud bolt threads (gear case side)
Stator wire holder socket bolt threads
Gearshift stopper arm bolt threads
Gearshift cam plate bolt threads
Transmission bearing setting plate bolt threads
Cam chain tensioner setting plate bolt threads
Stator mounting bolt threads
Cylinder head sealing bolt threads
Left crankcase cover bolt threads (marked
",A,")
REMARKS
Do not apply to the sealant to
the head
3
-
4
mm
(0.1
-
0.2 in).
page
5-5
page 13-47
page 11-20
page 12-11
page 12-11
Coating width:
6.5
f
1 mm (0.26
f
0.04 mm
page 12-11
