Honda NT700V Deauville Service Manual

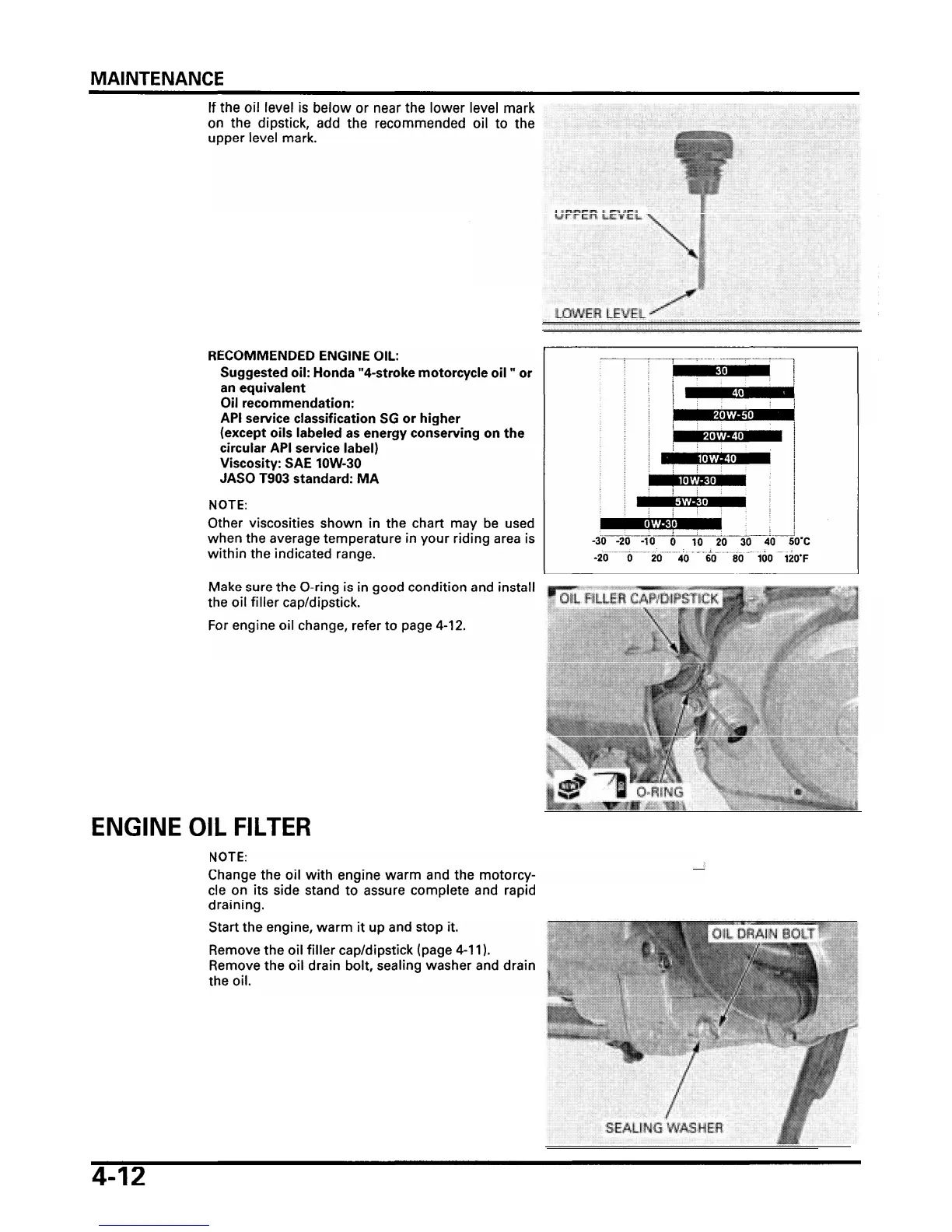

MAINTENANCE
If the oil level is below or near the lower level mark
on the dipstick, add the recommended oil to the
Suggested oil: Honda "4-stroke motorcycle oil
" or
an equivalent
Oil recommendation:
API service classification
SG or higher
(except oils labeled as energy conserving on the
circular API service label)
Viscosity: SAE
IOW-30
JASO T903 standard: MA
NOTE:
Other viscosities shown in the chart may be used
when the average temperature in your riding area is
within the indicated range.
Make sure the 0-ring is in good condition
the oil filler capldipstick.
and
install
For engine oil change, refer to page 4-12.
ENGINE OIL FILTER
NOTE:
Change the oil with engine warm and the motorcy-
cle on its side stand to assure complete and rapid
draining.
Remove the oil filler capldipstick (page 4-1 1
).
Remove the oil drain bolt, sealing washer and drain
the oil.

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
