Honda NT700V Deauville Service Manual

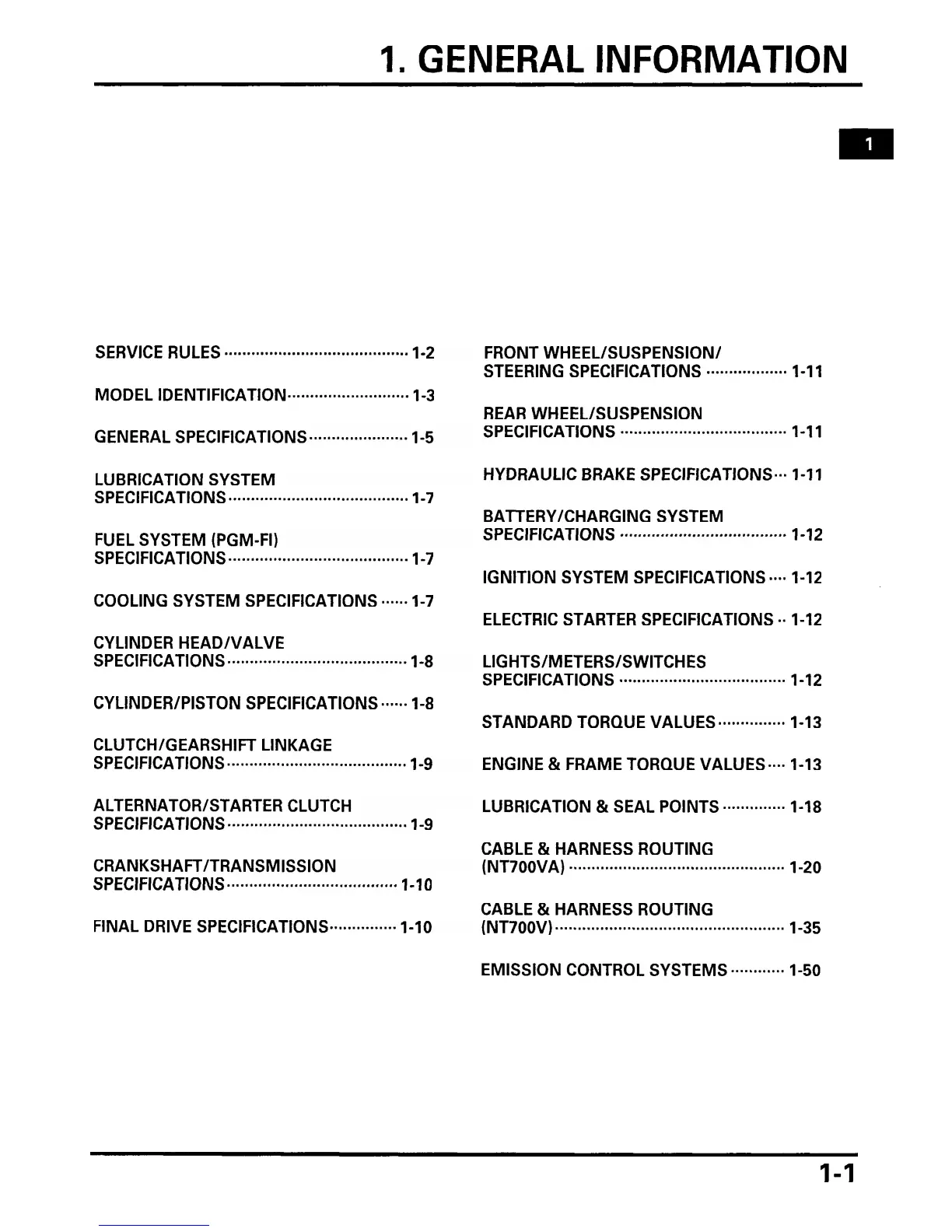

1. GENERAL INFORMATION
......................................................................................................................................................................................................
I
FRlNG SPECNCAflONS .................. 1-11
MODEL IBENTFICATION ...........................
REAR WHEELISUSPENSION
GENERAL SPECIFICATIONS SPtClFlCA
I IONS
.....................................
1-11
LUBRICATION SYSTFM
HYDRAULIC BRAKE SPECIFICATIONS-..
1-1 1
SPECIFICATIONS ........................................
BA ITERYICHARGUVG SYSTEM
FUEL SYSTEM (PGM-FI) SPtClFlCATlONS
.....................................
1-12
SPEClmCATlONS ..... ........... ........ .... ..... .... 1-7
IGMTION SYSfEM SPECIFICATIONS 1-12
COOLING SYSTEM SPECIFICATIONS
ELECTRIC STARTER SPECIFICATIONS
1-12
CYLINDER HEADIVALVE
SPEClFlCATlONS
........................................ 1-8 LIGHTSIMETERSISWITCHES
SPEClFlCATlONS
..................................... 1-12
CYLINDERIPISTON SPECIFICATIONS --.-.- 1-8
STANDARD TORQUE VALUES *.....-----.--. 1-13
CLUTCHIGEARSHIFT LINKAGE
SPEClFlCATlONS
....... .... . . .... .... .. .... ..... . ...... . 1-9
ENGINE & FRAME TORQUE VALUES---- 1-13
ALTERNATORISTARTER CLUTCH
LUBRICATION
& SEAL POINTS ---.....------ 1-18
SPEClFlCATlONS ..... .. . ..... . ..... .. .. .. .. ....... ..... . 1-9
CABLE & HARNESS ROUTING
CRANKSHAFTITRANSMISSION
(NT~OOVA)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
SPECIFICATIONS .......................... ..... 1-10
CABLE & HARNESS ROUTING
FINAL DRIVE SPECIFICATIONS-.-.-.-.---..--
1-10
(NT7OOV) . .. .. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-35
EMISSION CONTROL SYSTEMS ............ 1-50

Honda NT700V Deauville Specifications

General

Displacement	680 cc
Bore x Stroke	81 mm x 66 mm
Compression Ratio	10.0:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	5-speed
Final Drive	Shaft
Front Tire	120/70 ZR17
Engine Type	Liquid-cooled, 4-stroke, SOHC, 52° V-twin
Max Power	65 hp (48 kW) @ 8000 rpm
Ignition	Computer-controlled digital with electronic advance
Front Suspension	41 mm telescopic fork, 115 mm travel
Rear Suspension	Single shock, Pro-Link swingarm, 120 mm travel
Front Brakes	296 mm dual hydraulic disc
Rear Brakes	276 mm hydraulic disc
Rear Tire	150/70 ZR17
Seat Height	805 mm
Fuel Capacity	19.7 liters
Wheelbase	1, 475 mm (58.1 inches)
