Server component identification 13

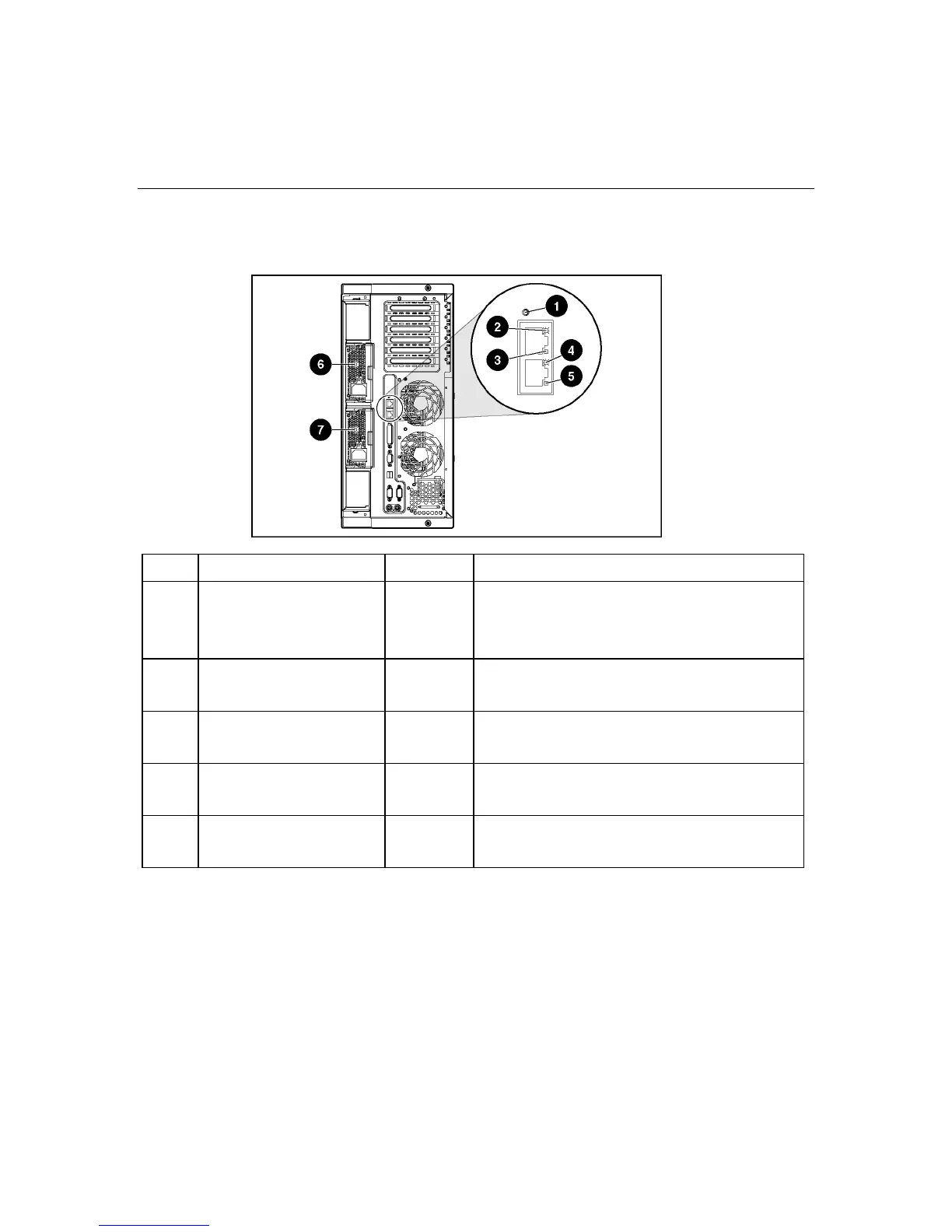

Rear panel LEDs and buttons
Item Description LED Color Status
1 Unit ID LED Blue On = Activated
Flashing = System remotely managed
Off = Deactivated
2 NIC Activity LED
(Integrated NC7781)
Green On or flashing = Linked to network
Off = Not linked to network
3 NIC Link LED
(Integrated NC7781)
Green On = Network activity
Off = No network activity
4 iLO NIC Activity LED Green On or flashing = Network activity
Off = No network activity
5 iLO NIC Link LED Green On = Linked to network
Off = Not linked to network
