SCSI IDs and SAS-SATA device numbers
The server supports single- or dual-channel SCSI hard drive configurations. The
single-channel configuration (simplex) supports up to six hard drives on SCSI
channel 1. The dual-channel configuration (duplex) supports two hard drives on
SCSI channel 2 (SCSI IDs 4 and 5), and up to four hard drives on SCSI channel
1 (SCSI IDs 0 through 3).
The server supports a combination of up to eight SAS and SATA hard drives in
the optional SAS-SATA hard drive cage. SAS-SATA devices are numbered 1
through 8.

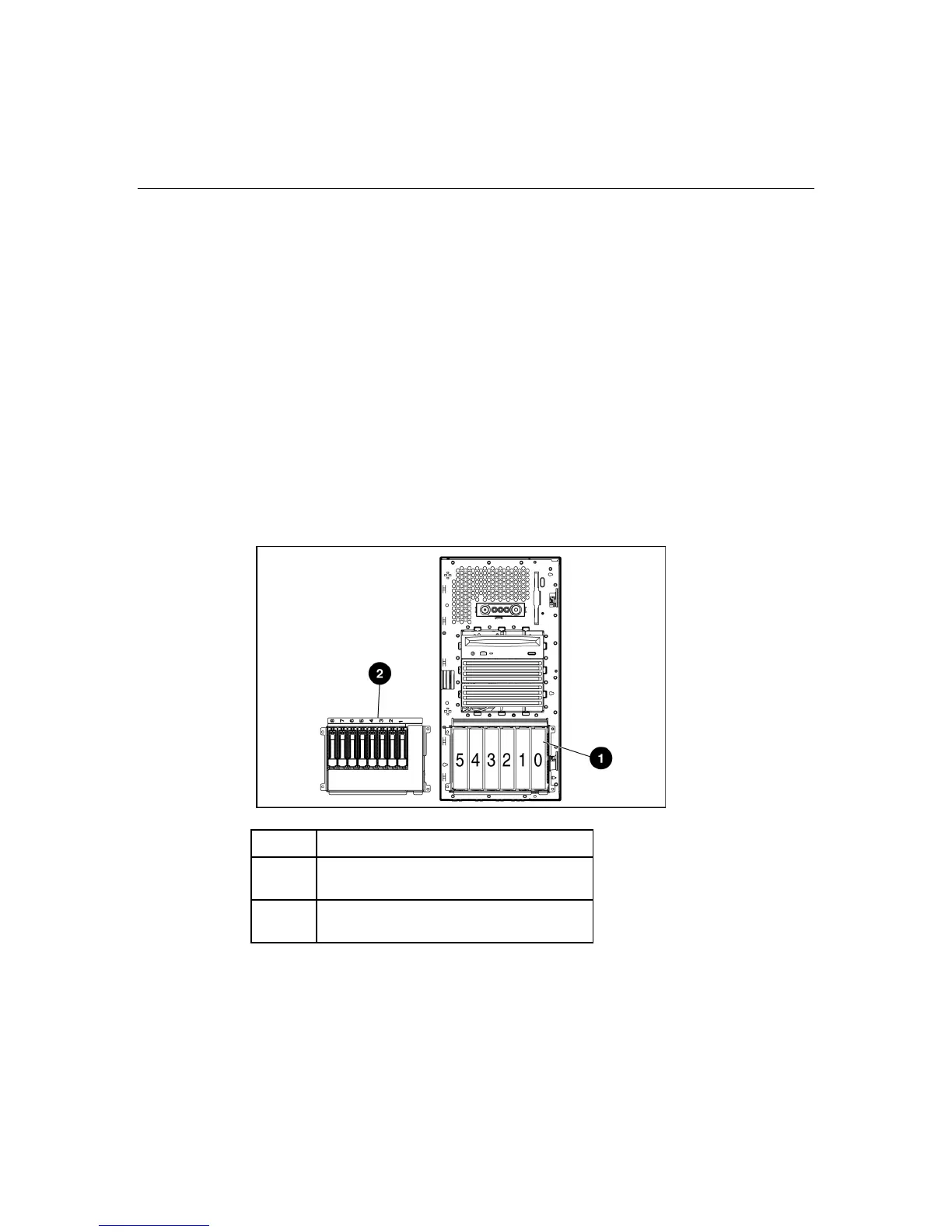

The SCSI IDs for both simplex and duplex configurations, as well as SAS-SATA
device numbers, are illustrated. HP recommends populating hard drive bays
starting with the lowest SCSI ID or device number.
Item Description
1 SCSI hard drive cage (SCSI IDs 0
through 5)
2 SAS-SATA hard drive cage (Device
numbers 1 through 8)
