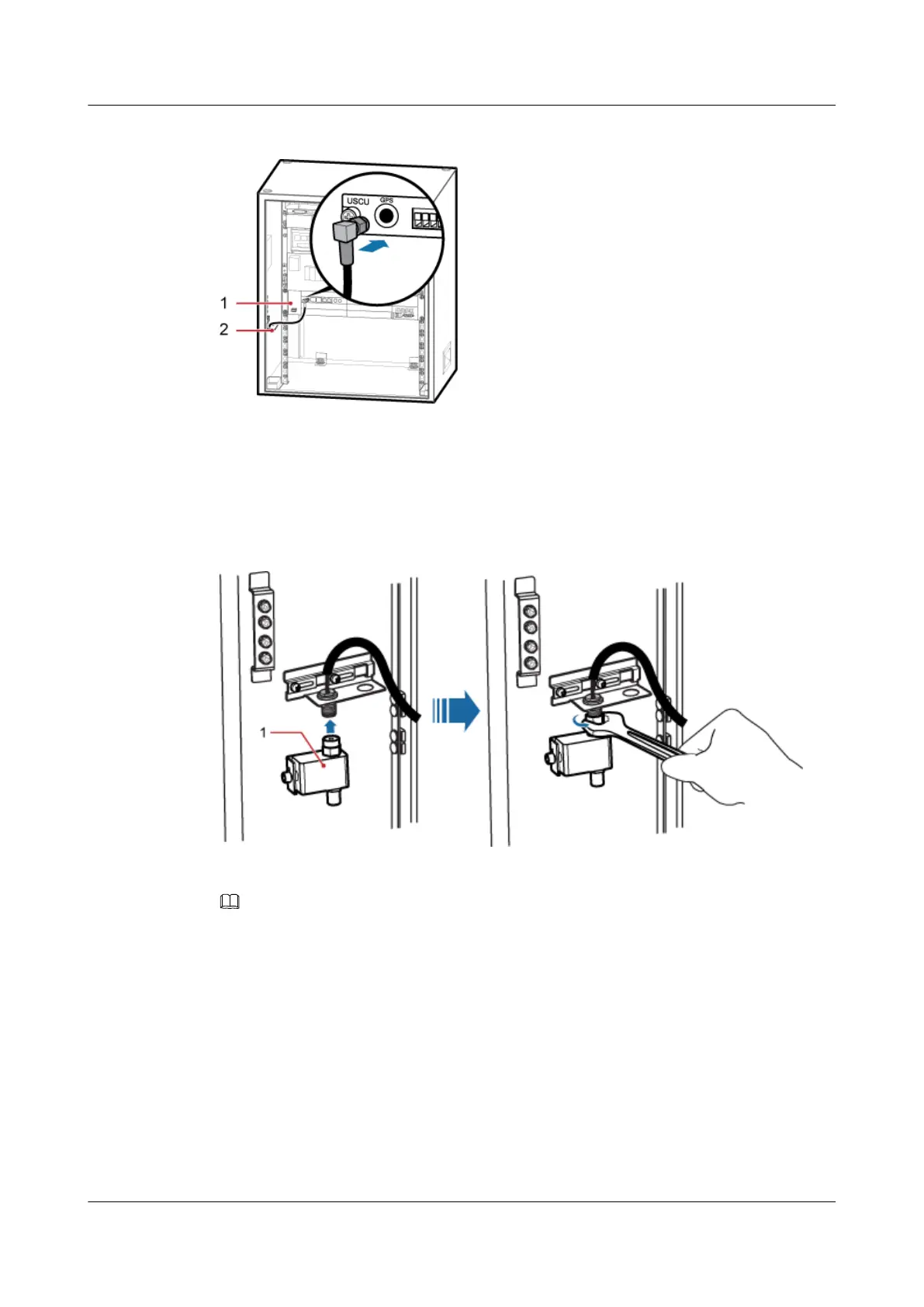

Figure 7-60 Installing the GPS clock signal cable on the USCU
(1) BBU (2) Support for the GPS
Step 7 Install the GPS surge protector, as shown in Figure 7-61.
Figure 7-61 Installing the GPS surge protector
(1) GPS surge protector
NOTE
The figure of the GPS surge protector is for reference only. The actual appearance may be different.
Step 8 Install the GPS jumper, as shown in Figure 7-62.
DBS3900 (Ver.B)
Installation Guide
7 Outdoor Scenario with DC Power Supply (BBU Installed
in a TMC11H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
187
To Next Page
