Maintenance
9-48

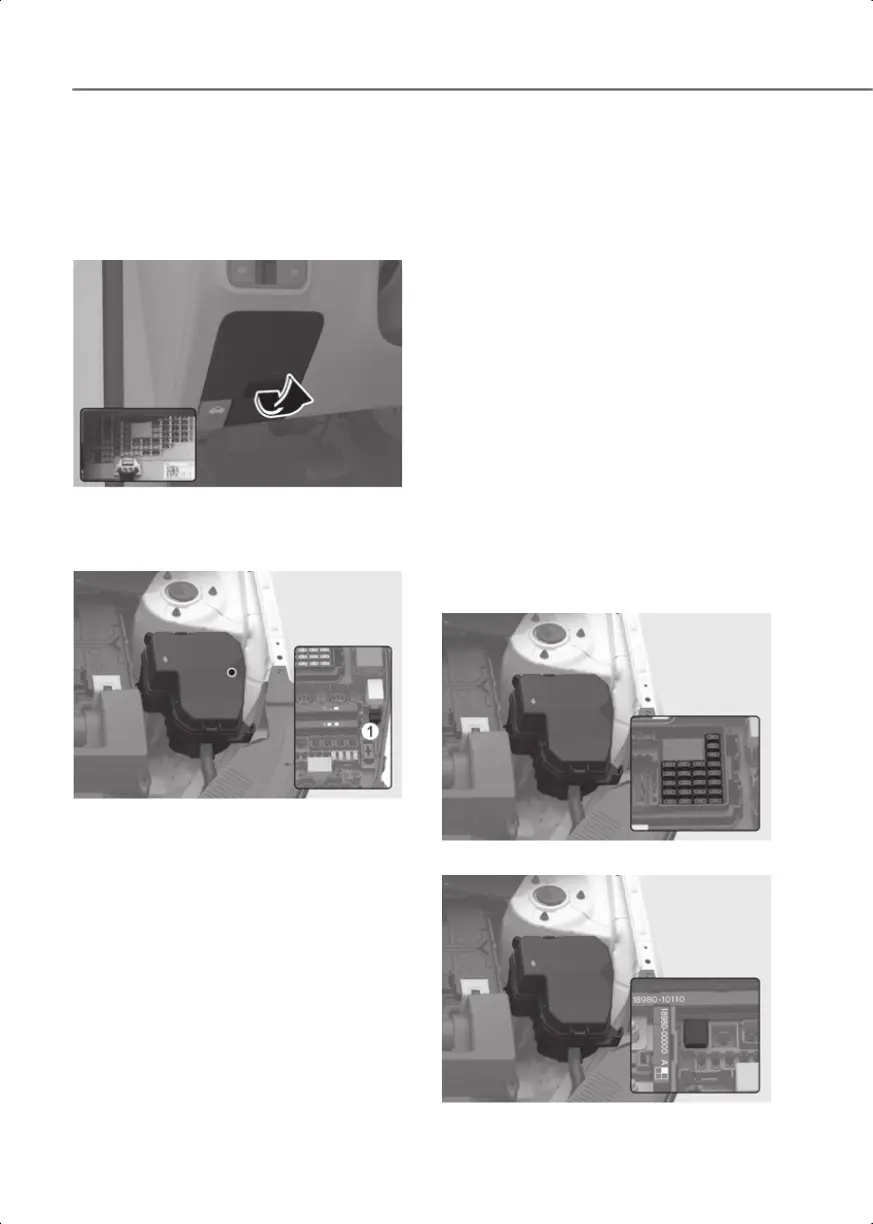

Instrument panel fuse
replacement
1. Turn off the vehicle.
2. Turn off all other switches.
3. Open the fuse panel cover.
2C_InstrumentPanelFuseReplacement
4. Refer to the label on the inside of the
fuse panel cover to locate the
suspected fuse location.
2C_EngineRoomFuseReplacement
5. Pull the suspected fuse straight out.
Use the removal tool (1) provided in the
engine compartment fuses panel
cover.
6.Check the removed fuse and replace it
if it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the engine compartment fuse panel).
7. Push in a new fuse of the same rating,
and make sure it fits tightly in the clips.
If it is not tight, we recommend that you
contact an authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the headlights or other electrical
components do not work and the fuses
are undamaged, check the fuse panel in
the engine compartment.
Engine compartment panel
fuse replacement
Blade fuse / Cartridge fuse
1. Turn off the vehicle.
2. Turn off all other switches.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Refer to the label on the inside of the
fuse panel cover to locate the
suspected fuse location.
Blade type
2C_EngineRoomFuseReplacement_2
Cartridge type
2C_EngineRoomFuseReplacement_3
