AquaLink
®
Touch™ Owner's Manual
4.2.1 Adding Devices to the Circuit List
Adding new devices to the circuit list on the
SCHEDULE screen is a two-steps procedure. First, you
select and add the device to the circuit list and then you
program it as desired.

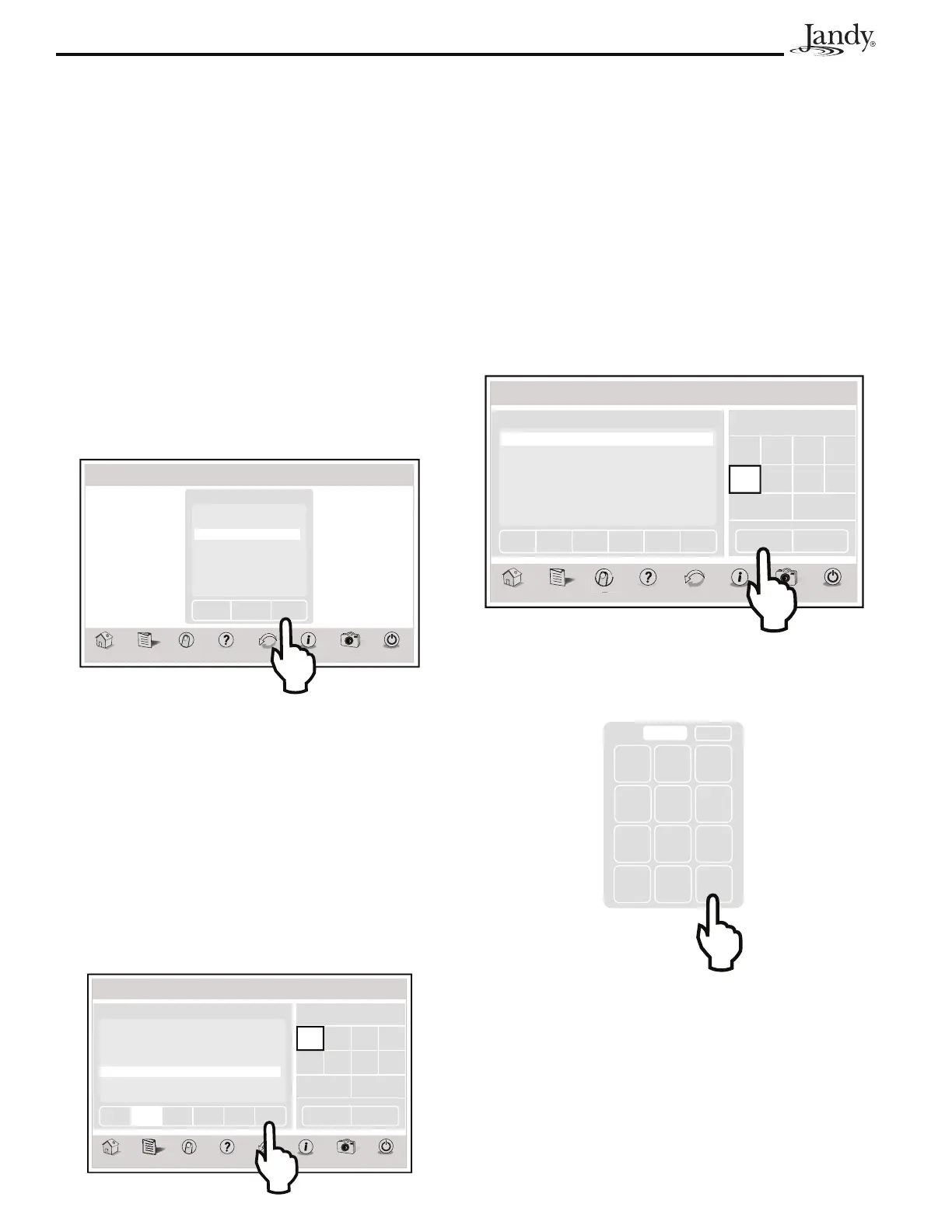

First Step - Selecting the new device
MENU > SCHEDULE > SCHEDULE DEVICES
From the SCHEDULE screen, in the circuit schedule
list, touch the NEW button to display the screen below.
From the SCHEDULE DEVICES screen, in the
DEVICES list, touch the desired equipment. Then,
touch the SELECT button to save your selection and
you will be automatically returned to the SCHEDULE
screen.
Thu January 1, 2009 3:03 PM
Schedule Devices
H
om
e
Menu OneTouch Help Back Status Photos
Power
Filter Pump
VSP Pump
Spa
Pool Heat
Spa Heat
Chiller
Aux 1
Aux 2
Devices
Page
Down
Page
Up
Select
Use PAGE UP/DOWN to scroll the devices list.
NOTE Only one piece of equipment can be selected at
a time.
Second Step - Programing the new device
On the SCHEDULE screen, the added equipment will
be displayed and highlighted in the circuit list. Also, the
EDIT will be highlighted.
Enter the day for the new device. Touch SAVE when
finished. Repeat this procedure to add more devices to
the circuit list.
Thu January 1, 2009 3:03 PM
Schedule
H
om
e
Menu OneTouch Help Back Status
Circuit Start Time Stop Time Days
VSP 7:00 AM 6:00 PM Th, Wknd
Pool 8:00 AM 5:00 PM All
Spa 7:00 PM 10:00 PM F, Sa
Spa 5:00 PM 9:00 PM M, W
Spa Heat 6:00 PM 8:00 PM All
Pool Light 6:00 PM 8:00 PM All
Page
Down
Page
Up
Save
Run days
Start Time Stop Time
Photos
Power
All M Tu W
Th F Sa Su
Week Days Weekends
Add Edit Delete
4.2.2 ON/OFF Times
MENU > SCHEDULE
From the SCHEDULE screen, in the circuit schedule
list, touch the desired equipment to be scheduled. Select
ADD, then touch the desired equipment to be scheduled
from the circuit list. Touch the EDIT button.
Be sure to touch SAVE button periodically.
From the RUN DAYS box, touch the desired run day
and then touch the START TIME button to display the
numeric keypad screen.
Thu January 1, 2009 3:03 PM
Schedule
H
o
m
e
Menu OneTouch Help Back Status
Circuit Start Time Stop Time Days
VSP 7:00 AM 6:00 PM Th, Wknd
Pool 8:00 AM 5:00 PM All
Spa 7:00 PM 10:00 PM F, Sa
Spa 5:00 PM 9:00 PM M, W
Spa Heat 6:00 PM 8:00 PM All
Pool Light 6:00 PM 8:00 PM All
Page
Down
Page
Up
Add Edit Delete
Save
Run Days
Start Time Stop Time
All M Tu W
Th F Sa Su
Week Days Weekends
Photos
Power
Enter the desired time. Toggle the AM/PM button to
select your choice. Touch ENTER when finished.
7 8 9
4 5 6
1 2 3
0
Clear Enter
01:00
PM
