AquaLink
®
Touch™ Owner's Manual

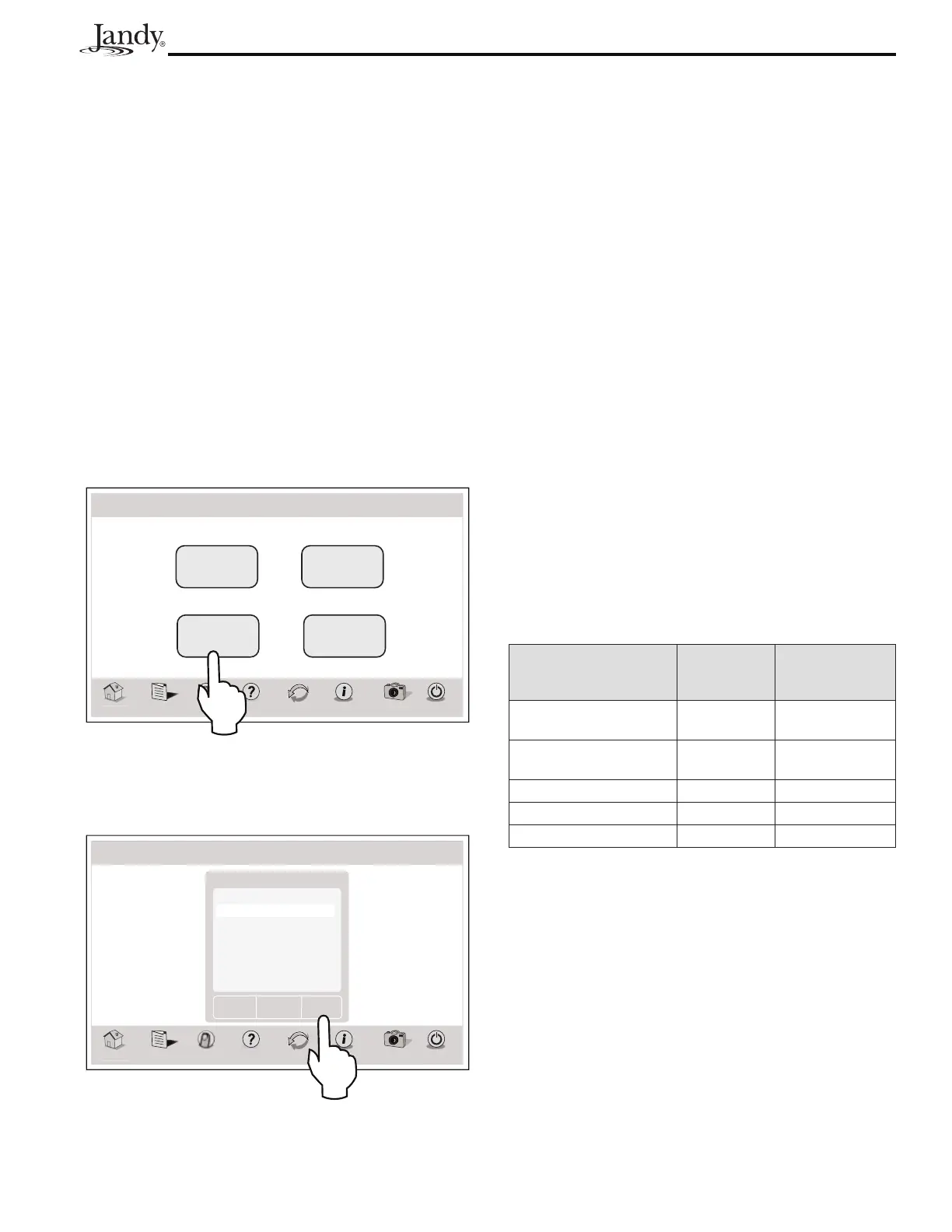

10.3 Color Lights
NOTE This equipment may not be part of your system.
Please check with your installer.
The COLOR LIGHTS screen is used to select the color
light type (Jandy
Colors, Jandy LED Light, SAm
TM
/
SAL
®
, or Color Logic
®
), and to assign the color light to
an available auxiliary relay.
10.3.1 To Set Up Color Lights
MENU > SYSTEM SETUP > COLOR LIGHTS
From the SYSTEM SETUP screen, touch COLOR
LIGHTS screen to display the COLOR LIGHT SETUP
screen. This screen shows four choices: Jandy LED
Light, Jandy Colors, Hayward
®
Color Logic, and
Pentair
®
SAm/SAL.
Color Light Setup
H
om
e
Menu OneTouch Help Back Status Photos
Power
Jandy LED
WaterColors
JandyColors
Hayward
Color Logic
Pentair
Sam/Sal
Thu January 1, 2009 3:03 PM
Touch your choice of color light type to display the
COLOR LIGHT ASSIGN AUX screen. This screen
shows a list of available auxiliaries.
Thu Jan 1, 2009 3:03 p.m.
H
om
e
Menu OneTouch Help Back Status Photos
Power
Color Light Assign Aux
Aux 1 JC
Aux 2 JL
Aux 3
Aux 4
Aux 5
Aux 6
Aux 7
Assign Aux
Page
Down
Page
Up
Save
Touch an auxiliary to be assigned to a color light. “JC”
will appear next to the AUX if a Jandy Colors has been
assigned. “JL” will appear next to the AUX if a Jandy
LED Light has been assigned. "SL" will appear next to
the AUX if a SAm/SAL Light has been assigned. "CL"
will appear next to the AUX if a Color Logic Light has
been assigned.
If the AUX is touched again, while on the same selected
item, the “JC”, "JL", "SL", or "CL" will disappear
meaning that a color light is no longer being controlled
by the auxiliary.
Use the PAGE UP/PAGE DOWN button to view
additional auxiliaries. Touch the SAVE button when
finished.
10.4 ESP Link (Seasonal Adjust)
The SEASONAL ADJUST menu is a feature that will
automatically adjust filtration cycles, chlorine levels,
water leveling, and sprinkler times based on the seasons,
when outdoor temperatures typically change.
NOTE The table below shows the various default
seasonal adjust values and their respective
adjustable range.
DEFAULT
ADJUST
VALUE
ADJUSTABLE
RANGE
FILTRATION 1 hour 0.5 hr, 1 hr,
1.5 hrs, 2 hrs
CLEANER 1 hour 0.5 hr, 1 hr,
1.5 hrs, 2 hrs
AQUAPURE
®
15% 10%, 20%
SPRINKLERS 5 minutes 1 - 10 minutes
FILL LINE 5 minutes not adjustable
