Page 54
AquaLink
®
Touch™ Owner's Manual

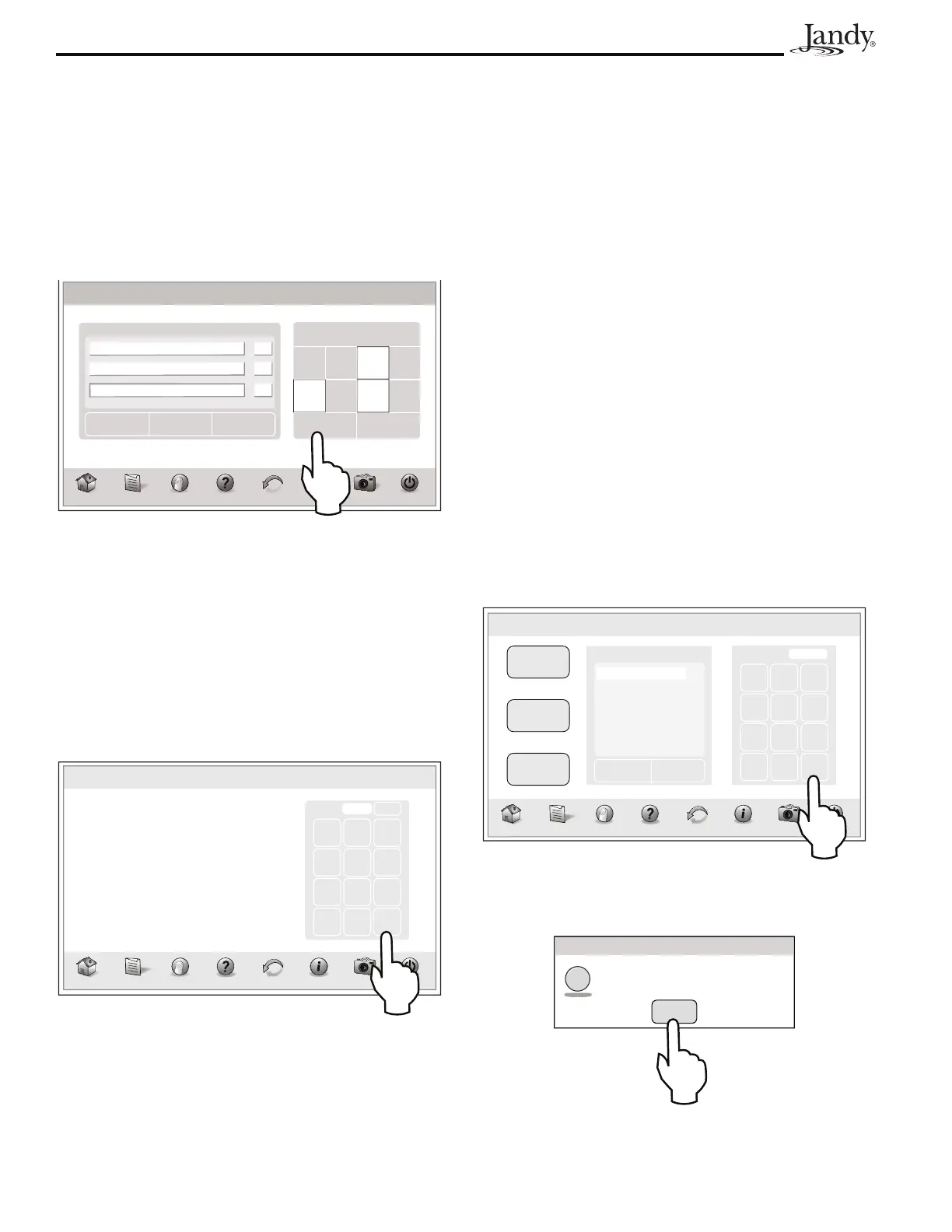

13.2.1 To Set Up the Water Days
You can choose All to run the program all week long,
Even Days, Odd Days or select the desired day(s) to run
the enable programs.
From the SPRINKLER SETUP screen, enable the
program # by touching the ON button.
Home Menu OneTouch Help Back Status Photos
Power
Thu January 1, 2009 3:03 PM
Sprinkler Setup
Pgm
Start Time Days Enable
Days of the Week
Start Time Set Duration Save
1 7:00 AM
2 8:00 AM
3 6:00 AM
M, F Off
Tu, Th, Sa On
M,Tu,W,Th,F,Sa,Su Off
All M Tu W
Th F Sa Su
Even Days Odd Days
13.2.2 To Set Up the Sprinklers Program
Start Time menu
From the SPRINKLER SETUP screen, touch the
START TIME button to display the numeric keyboard.
Enter the start time and touch the ENTER button to save
it.
Home Menu OneTouch Help Back Status Photos
Power
Sprinkler Setup
7 8 9
4 5 6
1 2 3
0
Clear Enter
Start: 600 AM
Thu January 1, 2009 3:03 PM
13.2.3 To Set Up the Sprinkler Valve
Duration Time
The Sprinkler Control module will control up to eight
(8) valves, plus one (1) master valve. When a program
is run, the master valve always activates 1-2 seconds
before the first programmed valve in the program.
Valves are then activated in numerical order for a time
equal to their duration setting. There is a 1-2 second
delay between valve activations.
Valve durations are adjustable from OFF to 240
minutes, in increments of one (1) minute from OFF to
10 minutes, increments of 10 minutes from 10 to 60
minutes, and increments of 30 minutes from 60 to 240
minutes (4 hours).
After setting the water DAYS, touch the DURATION
button to display the SPRINKLER SET DURATION
screen. Touch the PROGRAM button to be set up.
Touch the PAGE UP/DOWN button to select the desired
VALVE. Touch the DURATION time and using the
numeric keyboard enter the new duration time. Touch
the ENTER button when finished.
Home Menu OneTouch Help Back Status Photos
Power
Sprinkler Set Duration
Thu January 1, 2009 3:03 PM
Program
1
Program
2
Program
3
7 8 9
4 5 6
1 2 3
0
Set Minutes: 30
Clear Enter
Page
Up
Page
Down
Valve
1 10
2 30
3 Off
4 Off
5 Off
6 Off
7 Off
Duration (mins)
If you enter a a value greater than 240 minutes, the
following error screen will be displayed.
Valve duration must be
0 - 240 Minutes (0 - 4 hours)
Close
Error
X
