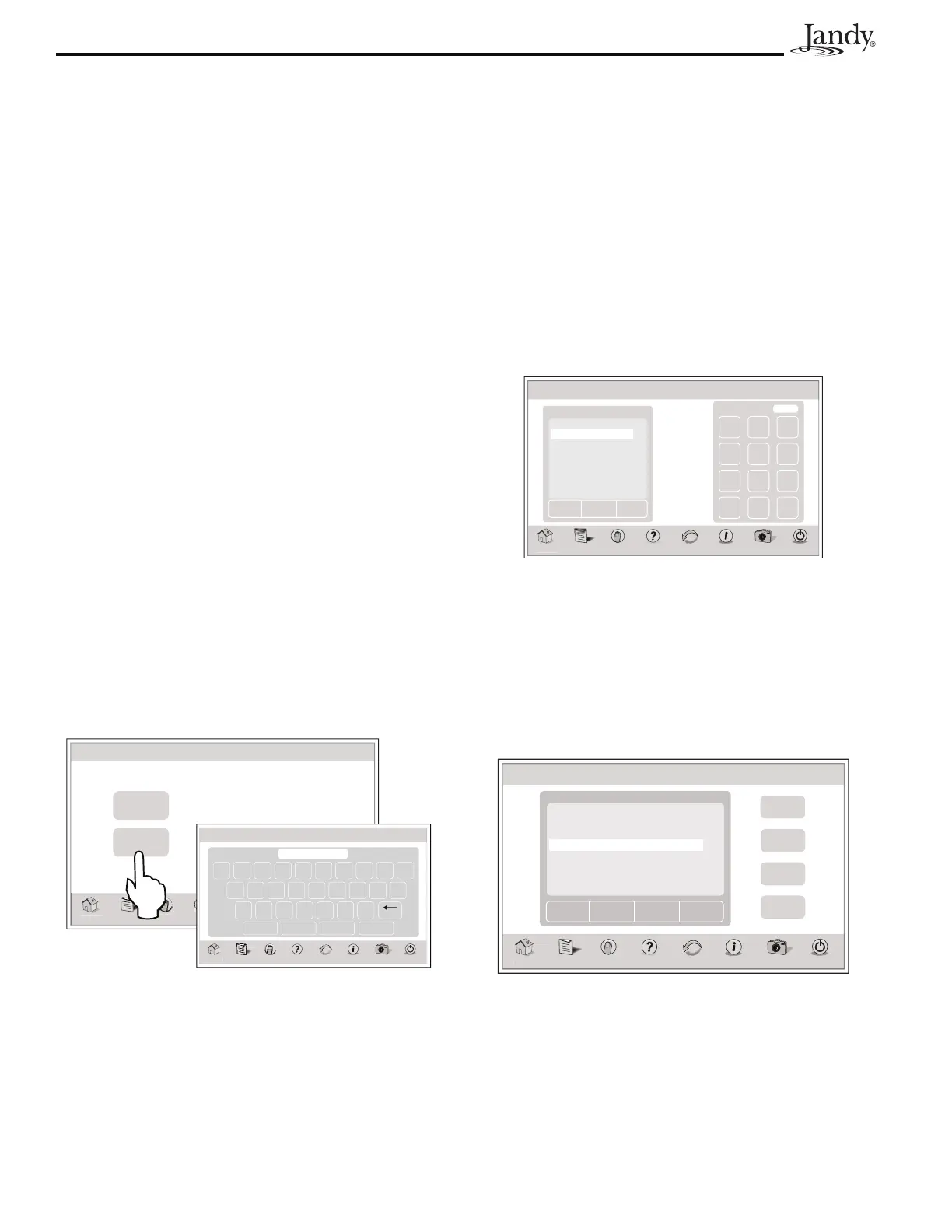

AquaLink
®
Touch™ Owner's Manual
Activation temperature can be adjusted between
34°F and 42°F. Default freeze protection activation
temperature is 38º F and will deactivate within 2°F.
10.11.1 To Set Up Freeze Protection
The FREEZE PROTECT menu can be accesed from
the SYSTEM SETUP screen as well as the LABEL
AUXILIARES screen.
MENU > SYSTEM SETUP > FREEZE PROTECT
Touch the FREEZE PROTECT button on the SYSTEM
SETUP menu to display the FREEZE PROTECT menu.
Ho
m
e
Menu OneTouch Help Back Status
Photos
Power
Freeze Protect
F
reeze Protect
Page
Down
Page
Up
Save
Filter Pump
Spa X
Solar Heat
Rockfall
Aux 1
Aux 2
Aux 3
Devices On/Off
7 8 9
4 5 6
1 2 3
0
Clear Enter
Freeze Temp: 38
Thu January 1, 2009 3:03 PM
MENU > SYSTEM SETUP > LABEL AUX
From the SYSTEM SETUP screen, touch the LABEL
AUX button to display the LABEL AUXILIARIES
screen.
Touch the FREEZE PROTECT button on the LABEL
AUXILIARIES menu to display the FREEZE
PROTECT menu.
Label Auxiliaries
Circuit Circuit Name Freeze
Aux 1 Cleaner Yes
Aux 2 Low Speed Yes
Aux 3 Spillover Yes
Aux 4 Pool Light JL No
Aux 5 Spa Light JL No
Aux 6 Fountain Yes
Aux 7 Blower No
Aux 8 None Yes
Freeze
Protect
Page
Down
Page
Up
Save
Water
Feature
Lights
Custom
General
Hom
e
Menu OneTouch Help Back Status
Photos
Power
Thu January 1, 2009 3:03 PM
Select any piece of equipment in the DEVICE list and
change the temperature using the numeric keypad.
Once the temperature is set, touch the ENTER button to
move to the next screen to assign freeze protection to a
selected piece of equip ment. If an incorrect value was
entered, touch the CLEAR button on the keypad and try
again.
10.10 RS InterLink
NOTE This equipment may not be part of your system.
Please check with your installer.
The RS InterLink menu allows a single controller to
access two main power centers on the AquaLink RS
system.
For ease of operation, it is suggested that each power
center be given a custom product name that would allow
a user to identify to which power center the controller is
connected. During operation, this name will appear on
the AquaLink Touch Date/Time screen.
NOTE The RS InterLink feature must be enabled
before it may be accessed from the OTHER
EQUIPMENT ON/OFF screen.
10.10.1 To Set Up RS Intelink
MENU > SYSTEM SETUP > RS INTERLINK
From the SYSTEM SETUP screen, touch the RS
INTERLINK button and the INTERLINK SETUP
screen will be displayed. In this screen, touch the
ENABLED button to set the RS INTERLINK.
If you want to rename the power center, touch the
CUSTOM LABEL to display the keyboard screen.
See Section 4.9.4, "Custom Label".
Ho
m
e
Menu OneTouch Help Back Status
Photos
Power
Enabled
Custom Label
InterLink Setup
Custom Label
Q W E R T Y U I O P
A S D F G H J K L
Z X C V B N M
Shift Space Number Pad Save
Back
POWER CENTER B
Thu January 1, 2009 3:03 PM
Thu January 1, 2009 3:03 PM
H
ome Menu OneTouch Help Back Status
Photos
Power
10.11 Freeze Protection
Use Freeze Protection menu to assign freeze protection
to your pool and spa equipment. When a piece of
equipment is assigned to freeze protection, it will turn
on when the AquaLink RS detects freezing conditions.
The main filter pump is freeze-protected as a default.
