AquaLink
®
Touch™ Owner's Manual

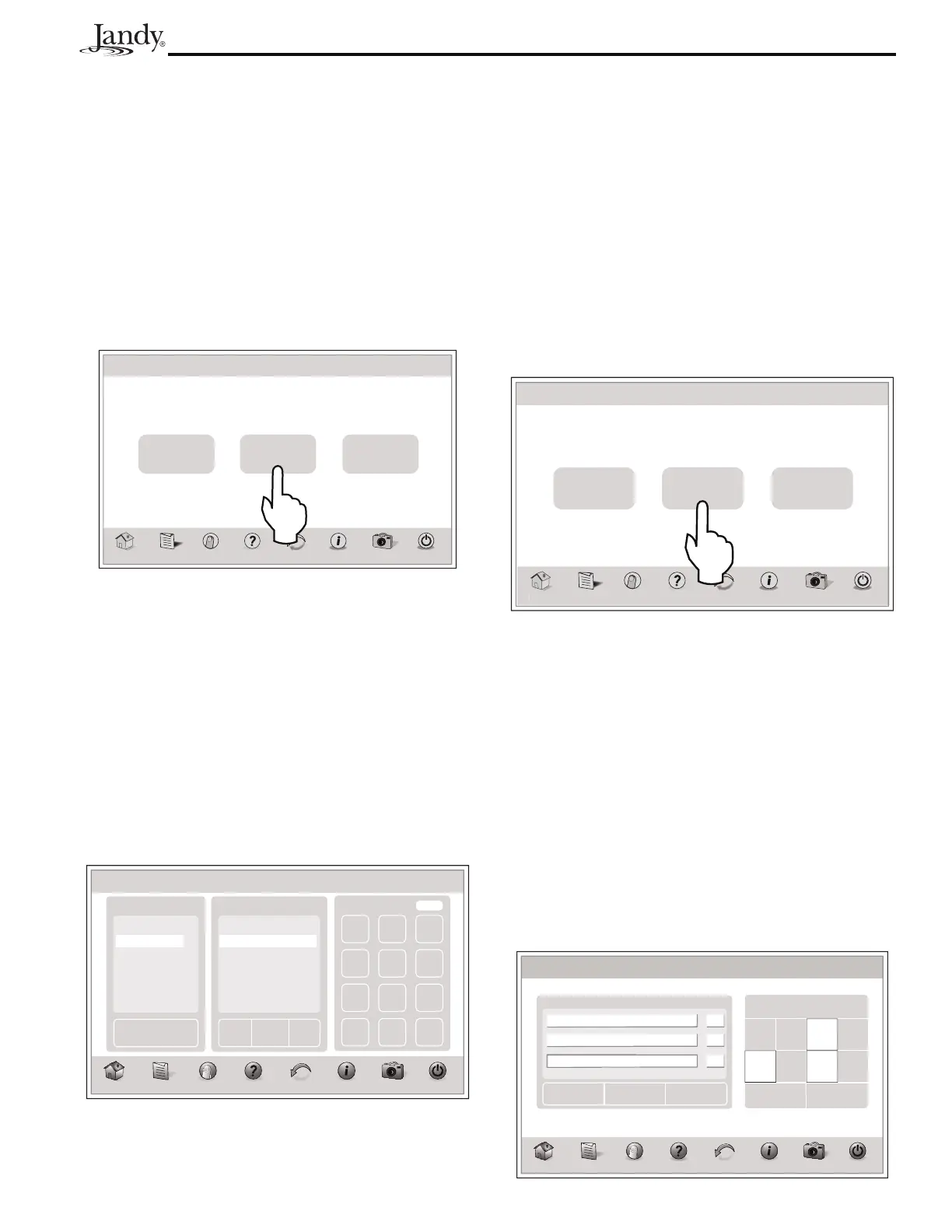

13.1.3 Manually Starting a Sprinkler
Program
Selecting MANUAL START presents the user with
a screen providing the option to start all enabled
programs, or any individual enabled program, or a
single valve.
SPRINKLERS > SPRINKLER OPERATION > MANUAL START
Touch the MANUAL START button, on the
SPRINKLER OPERATION screen.
H
o
m
e
Menu OneTouch Help Back Status
Photos
Power
Cancel
Today
Manual
Start
Programs
Enable
Sprinkler Operation
Thu January 1, 2009 3:03 PM
Continue on the screen shown below and touch the
desired PROGRAM # and touch the START button. The
program is started immediately and runs to completion
unless interrupted by the user.
If ALL PROGRAMS is selected, all enabled programs
are run in succession, in numerical order. The sprinkler
system enters ENA state at the end of manually started
programs.
NOTE If a program is not set to ON, it does not appear
in the MANUAL START list.
Home Menu OneTouch Help Back Status Photos
Power
7 8 9
4 5 6
1 2 3
0
Clear Enter
Set to: 0:05
Start
Manual Program
Program 1
Program 2
Program 3
All Programs
Start
Manual Valve Time
Valve 1 :10
Valve 2 :05
Valve 3 Off
Valve 4 Off
Valve 5 1:30
Page
Down
Page
Up
Sprinkler Operation
Thu January 1, 2009 3:03 PM
13.1.4 Disabling the Sprinkler System
When the sprinkler control system is disabled, all
running programs are canceled and no programs will
run, regardless of their individual ON/OFF setting.
OTHER DEVICES ON/OFF > SPRINKLERS > PROGRAMS
To disable the sprinkler system, touch the PROGRAMS
DISABLE button in the SPRINKLER OPERATION
screen.
After DISABLE PROGRAMS is selected, the system
enters the OFF state.
Ho
m
e
Menu OneTouch Help Back Status
Photos
Power
Cancel
Today
Manual
Start
Programs
Disable
Sprinkler Operation
Thu January 1, 2009 3:03 PM
NOTE This equipment may not be part of your system.
Please check with your installer.
13.2 Programming Sprinkler System
The AquaLink Touch Controller offers a versatile, easy
to use features to program your sprinkler system. Up to
three (3) programs can be scheduled with different Run
Days, Start Times and Durations.
MENU > SYSTEM SETUP > SPRINKLER SETUP
From the SYSTEM SETUP screen, touch the
SPRINKLER SETUP button to display the screen
shown below.
Home Menu OneTouch Help Back Status Photos
Power
Sprinkler Setup
Pgm
Start Time Days Enable
Days of the Week
Start Time Set Duration Save
1 7:00 AM
2 8:00 AM
3 6:00 AM
M, F Off
Tu, Th, Sa On
M,Tu,W,Th,F,Sa,Su Off
All M Tu W
Th F Sa Su
Even Days Odd Days
Thu January 1, 2009 3:03 PM
