AquaLink
®
Touch™ Owner's Manual
For solar heating to take place, the SOLAR HEAT (in
DEVICES ON/OFF) must be enabled, and also the filter
pump must be on. Solar temperature must be at least 5°
F above the water temperature and the water must be
cooler than the thermostat setting.
9.7 Auxiliary Equipment
The AUX modes control each of the auxiliary devices.
To assign a different name to an auxiliary device, use
the SYSTEM SETUP and LABEL AUX screen.

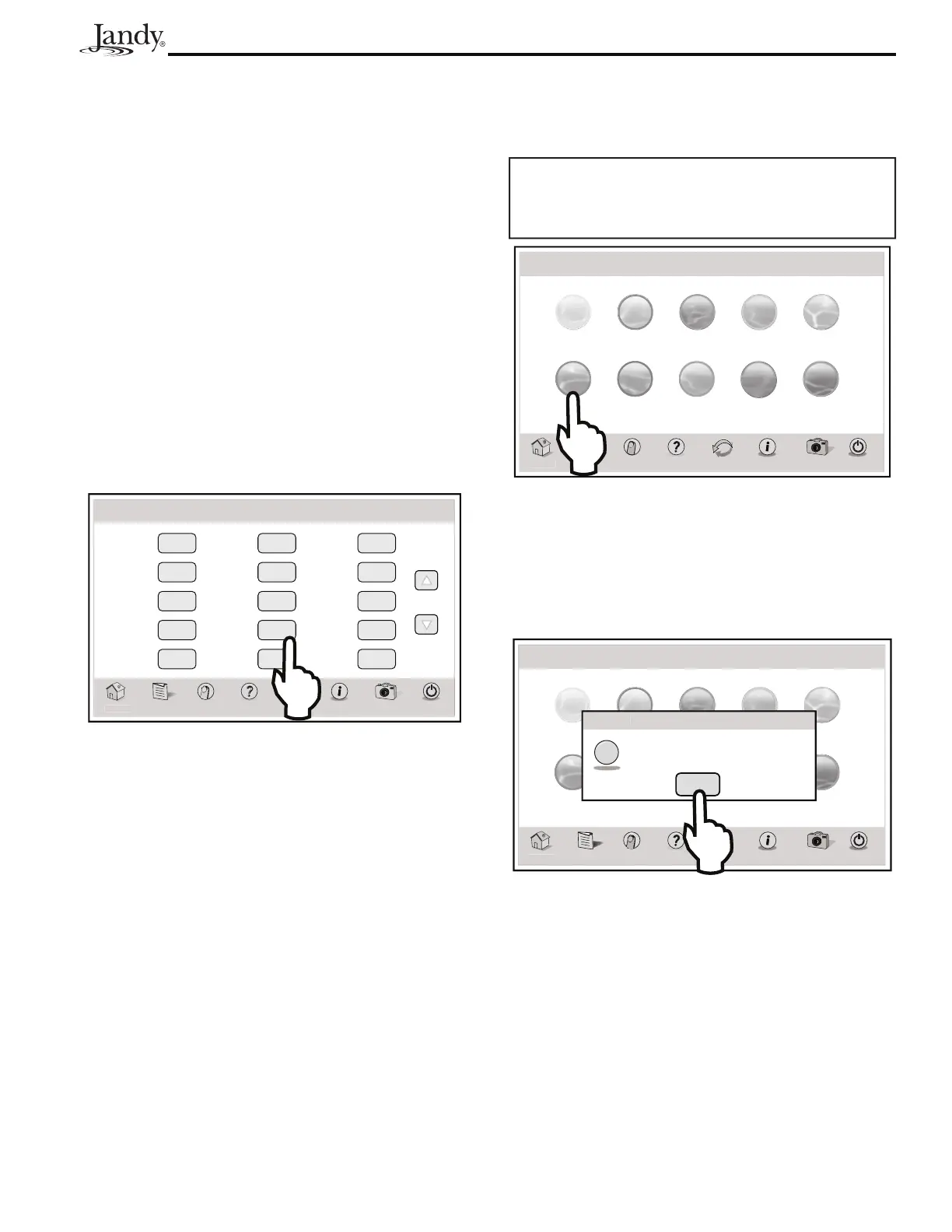

HOME > DEVICES > AUX3
From the HOME menu screen, touch the OTHER
DEVICES ON/OFF button to display the DEVICES
screen.
From the DEVICES screen, toggle the AUX3 button to
turn the auxiliary device ON or OFF.
Thu January 1, 2009 3:03 PM
Devices
Ho
m
e
Menu OneTouch Help Back Status
Photos
Power
Page
Filter
Pump
Variable
Speed
Spa
Pool Heat
Solar Heat
Sprinklers
Aux 1
Aux 2
Aux 3
Pool Light
Aux 5
Aux 6
Aux 7
Extra Aux
Off
Adj
On
Off
Off
On
On
Off
Off
Off
Off
Off
Off
Off
All Off
Touch the BACK button in the navigation bar to return to the
HOME screen.
9.8 Using Color Lights
NOTE This equipment may not be part of your system.
Please check with your installer.
The SET COLOR menu is used to set the color of a
color light and then turn the light on.
NOTE Prior to setting the color of the light, the light
must be assigned and controlled by an auxiliary
(for example, AUX 1). Please note that the
auxiliary control can be custom labeled.
HOME > OTHER DEVICES ON/OFF > AUX1 > SET COLORS
From the HOME screen, touch the OTHER DEVICES
ON/OFF button to display the DEVICES screen.
Touch the auxiliary assigned to the color light on the
DEVICES screen to display the SET COLORS screen
and touch the desired color light.
IMPORTANT Information
Do not activate this feature unless you are certain that
color lights are installed on your system
Thu January 1, 2009 3:03 PM
Set Colors
H
o
m
e
Menu OneTouch Help Back Status Photos
Power
Alpine White Sky Blue Cobalt Blue Caribbean Spring Green
Emerald Green Emerald Rose
Magenta Garnet Red Violet
If you select POOL LIGHT or SPA LIGHT from the
EQUIPMENT ON/OFF menu and the light is already
ON, touching the color light on the SET COLOR screen
will display a confirmation message "LIGHT WILL
TURN OFF IN 5 SECONDS. IF YOU WANT TO
CHANGE THE COLORS PRESS OK NOW”.
Thu January 1, 2009 3:03 PM
Set Colors
Home Menu OneTouch Help Back Status Photos
Power
Alpine White Sky Blue Cobalt Blue Caribbean Spring Green
Emerald Green Emerald Rose
Magenta Garnet Red Violet
All Off
Time
On
Off
Light will turn off in 5s. If you want to
change colors press OK now.
Confirm
C
onfirm
OK
?
If you touch the OK button, the SET COLOR screen
will be displayed and will allow you to select a different
color. If a different color is chosen, the light will reset
to Alpine White, rotate to the selected color, and then
automatically lock on to that color.
During the color rotation, the message “PLEASE
WAIT…CYCLING TO CHOSEN COLOR” will be
displayed.
