AquaLink
®
Touch™ Owner's Manual
Section 14. ChemLink™ Setup
The ChemLink controller automatically monitors and
maintains both the sanitizer and the pH balance in
swimming pools, spas, or any circulating water system
that requires water chemistry management.
14.1 To Set Up the ChemLink
NOTE Check with the installer before making changes
to the SYSTEM SETUP.
SYSTEM SETUP > SET CHEMLINK > CHEMLINK
From the SYSTEM SETUP screen, touch the SET
CHEMLINK button to display the CHEMLINK setup
screen.

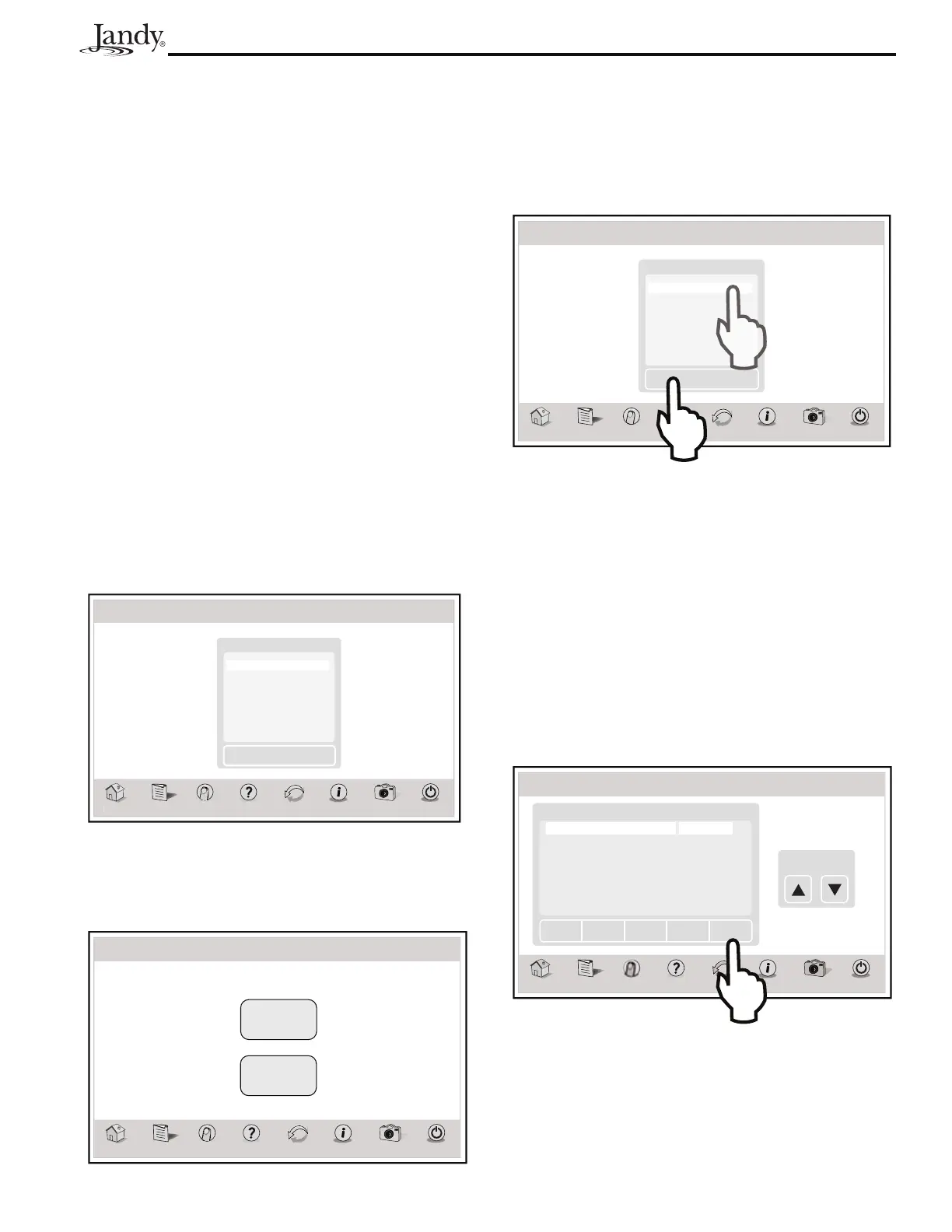

As shown below, the CHEMLINK setup screen
provides links to set up the ORP/pH balances, ORP/
pH manual feeds, and level switch. Also, provides the
current values for the ORP and pH levels.
If only one chemLink is present in the system, the
CHEMLINK setup screen is displayed automatically.
ChemLink
H
o
m
e
Menu OneTouch Help Back Status
Photos
Power
ORP 650
pH 7.5
ORP/pH Setup
ORP Manual Feed
pH Manual Feed
Level Switch
Select
ChemLink 1
Thu January 1, 2009 3:03 PM
If more than one chemlink is present, the screen will
display the links for additional chemlinks. To continue,
touch the button of the chemlink to be configured and
the CHEMLINK ORP/pH setup screen will appear.
ChemLink
H
ome Menu OneTouch Help Back Status
Photos
Power
ChemLink
1
ChemLink
2
Thu January 1, 2009 3:03 PM
14.2 To Confi gure the ORP Controller
From the CHEMLINK setup screen, highlight the ORP/
pH SETUP item and then touch SELECT to display the
CHEMLINK ORP/pH setup screen.
ChemLink
Ho
m
e
Menu OneTouch Help Back Status
Photos
Power
Thu January 1, 2009 3:03 PM
ORP 650
pH 7.5
ORP/pH Setup
ORP Manual Feed
pH Manual Feed
Level Switch
Select
ChemLink 1
By default, the ORP configuration screen will appear as
shown below. Use this screen as follows:
▪ Touch ORP to confi gure the ORP controller (default).
▪ Touch pH to confi gure the pH controller.
▪ Use PAGE UP/DOWN to see additional items.
▪ Highlight item to be confi gured.
▪ Use the UP/DOWN arrows to adjust values.
▪ Touch SAVE when fi nished.
NOTE Make sure you touch the SAVE button when
finished. Otherwise, your new setting will be
lost.
ChemLink
H
o
m
e
Menu OneTouch Help Back Status
Photos
Power
ChemLink 1 ORP Status
Feeder LIQUID
Feed TM 15 SEC
Delay OT 45 Min
Set Point 7.0
High Alert 8.0
Adjust
Page
Down
Page
Up
Save
Orp
pH
Thu January 1, 2009 3:03 PM
