9.10 Two Speed Operation (*Not

Available for Export Models*)

NOTE This equipment may not be part of your system.

Please check with your installer.

- Optional TWO SPEED RELAY required.

9.10.1 Two Speed Manual Operation

• For Pool and Spa Combination Units

If your control is a Pool and Spa combination with

a 2-speed ﬁ ltration pump, the control will operate as

follows: High Speed (Filter Pump) must be on before

Low Speed. Filter pump button, as well as the Spa

button, turns it to High Speed. Low Speed (AUX 2)

button toggles back and forth from low to high.

• For Pool or Spa Only Units

To use HIGH/LOW Speeds, Filter Pump turns on HIGH

SPEED, AUX 2 turns on LOW SPEED. Whatever mode

last used is the OFF button. To toggle, touch whichever

speed is not on.

• For Dual Equipment Units

AquaLink RS 2/6 operates the same as the Pool/Spa

Only units; i.e., Filter Pump turns on HIGH SPEED and

AUX 2 turns on LOW SPEED. The mode last used is

the OFF button. To toggle, touch whichever speed is not

on. 2-speed works only on spa ﬁ lter pump.

• Two Speed Programming for All Units

When programming HIGH and LOW Speeds to operate

together, think of HIGH SPEED (Filter Pump) as total

duration of ﬁ ltration time, then set Low Speed (AUX 2)

to operate within that duration. For example, if you want

High Speed on for 2 hours and Low Speed for 10 hours,

program the Filter Pump (High Speed) from 8 AM to 8

PM and Low Speed from 10 AM to 8 PM.

NOTE It is not necessary to program both HIGH

and LOW Speeds, even with a combo control

system. If only LOW SPEED is programmed,

HIGH SPEED will turn on at the LOW SPEED

on time to prime the pump. After three (3)

minutes the system will switch to LOW SPEED

for the remainder of its programmed time.

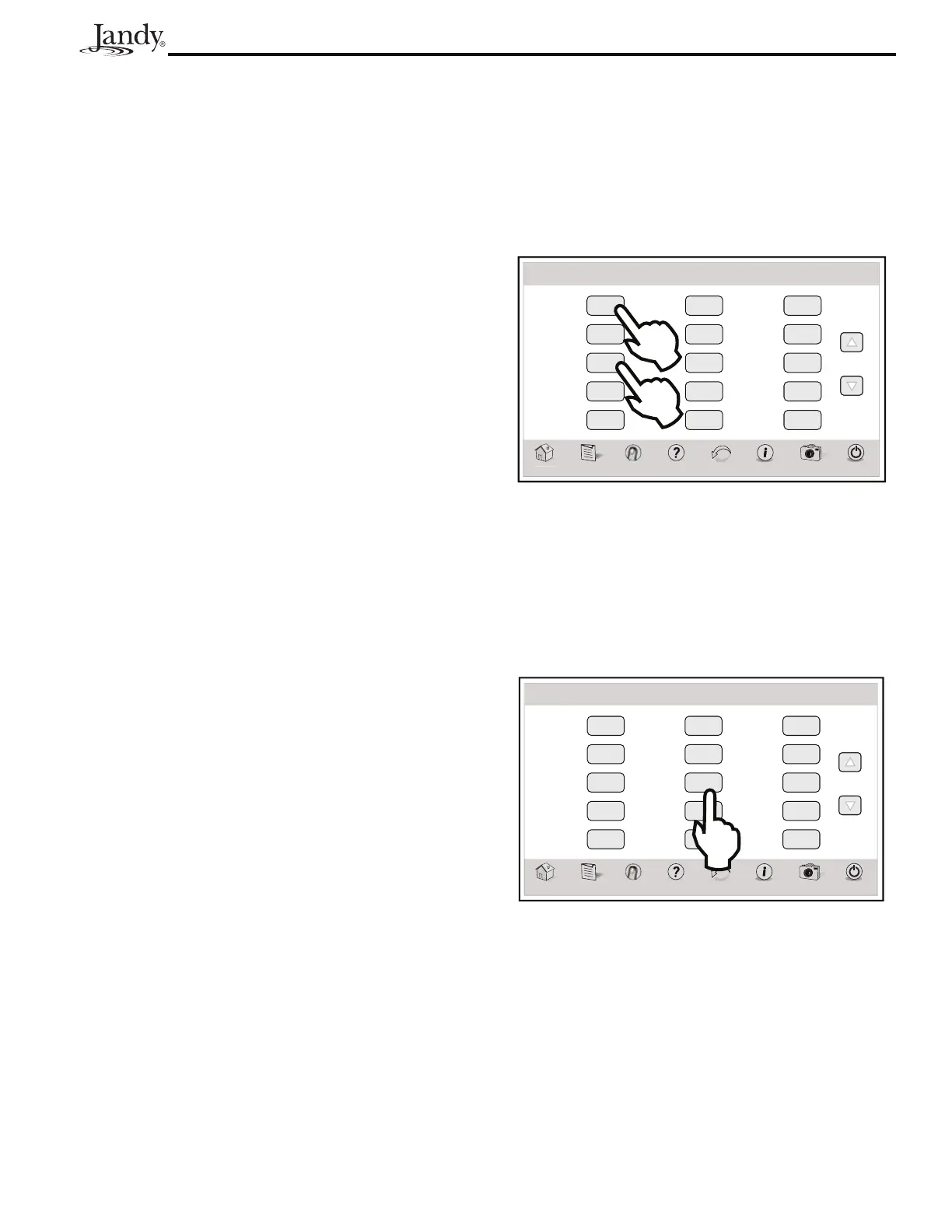

9.10.2 High Speed Filtration Pump

HOME > OTHER DEVICES ON / OFF > FILTER PUMP/ SPA

From HOME menu, touch the OTHER DEVICES ON/

OFF button to display the DEVICES screen. Touch the

FILTER PUMP or SPA button to turn the main filtration

pump ON to HIGH SPEED.
